China custom tft 320 x 240 3.5 inch lcd screen

Item3.5 inch 320×240 TFT display module
Model NoPV03516T0154P
Resolution320×240
Outline Dimension76.90*63.90*3.15
Active Area(mm)70.08*52.56
Brightness540nits
InterfaceRGB+SPI Interface
Viewing Angle12 O’clock
Driver ICNV3035GTC
Display ModeTransmissive / Normally Black
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×240 QVGA resolution 540 nits RGB+SPI interface LCD module

1. PV03516T0154P  mainly application for handheld device
2. It with 320×240 resolution , SPI+RGB interface , NV3035GTC Driver IC, 540nits jigh brightness, TN/ 12 O’clock view angle.
3. And it can custom capacitive and  resistive touch panel as customer ‘s requirement;
4. It is A grade product , the good quality well use for Industrial ,medical application .

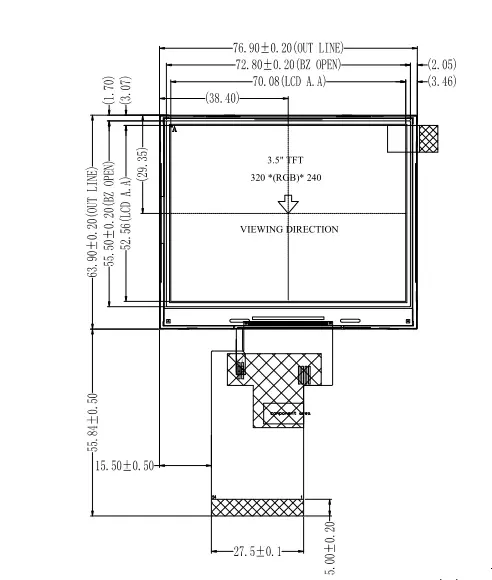

3.5 inch RGB+SIP interface LCD display front view

3.5 inch front

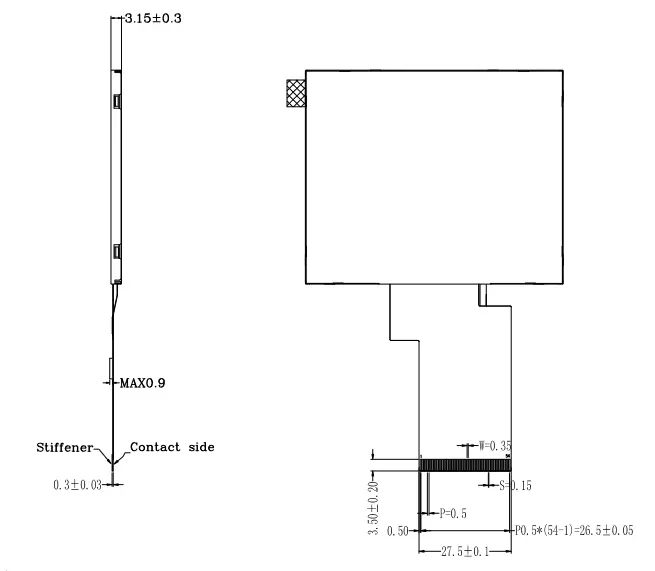

3.5 inch RGB+SIP interface LCD display back view

3.5 inch back
