ILI9341V 3.5″ 240×320 transflective tft display

Item 3.5 inch 240×320 Transflective LCD module
Model NoPV035002YP50E
Resolution 240×320
Outline Dimension 64(W)× 85(H)× 3.0(T)
Active Area(mm)53.64(W)× 71.52(H)
Interface SPI+ 18 BIT RGB Interface
Viewing Angle6 o’clock
Drive ICILI9341V
Display Mode Transmissive / Normally Black
Operating Temperature -20℃~70℃
Storage Temperature -30℃ to +80℃
Brightness180nits
Touch screenCan custom resistive touch and capacitive touch

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 480×640 VGA SPI + RGB interface IPS  transflective LCD module

1. PV035002YP50E mainly application  handheld device , Industrial ,medical equipment.
2. It with 240×320 resolution , TN / 6 O’clock view angle, ILI9341V driver IC , SPI+ 18 BIT RGB interface,150 nits brightness.
3. It also can custom touch panel as customer ‘s requirement .
4. It is Transflective LCD product , the good brightness and color can be  use for out door and indoor .

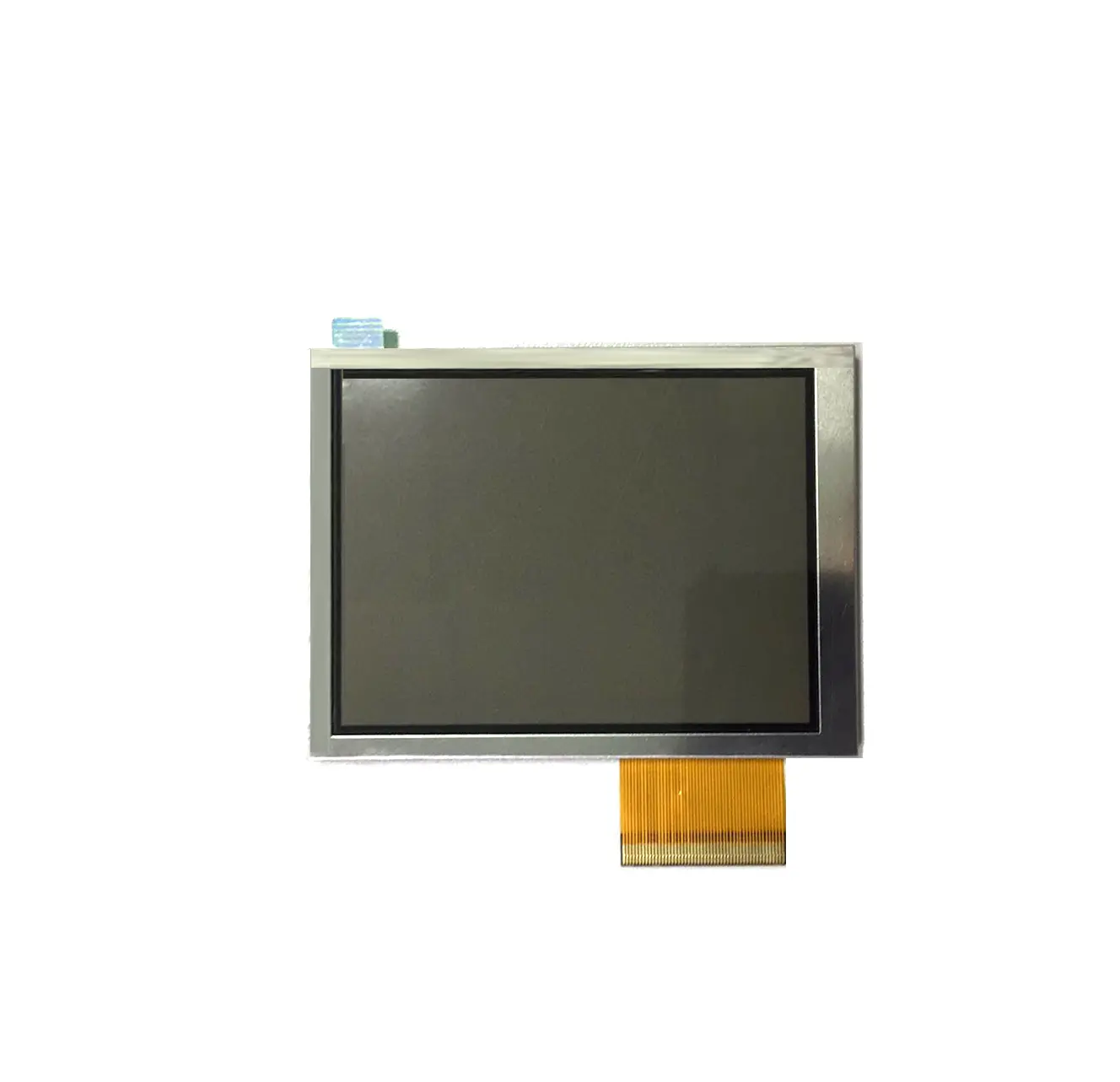

3.5 inch 240×320 LCD module front view

transflective tft display

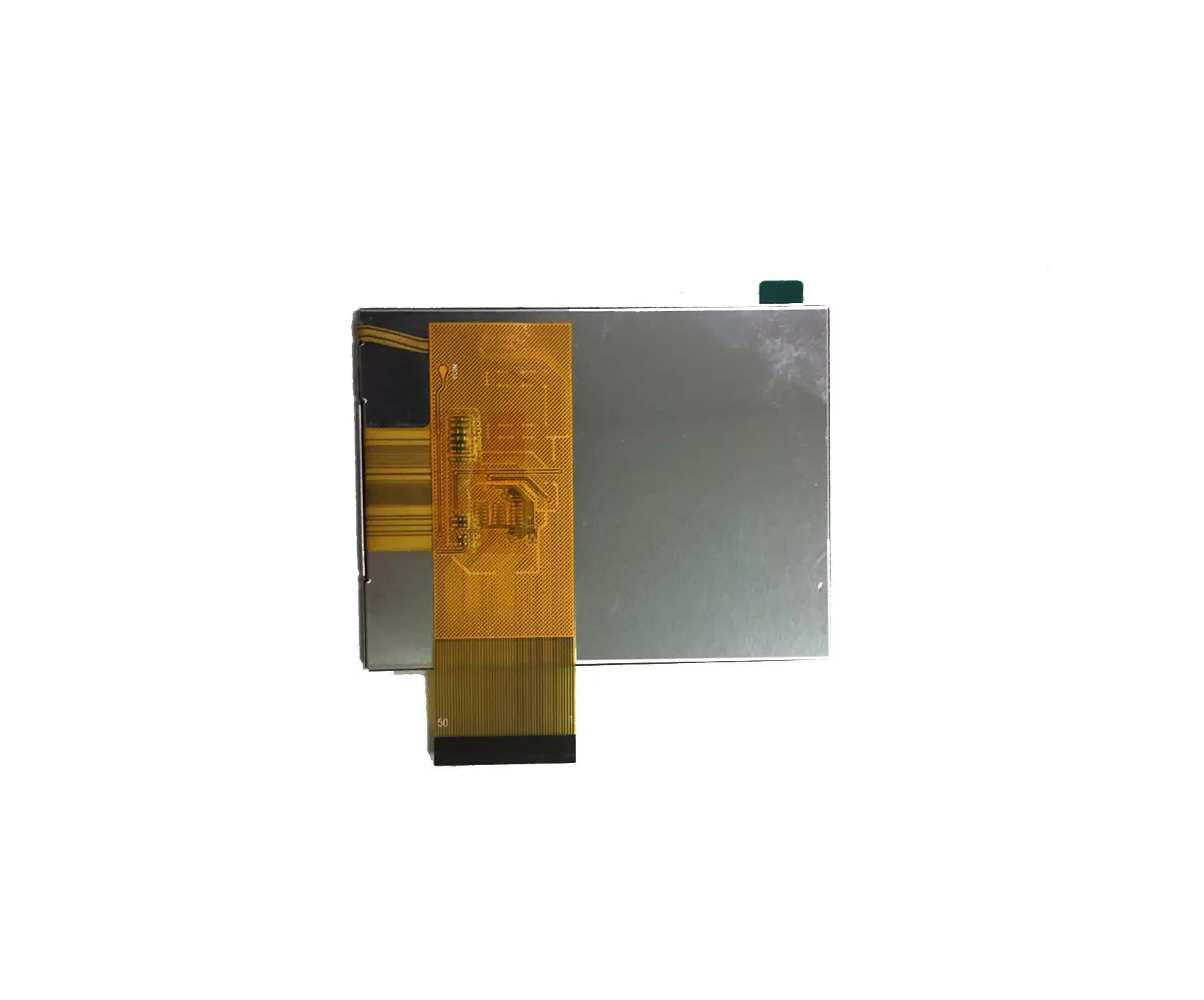

3.5” Transflective display module back view

transflective tft display
