3-line SPI 200 nits ips 1.54 inch ips capacitive tft touch screen

Item1.54inch 240×240 TFT LCD module
Model NoPV15401KLD24D
Resolution240×240
Outline Dimension31.52(H)x33.72(W)x1.85(T)
Active Area(mm)27.72(H)x27.72(W)
Interface3-Line SPI
Viewing AngleALL
Driving ICST7789V
Display ModeTransmissive / Normally Black
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness300nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

1.54 inch 240×240 IPS SPI square small / Tiny TFT LCD display .

1. PV15401KLD24D mainly application for smart watch, smart home,Industrial device and wearable devices
2. It with IPS Full viewing angel , 240×240 resolution , 3-Line SPI interface , ST7789V Driver IC, 300 nits brightness .
3. And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4. The small size popular for smart watch market.

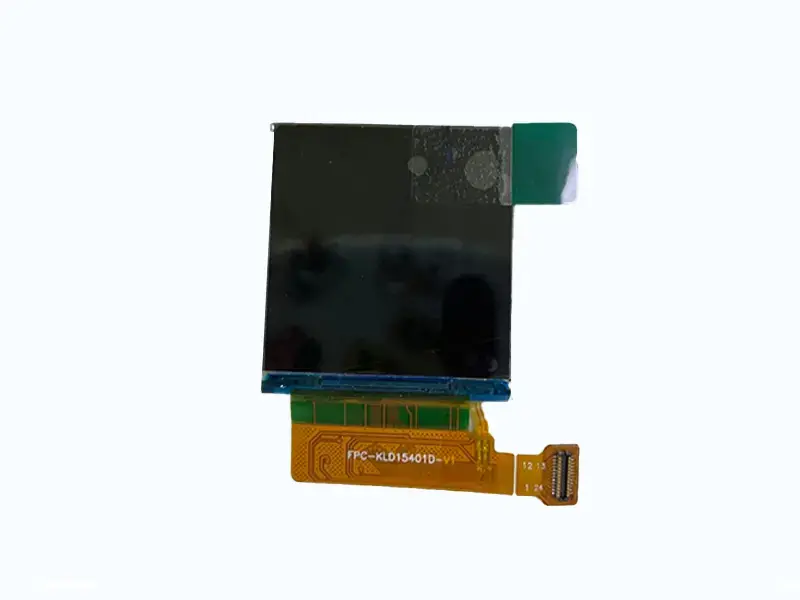

1.54 inch IPS 240×240 square LCD display front view

touch screen,small touch screen

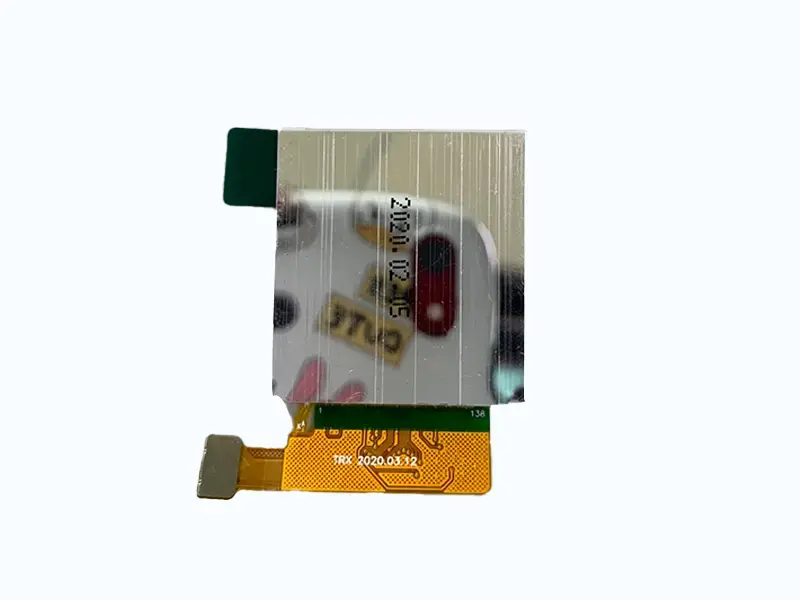

1.54 inch IPS 240×240 square LCD display back view

touch screen

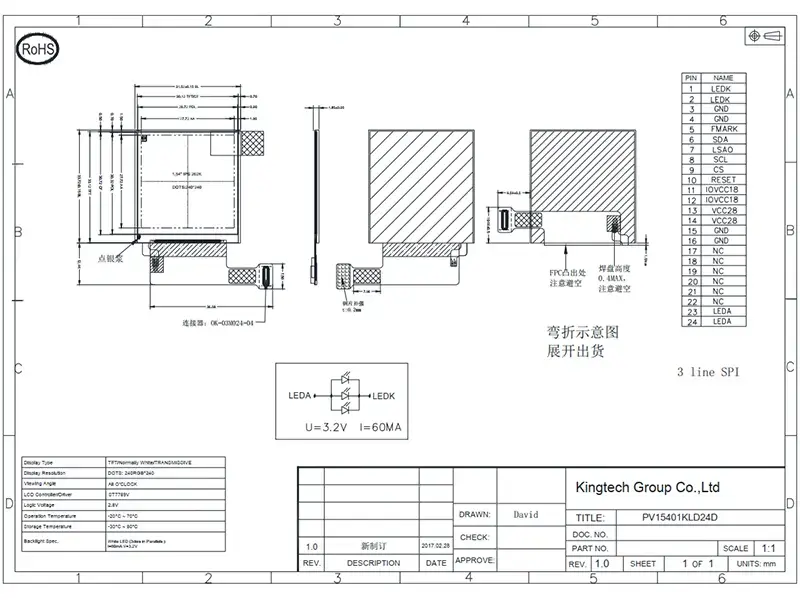

1.54 inch SPI interface TFT LCD display Machine Drawing

PV15401KLD24D

New Tab content 3

PV015400KLD24C_V03
