380 nits FULL HD ips 5 inch tft lcd display module

Item 5 inch ips 1080×1920 display
Model No PV050FH-TONB4001
Resolution 1080×1920
Outline Dimension 63.68(W)*116(H)*0.66(T)
Active Area(mm) 61.52(W)*109.36(H)
Interface MIPI
Viewing Angle All
Brightness 380nits
Driving IC RM67198
Display Mode OLED / Normally Black
Operating Temperature -20℃ to +60℃
Storage Temperature -30℃ to +80℃
Touch screen Capactive touch panel

For product pricing,customization,or other inquiries:

Share to:

5 inch 1080×1920 High Resolution IPS MIPI AMOLED display .

1. PV050FH-TONB4001 mainly application for Smart Home Industrial ,medical equipment .
2. It with IPS free viewing angel , Super Thin  0.66mm, 1080×1920 High Resolution , 430 nits brightness, MIPI interface , existing capacitive touch .
3. And it can custom HDMI board to support Raspberry PI;
4. AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super power saving of … power. It can be well used for both indoor and outdoor.

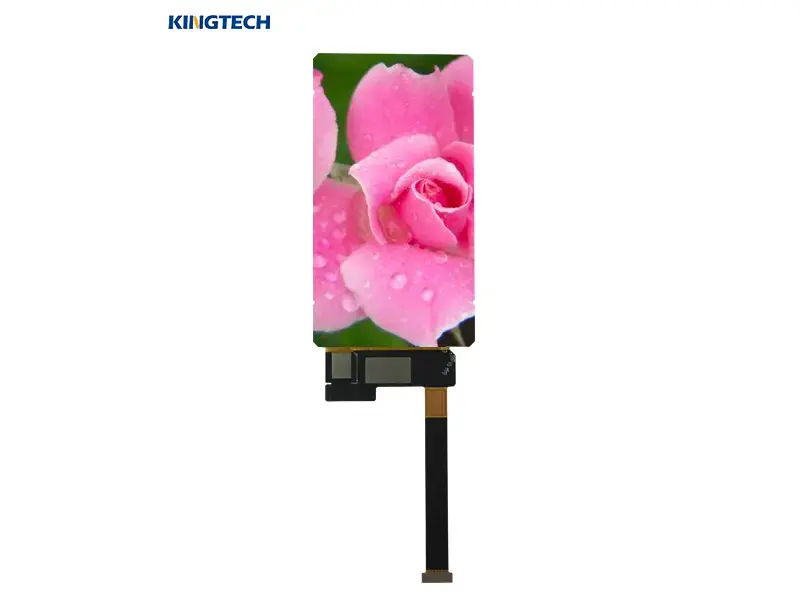

5 inch 1080X1920 MIPI interface portrait screen front view

5 inch tft lcd

5 inch tft lcd5 inch tft lcd

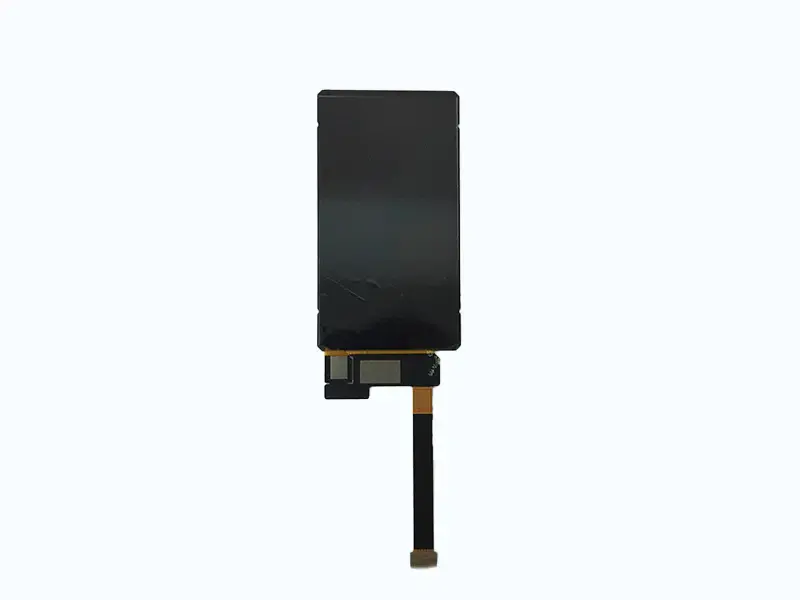

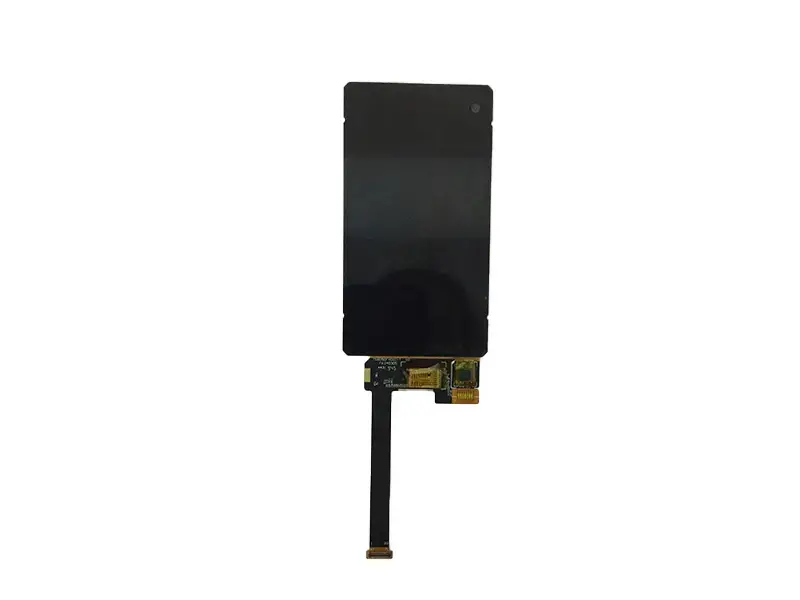

5 inch 1080X1920 MIPI interface portrait screen back view

5 inch tft lcd

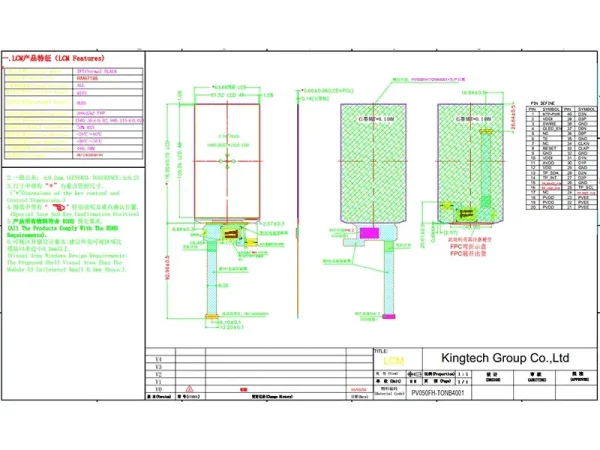

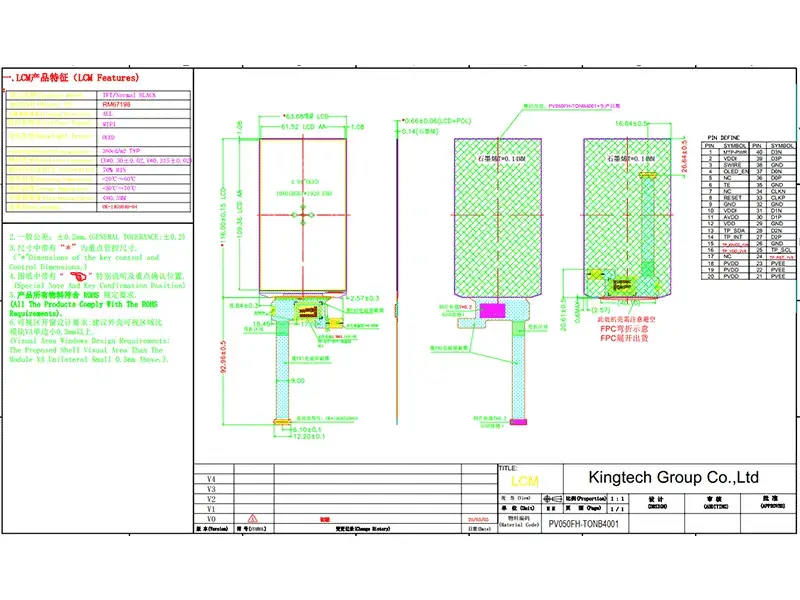

5 inch 1080X1920 MIPI interface portrait screen Machine Drawing5.0-PV050FH-TONB4001

New Tab content 3

5.0-PV050FH-TONB4001
