Item | 4.3 inch 480X272 RGB interface lcd module |
Model No | PV04301YP40B-R |
Resolution | 480×272 |
Outline Dimension | 105.50*67.20*4.20 |
Active Area(mm) | 95.04*53.86 |
Interface | 24 BITS RGB Interface |
Viewing Angle | 6 O’Clock |
LED life | 30000h |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -20℃ to +70℃ |
Storage Temperature | -30℃ to +80℃ |
Brightness | 360nits |
Touch screen | Resistive touch screen |
4.3 inch 480×272 resolution RGB interface 360nits brightness lcd display with resistive touch
1. PV04301YP40B-R mainly application for Industrial ,medical equipment .
2. It with 480×272 resolution , 360nit brightness , 24 BITS RGB interface existing resistive touch and capacitive touch.
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

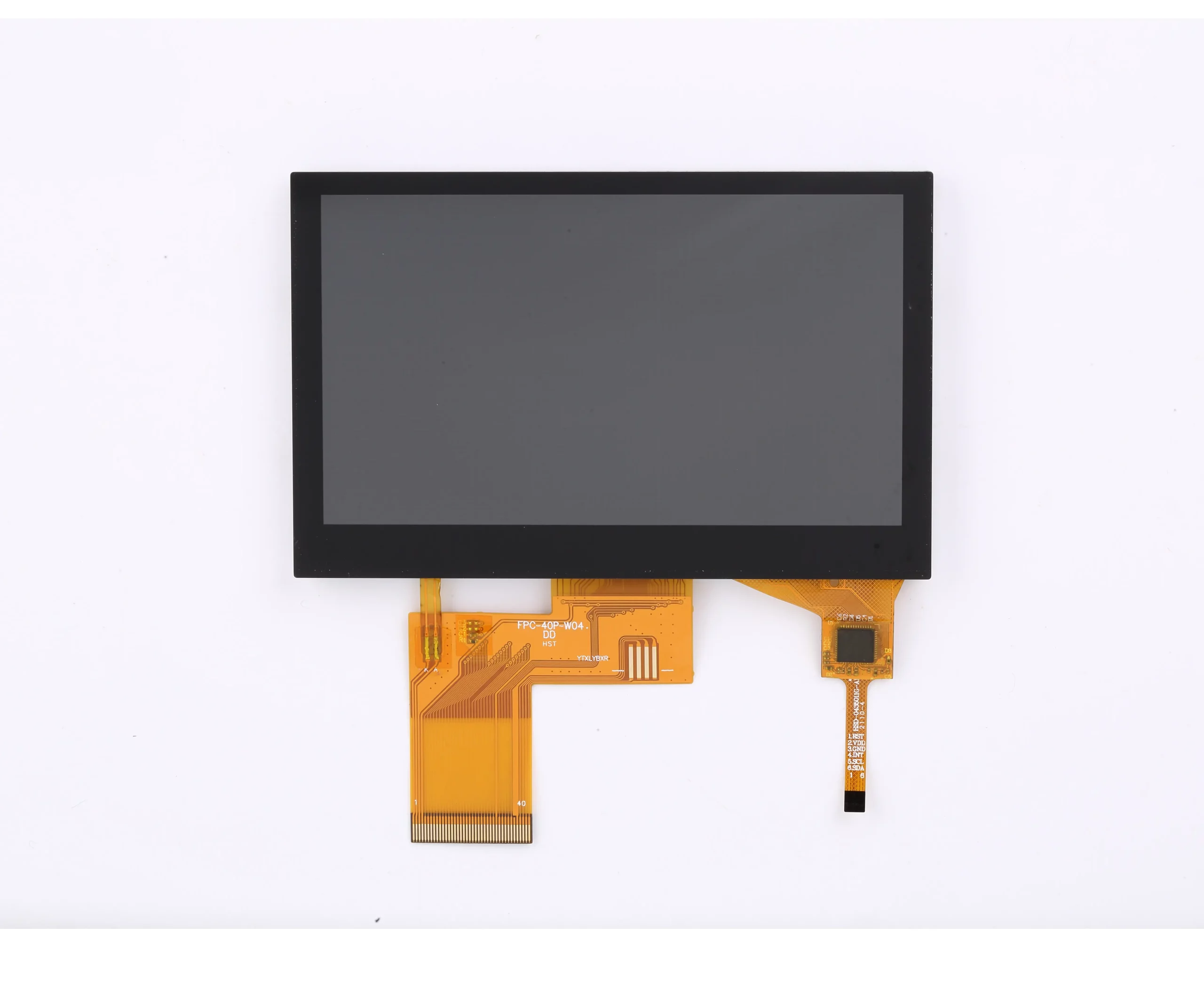

4.3” TFT with resistive touch front view

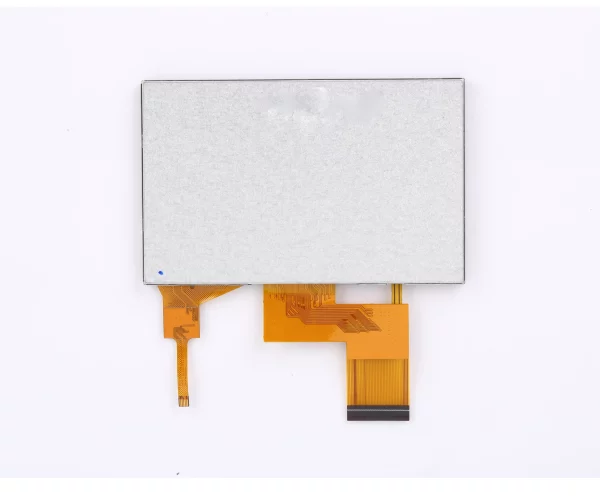

4.3” TFT with resistive touch back view
