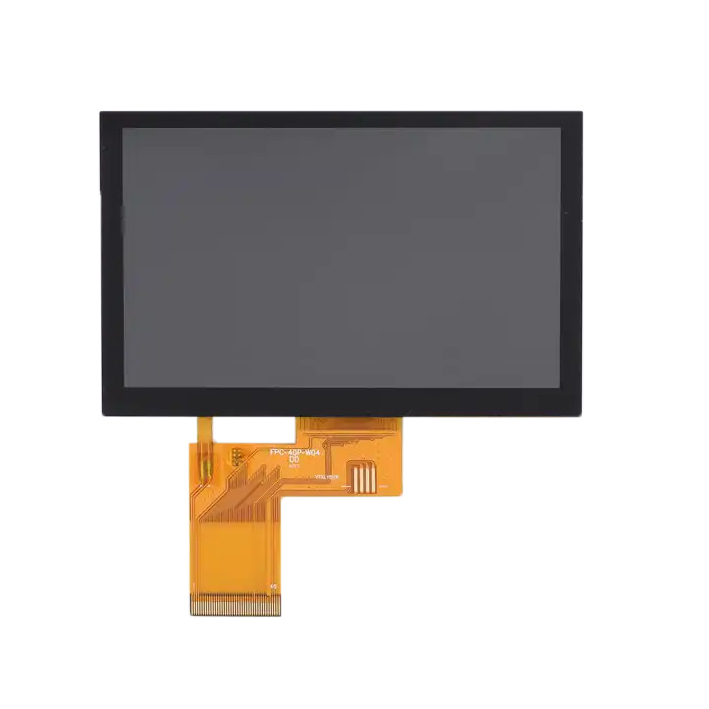

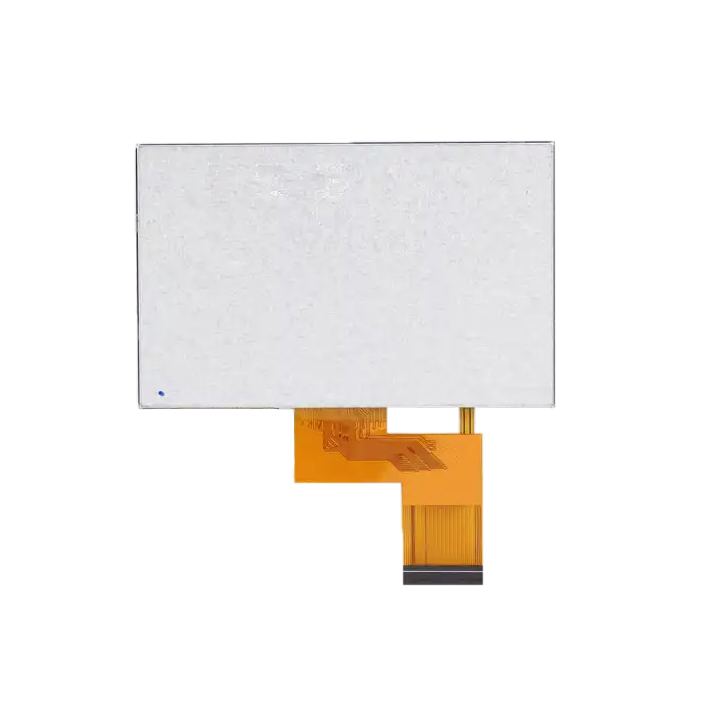

4.3 inch 480*272 TFT module display

Item4.3 inch IPS 480*272 TFT display
Model No.PV043031Y0140B
Resolution480*272

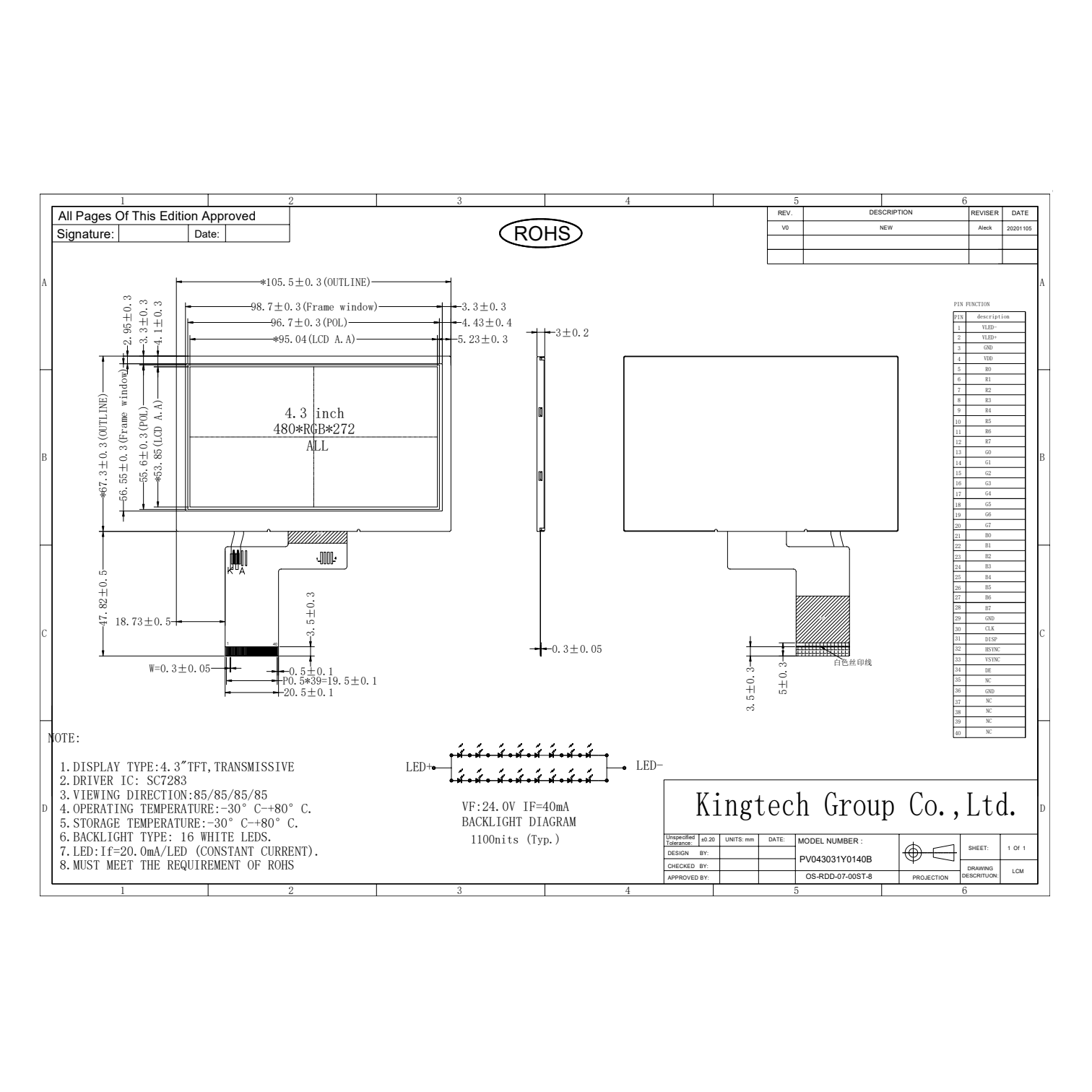

Outline Dimension (mm)105.5*67.3*3
Active Area (mm)95.04*53.86
Viewing AngleAll
Brightness1100nits
InterfaceRGB
Backlight8*2LED
Driving ICSC7283
PIN No.40
Operating Temperature-30~80C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationE-Bike,Medical, hand-held device, industrial,

For product pricing,customization,or other inquiries:

Share to:

  1. Stable supply
  2. WQVGA resolution
  3. 1100nits brightness/Sunlight readable/High brightness/Outdoor
  4. -30~80C / Wide working temperature
  5. Can custom resistive touch and capacitive touch

4.3 inch 480*272 TFT 4.3 inch 480*272 TFT

4.3 inch 480*272 TFT
