Item | 4.3 inch 480*272 TFT display |
Model No | PV043011HZ40L |
Resolution | 480×272 |
Outline Dimension | 105.5 (H)*67.2(V)*2.95(T) |
Active Area(mm) | 95.04*53.86 |
Interface | RGB 24 bits |
Viewing Angle | 12 O’Clock |
Driving IC | ST7282 |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Touch screen | Resistive and capacitive touch screen |

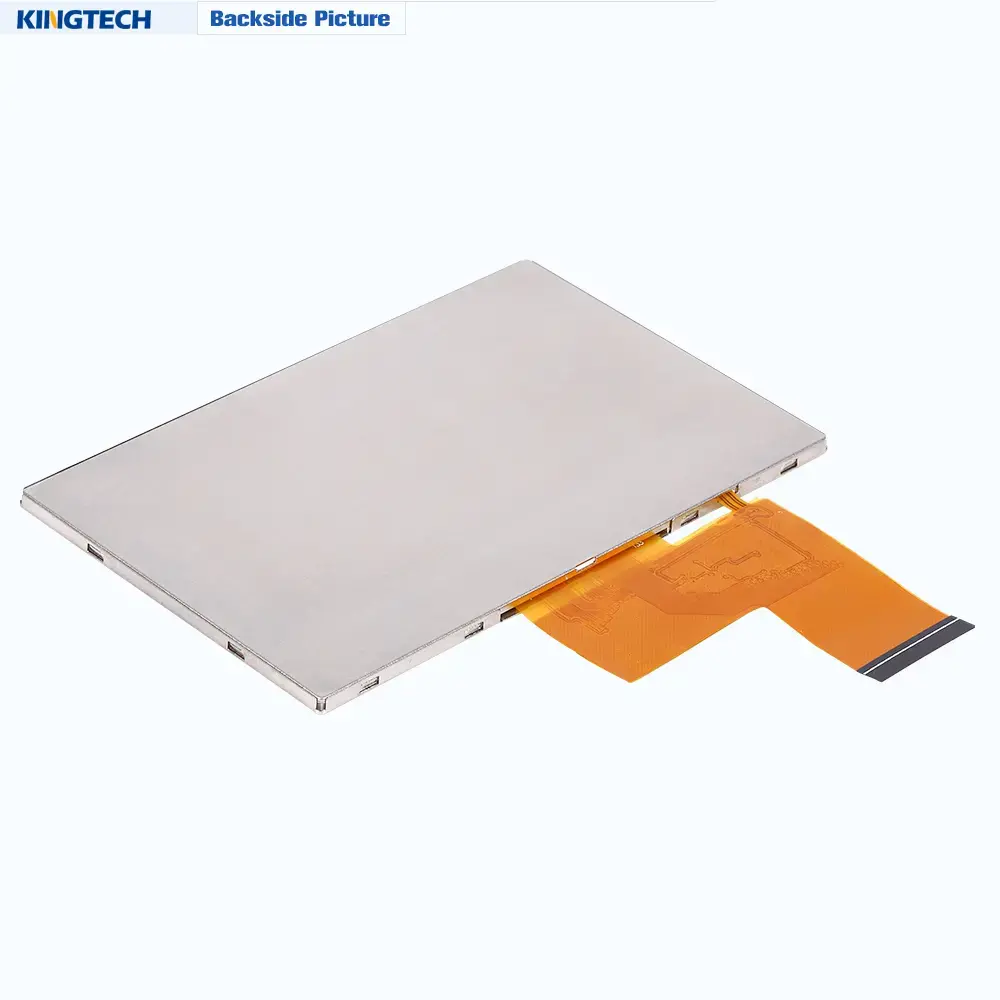

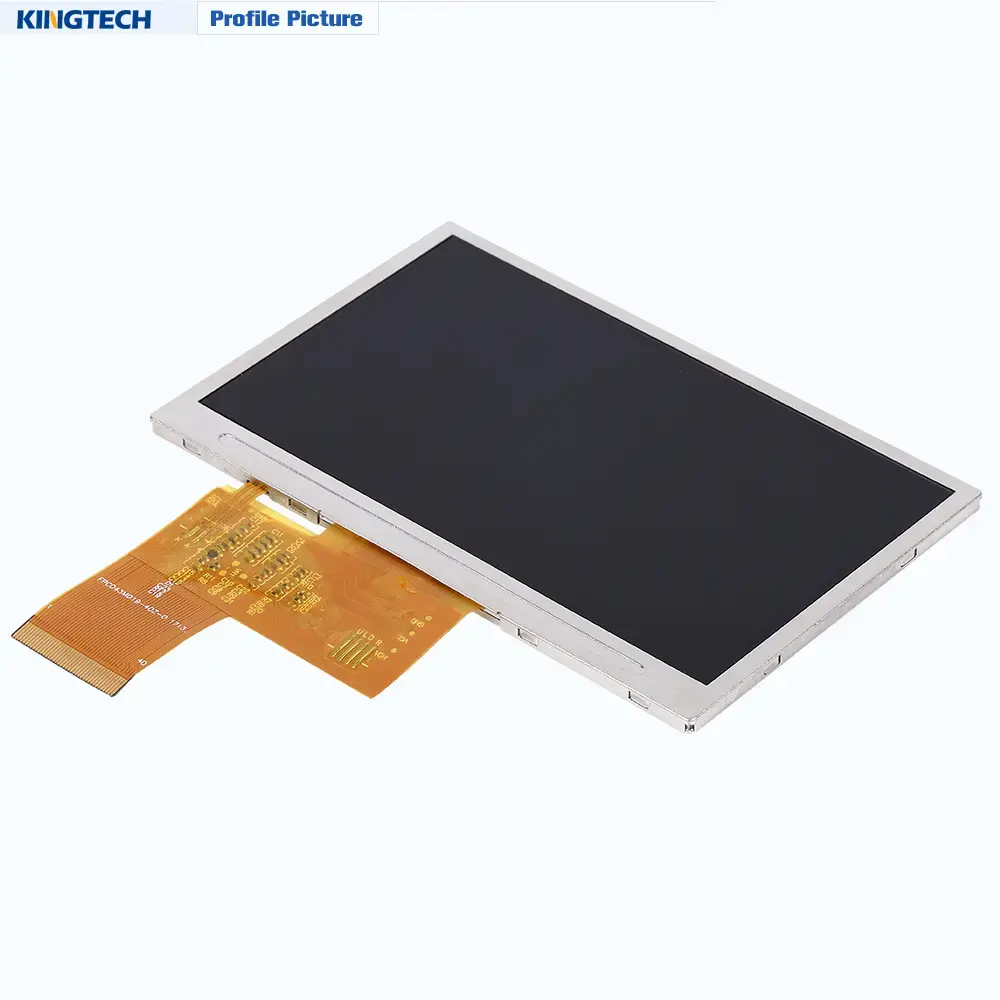

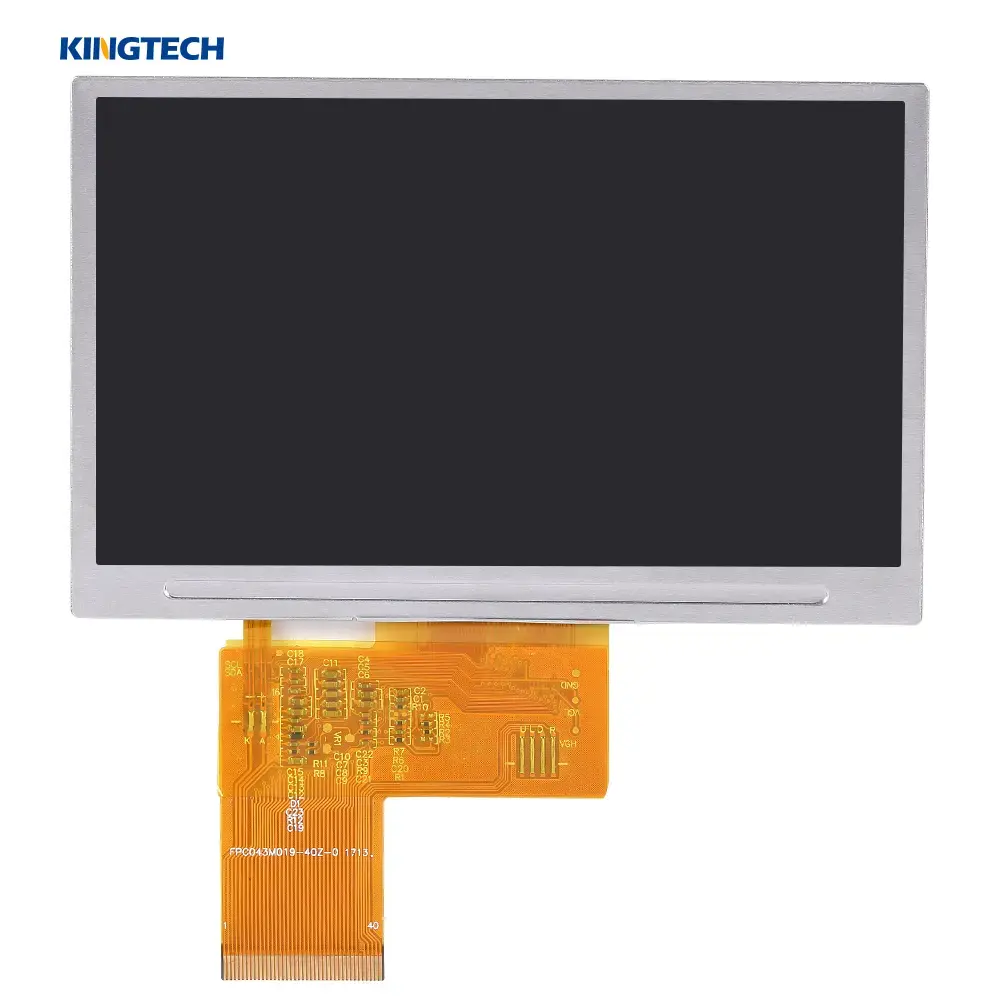

4.3 inch 480×272 resolution RGB interface 600nits brightness lcd display
1.PV043011HZ40L mainly application for Industrial ,medical equipment, smart home and etc
2.It with 480×272 resolution , 600nit brightness ,RGB interface , ST7282 driver IC , existing capacitive and resistive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .
