4.3 inch 800×480 RGB interface all view LCD panel

Item 4.3 inch 800×480 RGB interface lcd module
Model NoPV043015HZ40Q
Resolution 800×480
Outline Dimension 95.05*53.86
Active Area(mm)216.96(W) x 135.60(H)
Interface RGB Interface
Viewing AngleAll
Driver ICST7262
Display Mode Transmissive / Normally Black
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Brightness250nits
Touch screenCan custom capacitive/resistive touchscreen

For product pricing,customization,or other inquiries:

Share to:

4.3 inch all view 800×480 resolution RGB interface TFT lcd display

1. PV043015HZ40Q mainly application for  Industrial ,medical equipment .
2.It with 800×480 resolution , 250nit brightness , 24 bit RGB interface , ST7282 driver IC , IPS/ all/ wide/ free view angle.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

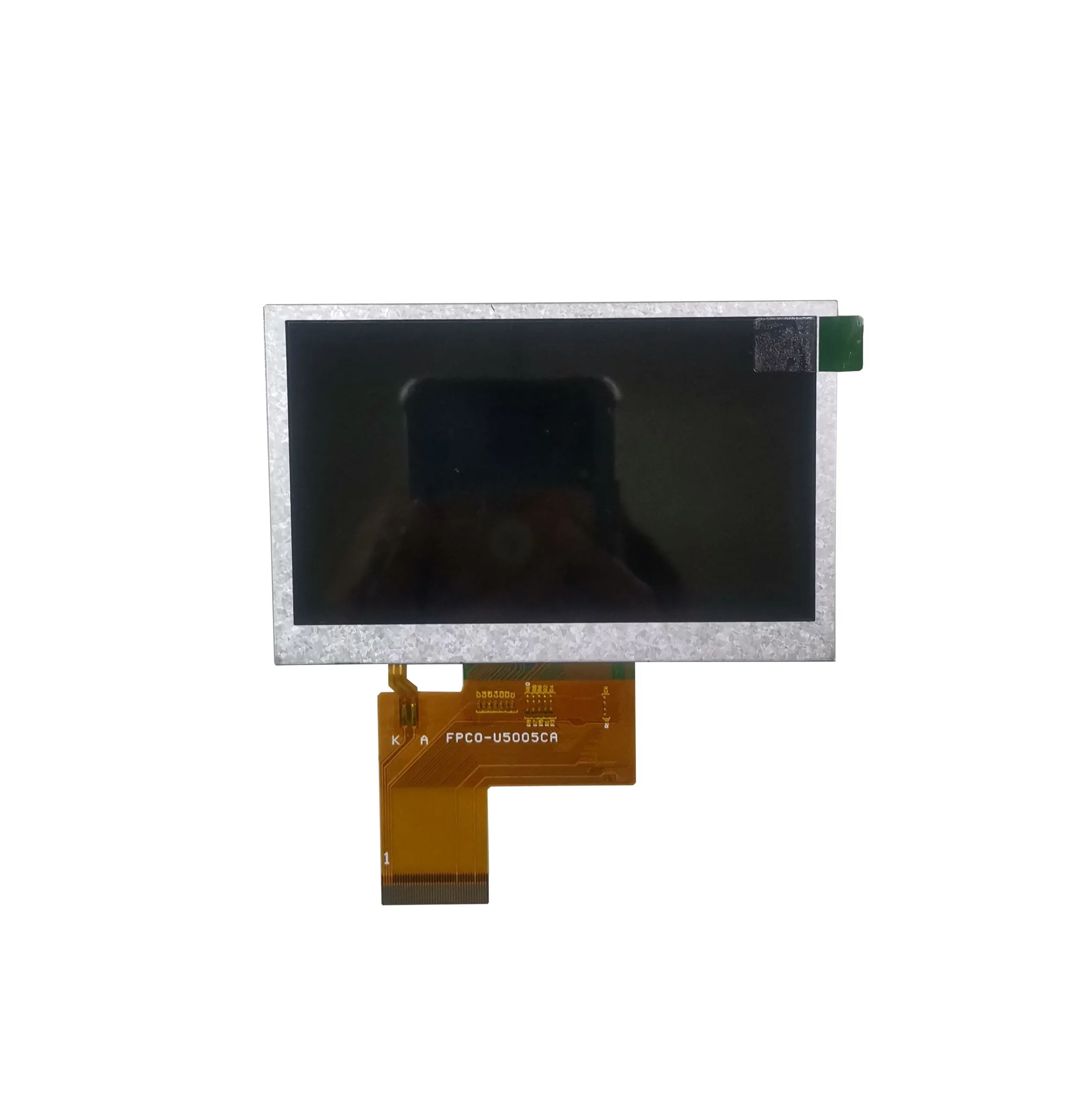

4.3” 800×480 TFT LCD front view

PV043015HZ40Qfront

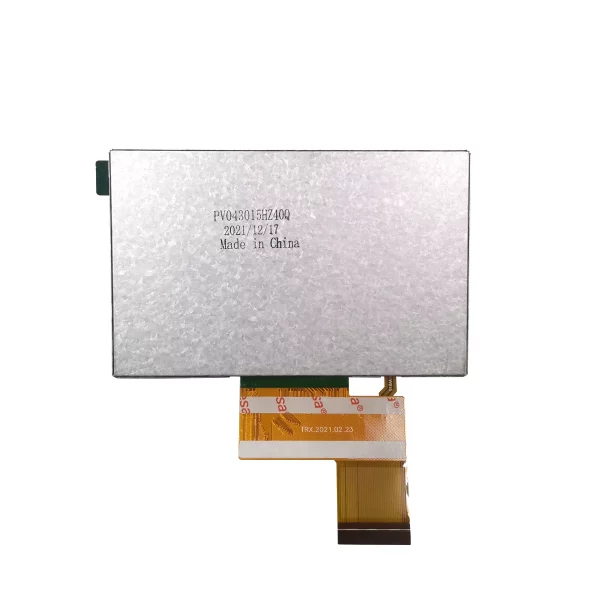

4.3” 800×480 IPS LCD back view

PV043015HZ40Q back
