40 pin 720×720 lcd screen tft monitor 4 inch

Item4.0 inch 720×720 MIPI display module
Model NoDW04002YB30B-C
Resolution720×720
Outline Dimension84.0*84.0*2.6
Active Area(mm)71.93*71.93
InterfaceSPI+RGB,I2C+RGB
Viewing AngleAll
Driver ICYY1821
Display ModeTransmissive / Normally Black
Operating Temperature-30℃ to +80℃
Storage Temperature-30℃ to +80℃
Brightness300nits
Touch screencapacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

4.0 inch 720×720 SPI+RGB infterface IPS 300nits brightness square Transmissive lcd module with capacitive touch scree

1. DW04002YB30B-C mainly application for industrial device , logistics device
2. It with 720×720 resolution , IPS / Free / Full / Wide viewing angle,  300nits brightness, MIPI  interface, YY1821 driver IC, existing capacitive touch.
3. And it can custom the capacitive or resistive touch panel  as customer ‘s requirement .
4. It is the A grade product , with good quality for the industrial application

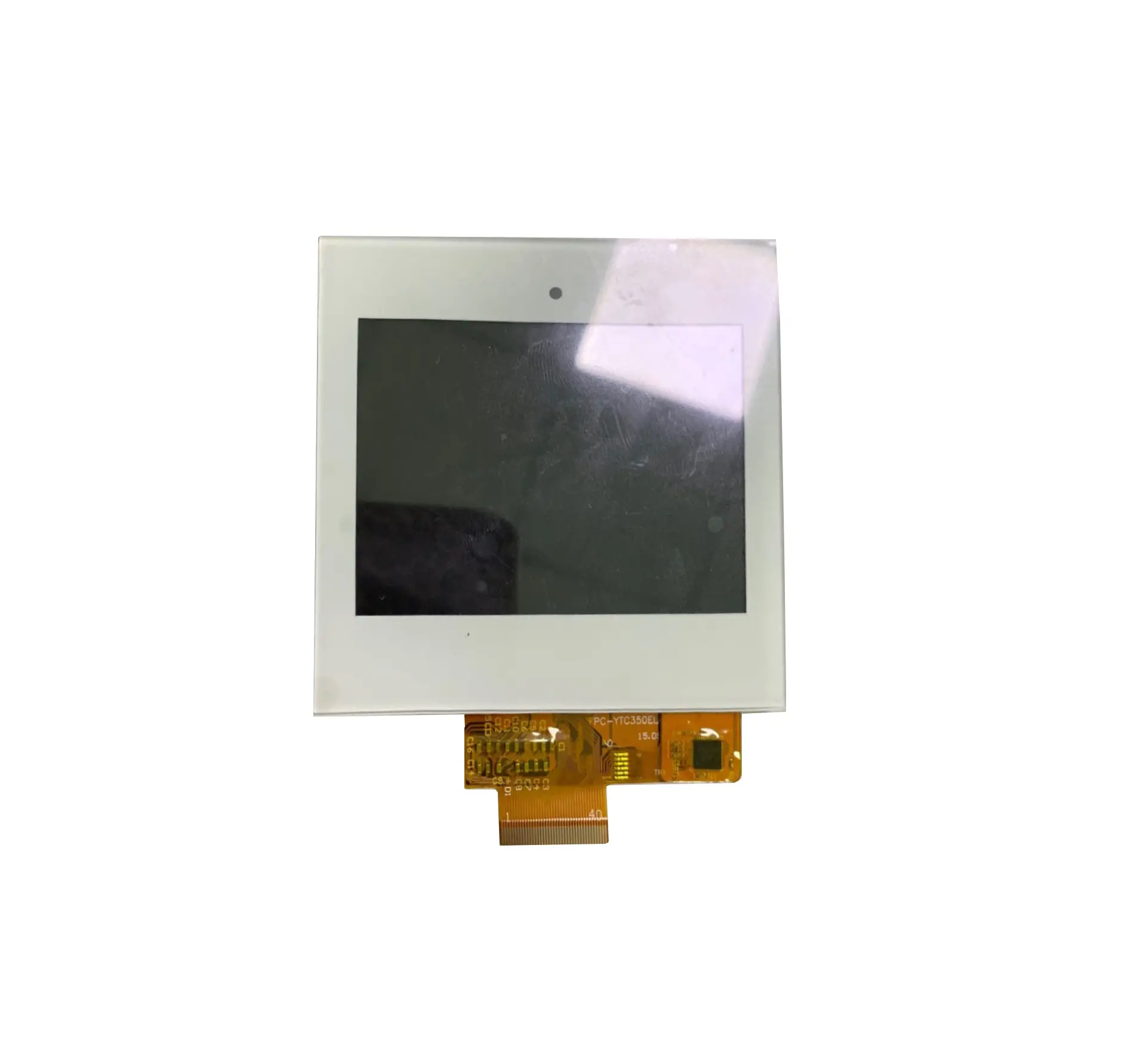

4.0” 720×720 square TFT lcd front view

4 inch front

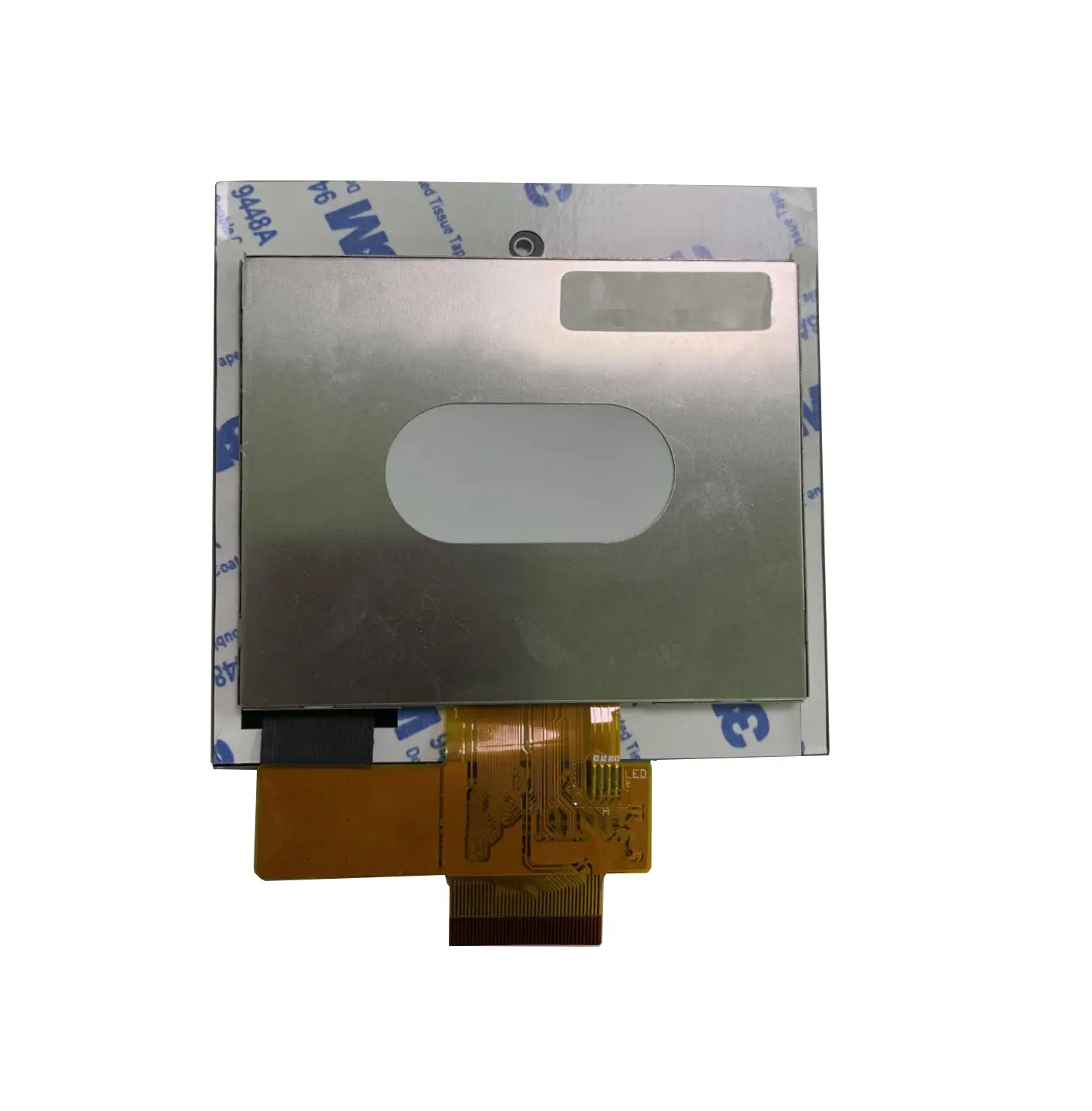

4.0” 720×720 square TFT lcd back view

4 inch back
