Item | 4.3 inch 480X272 RGB interface lcd display |
Model No | PV043013HZ40N |
Resolution | 480×272 |
Outline Dimension | 105.5*67.2*3.0 |
Active Area(mm) | 95.04*53.86 |
Interface | RGB Interface |
Viewing Angle | All |
LED life | 30000h |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -30℃ to +80℃ |
Storage Temperature | -30℃ to +80℃ |
Brightness | 350nits |
Touch screen | Can custom capacitive/resistive touchscreen |
4.3 inch IPS 480×272 resolution RGB interface350nits brightnes LCD isplay
1. PV043013HZ40N mainly application for Industrial ,medical equipment .
2. It with 480×272 resolution , with IPS/ all/ free/ wide view angle, 350 nit high brightness , RGB interface, ST7283 driver IC , existing capacitive touch and resistive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

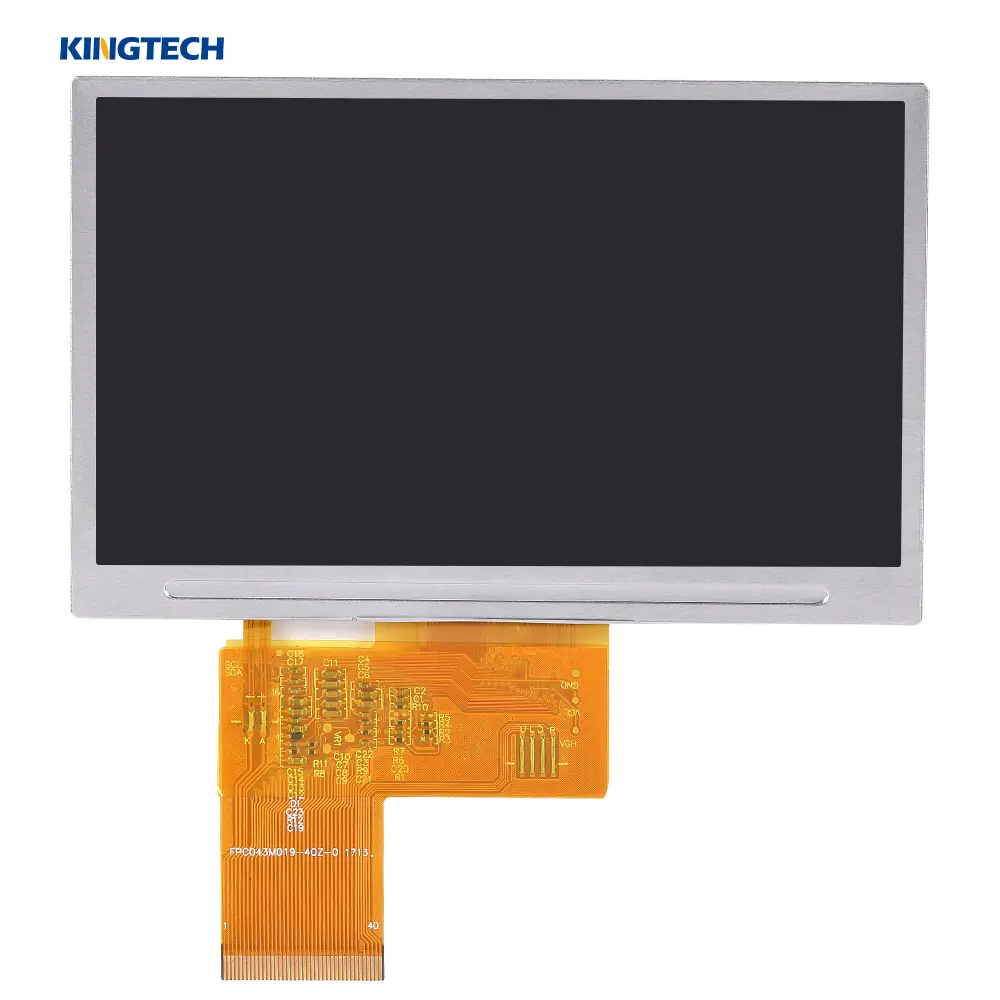

IPS 4.3 inch LCD display front view

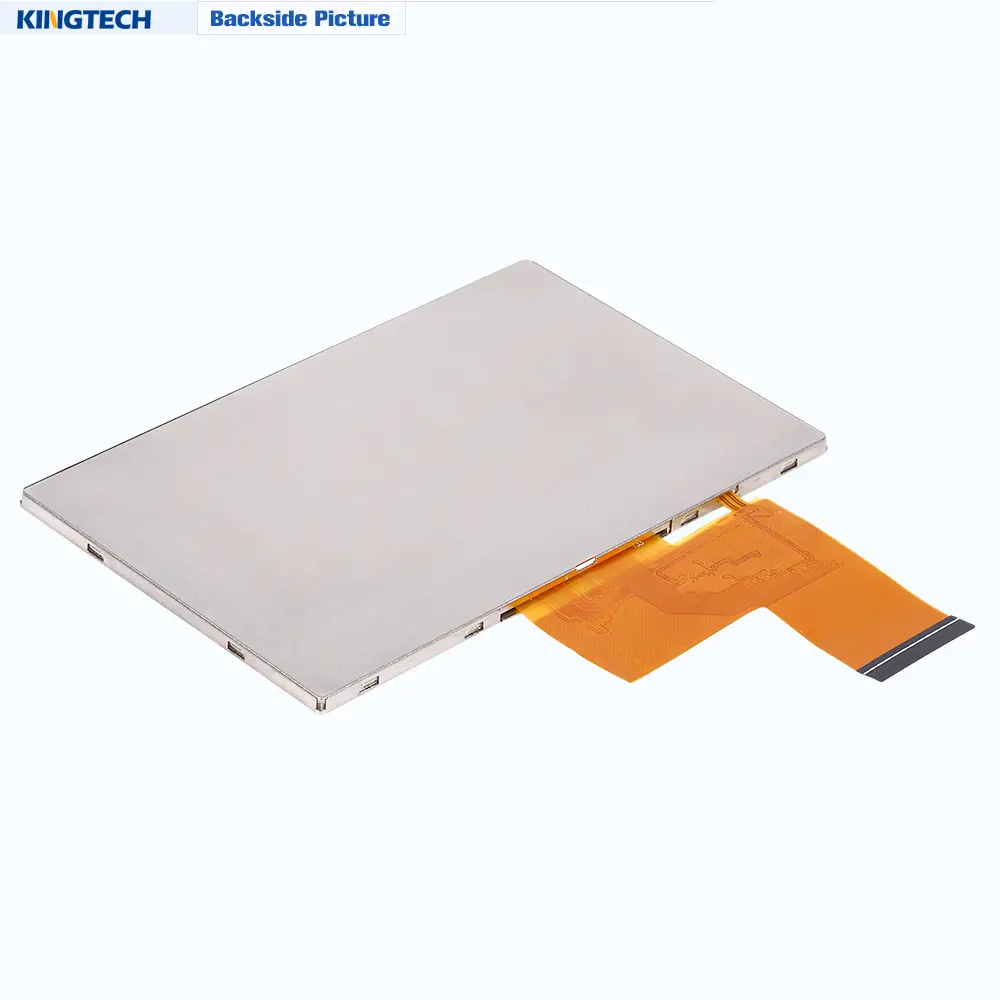

RGB interface 4.3 inch LCD display back view
