ST7701S 480×854 touch screen ips tft display 5 inch

Item5inch 480×854 vertical display
Model NoPV05002TD40C
Resolution480×854
Outline Dimension66.40(W)x120.05(H)x2.06(T)
Active Area(mm)61.56(W)x109.53(H)
Interface3 wire SPI +RGB 24bit
Viewing AngleAll
Driving ICST7701S
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness430nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

3 wire SPI +RGB 24bit 5 inch 480×854 tft lcd display
1.PV05002TD40C mainly application for outdoor device ,Industrial ,medical equipment .
2.It with 480×854 resolution ,IPS viewing angle ,3 wire SPI +RGB 24bit interface , ST7701S driver IC
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product and with wide work temperature feature  , the good quality well use for Electric motorcycles and e-bikes.

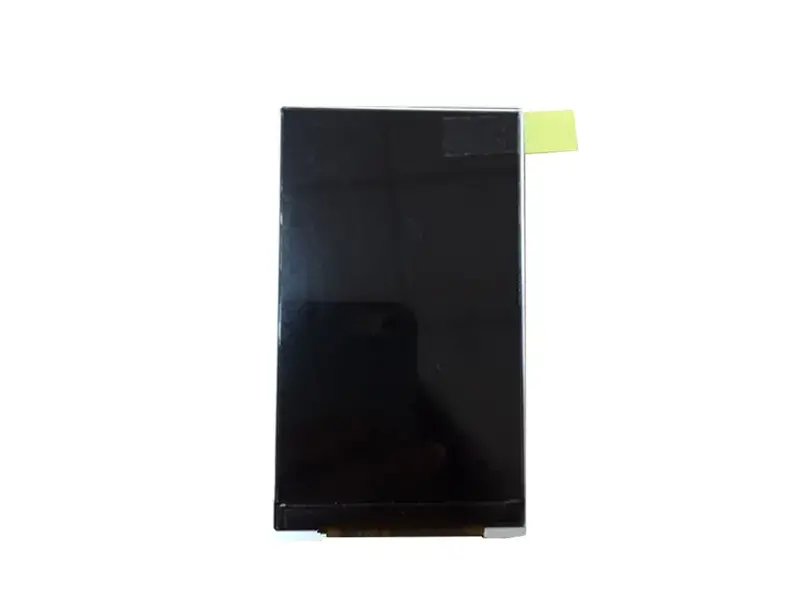

5inch 480×854 vertical display Front view

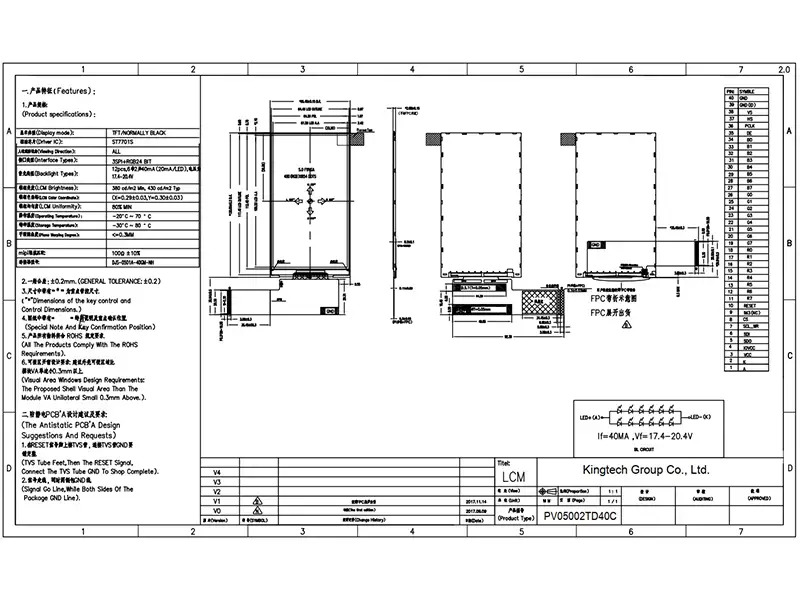

PV05002TD40C
