Item | 5.0 inch 720×1280 lcd module |
Model No | PV05013H0139Q |
Resolution | 720×1280 |
Outline Dimension | 64.70(H ) x118.70(V) x1.68(T) |
Active Area(mm) | 62.10(H) x110.40(V) |
Interface | MIPI Interface |
Viewing Angle | All |
Driver | ILI9881D |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -20℃ to +70℃ |
Storage Temperature | -30℃ to +80℃ |
Brightness | 350nits |
Touch panel | Supprot capacitive touch |
720×1280 resolution 5 inch MIPI interface IPS portrait screen tft lcd display
1 PV05013H0139Q mainly application for outdoor device ,Industrial ,medical equipment .
2.It with 720X1280 resolution , 350nits brightness , MIPI interface , ILI9881D driver IC, IPS / All / Full / Wide viewing angle.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product and with wide work temperature feature , the good quality well use for Electric motorcycles and e-bikes.

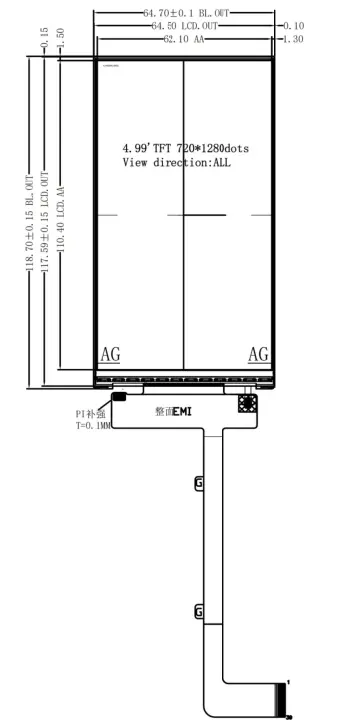

5” TFT LCD dipslay with MIPI interface front view

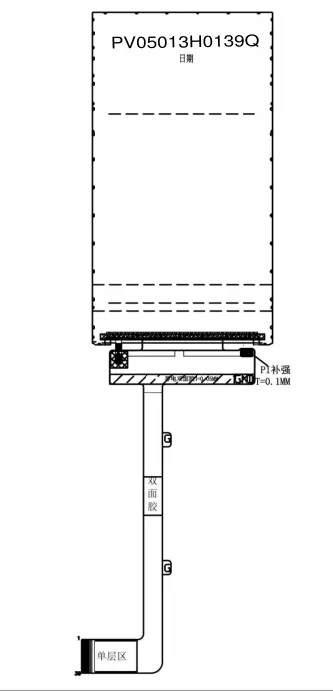

5” MIPI interface TFT LCD dipslay back view
