Item | 5.44 inch 1080*1920 AMOLED display |
Model No | PV544001PY39B |
Resolution | 1080*1920 |
Outline Dimension | 69.74(W)×126.60(H)×0.82(T) MM |
Active Area(mm) | 67.82(W)× 120.58(H)mm |
Interface | MIPI |
Viewing Angle | ALL |
Driving IC | RM67199 |
Display Mode | AMOLED |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 300nits |
Touch screen | Resistive and capacitive touch screen |
5.44 inch 1080×1920 resolution MIPI interface IPS AMOLED display
1.PV544001PY39B mainly application for smart home and handheld device .
2.It with 1080×1920 resolution , MIPI interface , IPS view angle , RM67199 driver IC .
3.And it can custom HDMI board to support Raspberry PI , also can custom the capacitive touch panel as customer ‘s requirement .
4.AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super 5.power saving of … power. It can be well used for both indoor and outdoor .

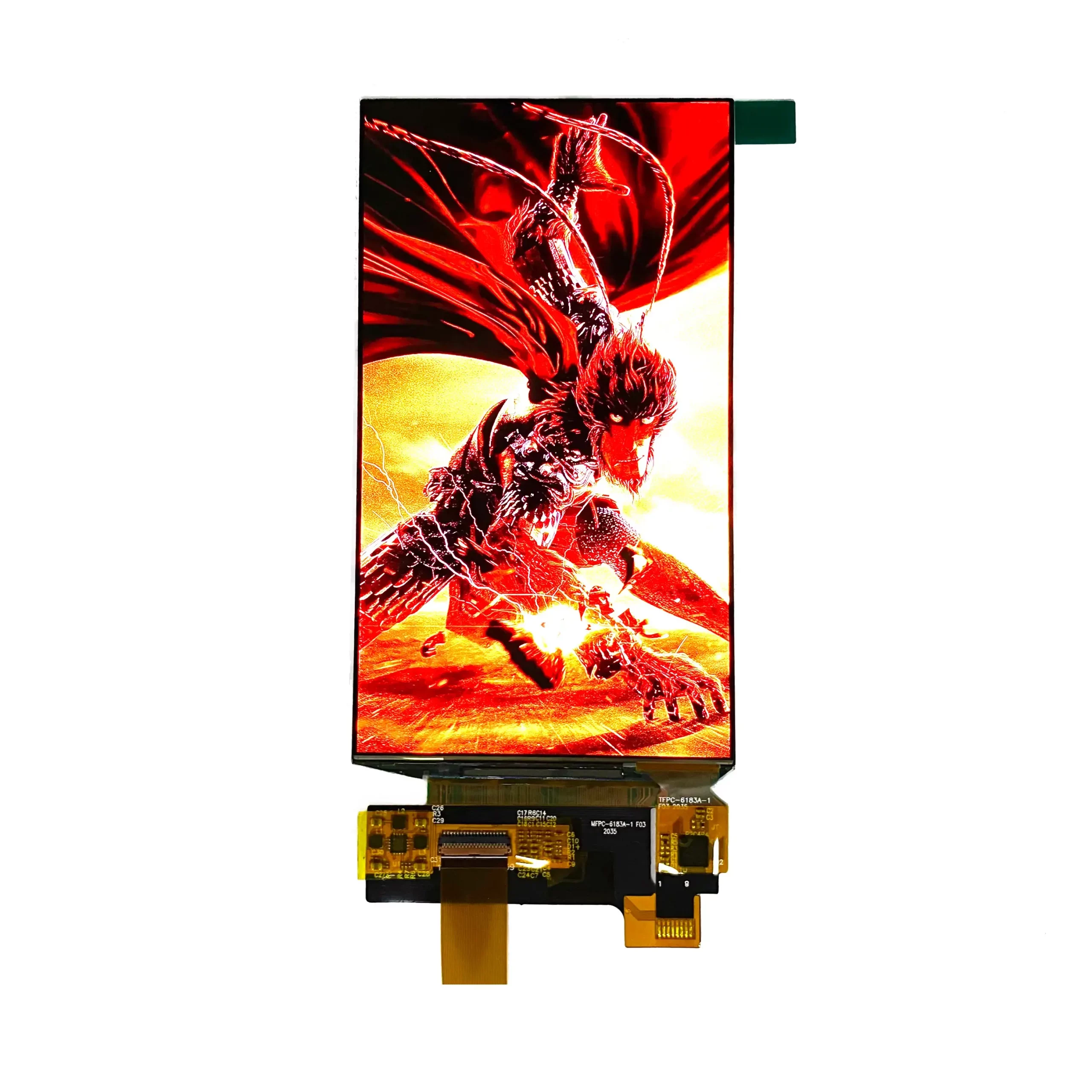

5.44 inch 1080*1920 AMOLED display Front View

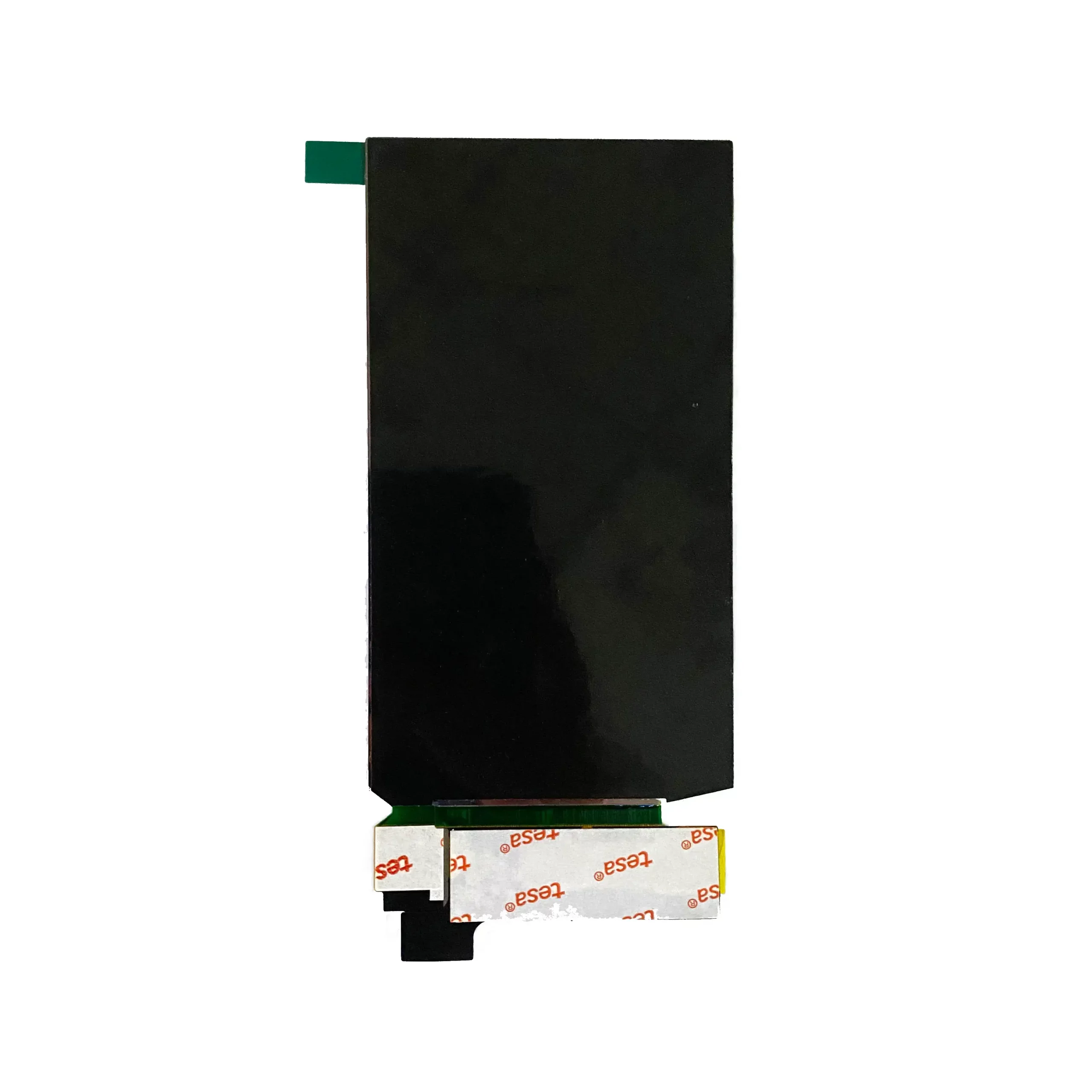

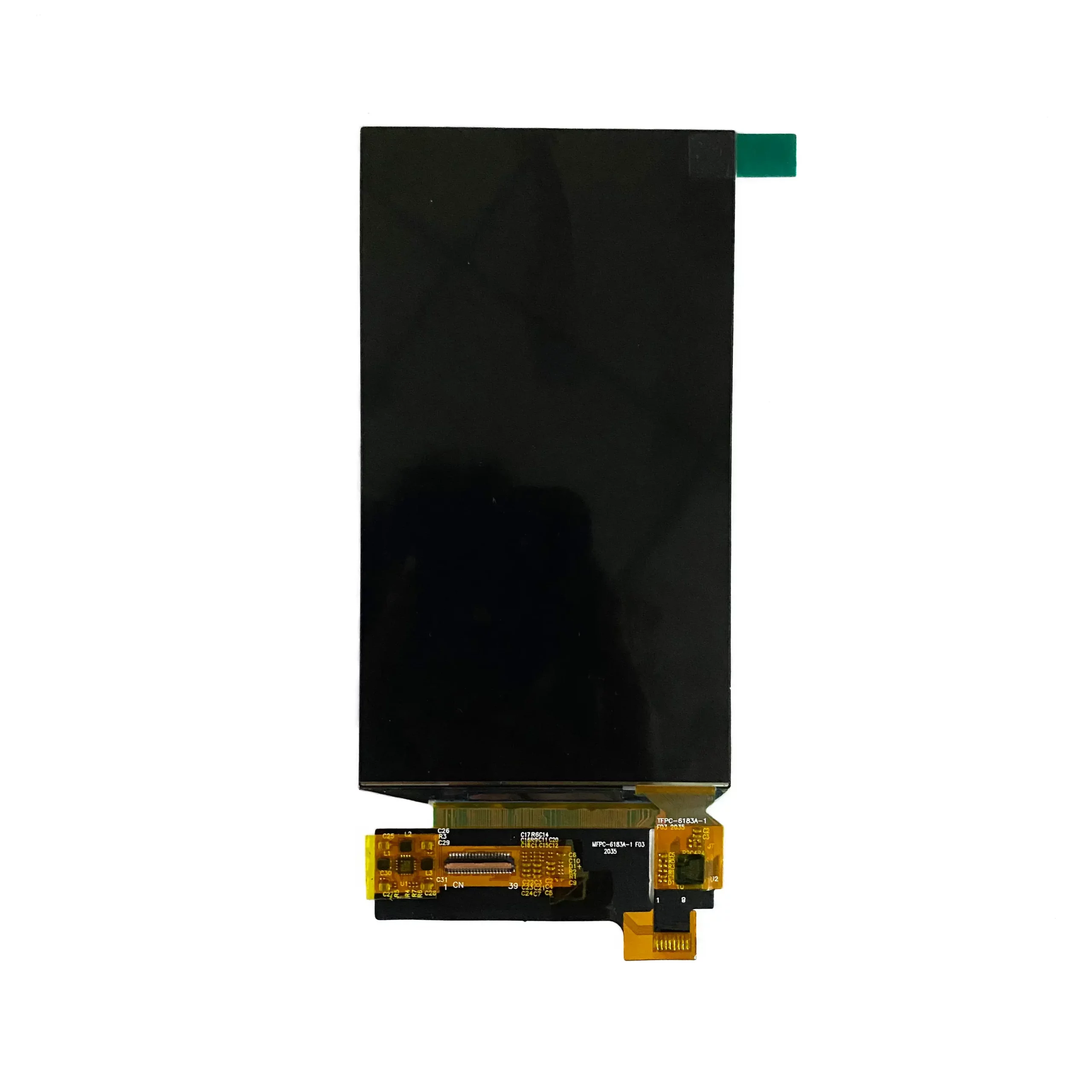

5.44 inch 1080*1920 AMOLED display Back view :

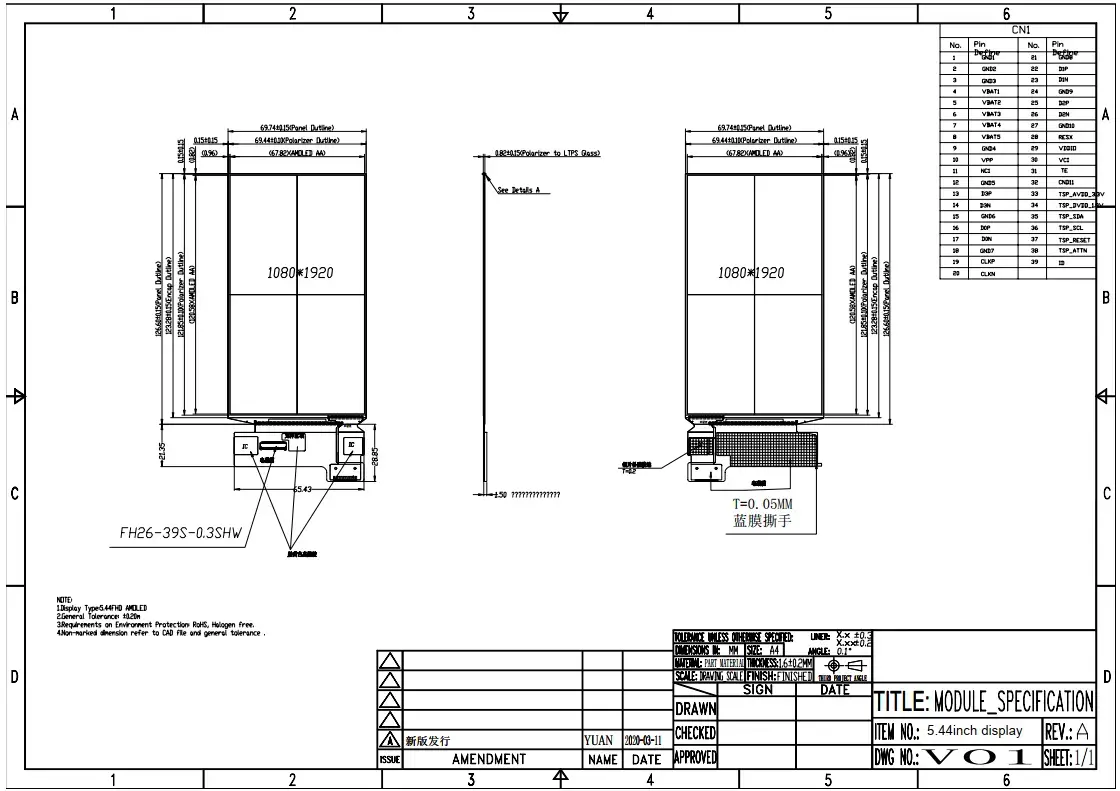

5.44 inch MIPI interface AMOLED display Machine Drawing
