5.7-inch 720*1440 dots TFT LCD module

Item5.7inch 720*1440 LCD Gorilla capacitive touch display

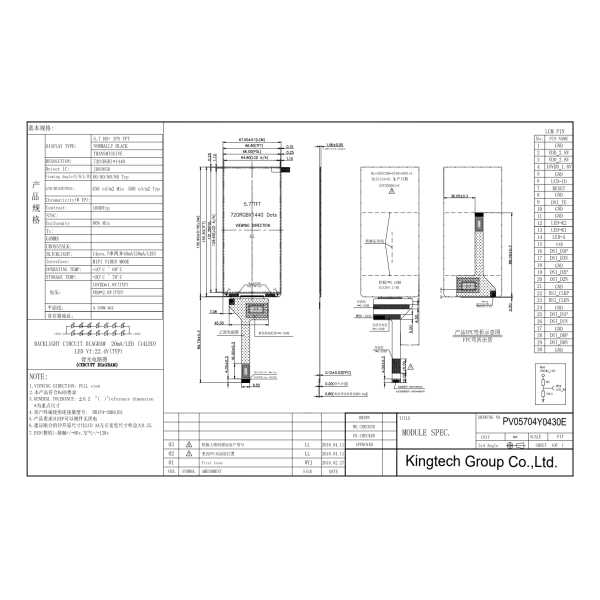

Model No.PV05704Y0430E
Resolution720*1440
Outline Dimension (mm)73.23*145.99*2.93
Active Area (mm)64.8*129.60
Viewing AngleAll
Brightness500nits
InterfaceMIPI 4 lane
Backlight7*2LED
Driving ICJD9365D
Pin No.30
Operating Temperature-10~60C
Storage Temperature-20~70C
Touch screenCapacitive touch optional
ApplicationIndustrial, Medical, Smart Home, Home appliance, Meter, outdoor

For product pricing,customization,or other inquiries:

Share to:

  1. 7inch 720*1440LCD with capacitive touch
  2. Full/Wide/All viewing angle
  3. High brightness/Sunlight readable/Outdoor
  4. Support MIPI interface.
  5. Can custom capacitive touch

5.7-inch 720*1440 dots TFT LCD

5.7-inch 720*1440 dots TFT LCD
