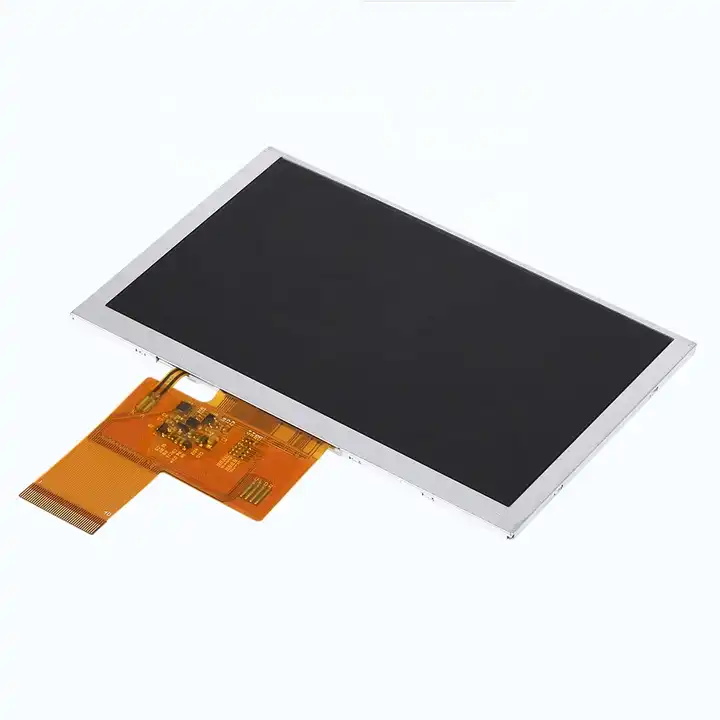

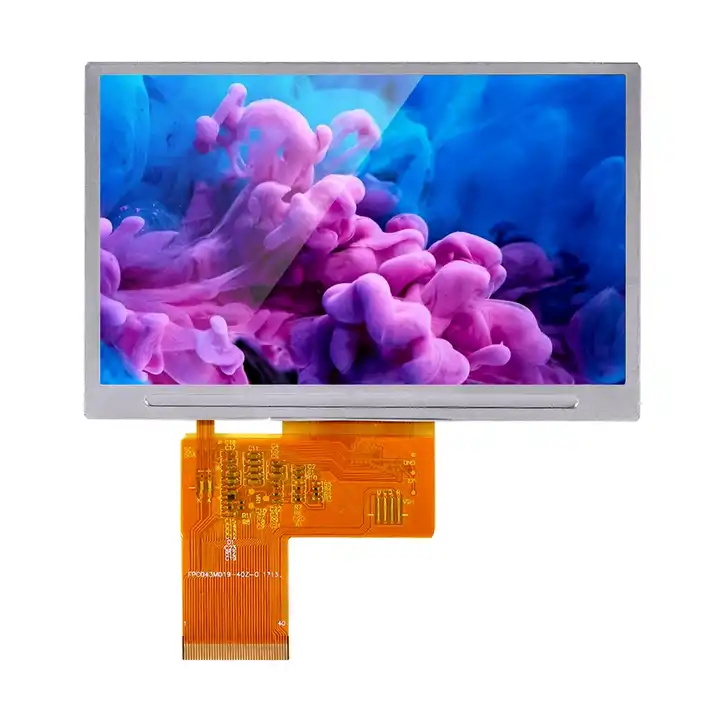

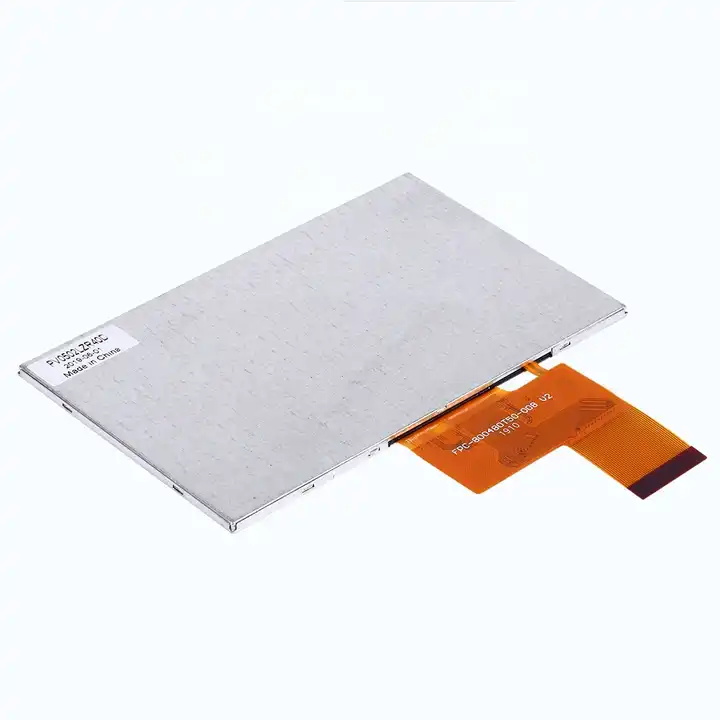

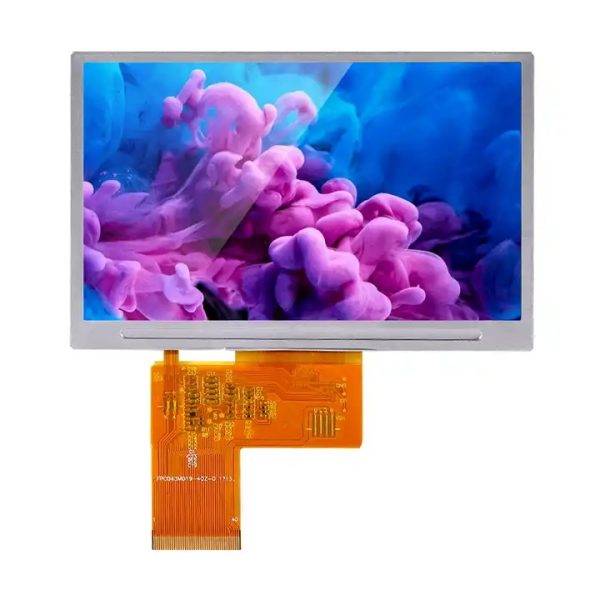

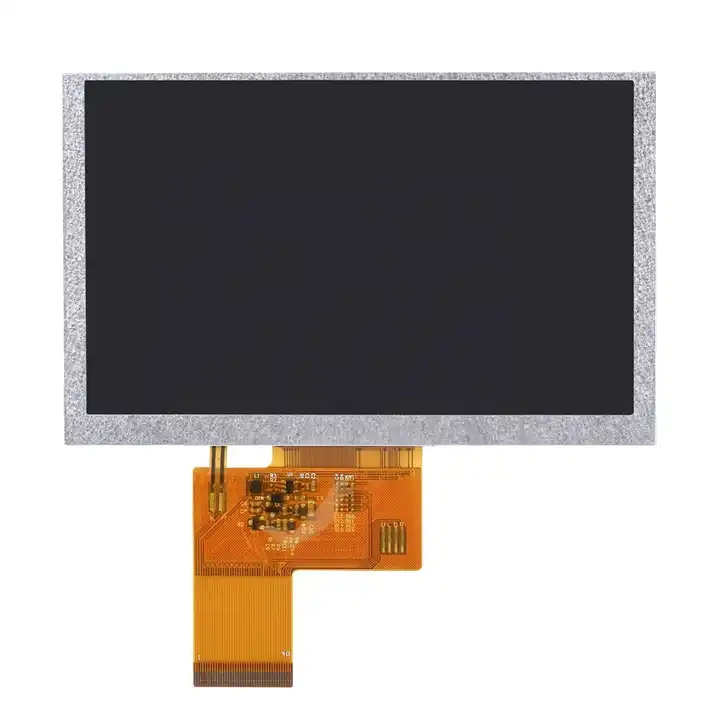

5 inch TFT LCD module resolution is WVGA 800×480 pixels

ItemHigh brightness 5.0 inch TFT 800×480 module screen
Model No.PV05030Y0140B
Resolution800*480

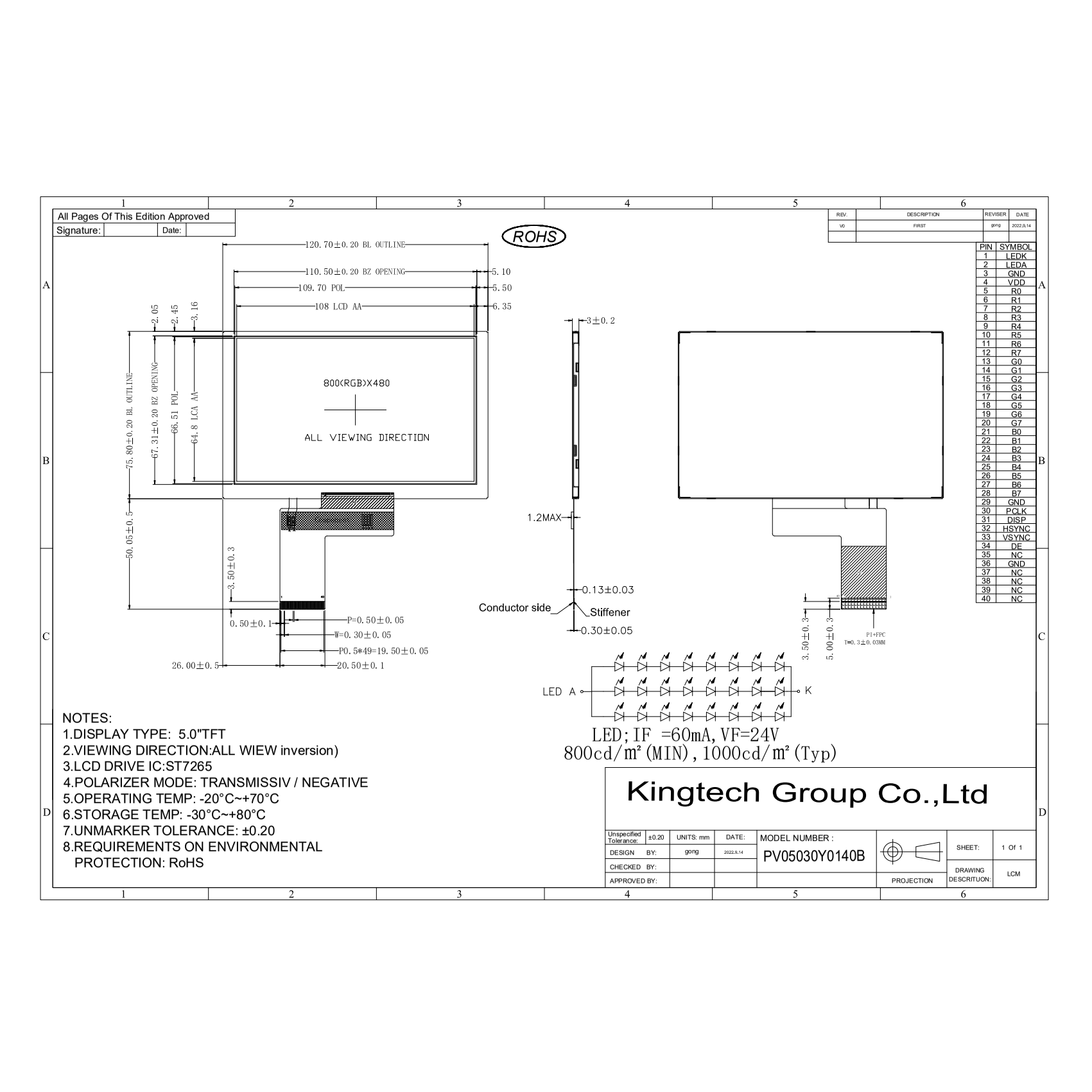

Outline Dimension (mm)120.7*75.8*3.0
Active Area (mm)108*64.8
Viewing AngleAll
Brightness1000nits
InterfaceRGB Interface
Backlight8*3LED
Driving ICST7265
PIN No.40
Operating Temperature-20~70
Storage Temperature-30~80
Touch screenSupport capacitive touch and resistive touch
ApplicationOutdoor self service Kiosks, Motorcycle or Scooter
Dashboard,Gas pump,EV charging station,GPS devices

For product pricing,customization,or other inquiries:

Share to:

  1. 5.0 inch TFTdisplay
  2. 800*480 /WVGA
  3. Stable supply
  4. Full View angle
  5. RGB Interface
  6. 1000nits brightness
  7. With capacitive touch and resistive touch
  8. Outdoor use: Outdoor self service Kiosks,Motorcycle or Scooter Dashboard, Gas pump, EV charging station, GPS device, Fish Finder, Yacht & speed-boat control panels, radios, and navigation displays
