5 inch transflective TFT LCD display screen 800×480 WVGA low power consumption 5.0″ screen E-bike lcd display e bike

Item 5.0 inch  800*480 Transflective display
Model No. PV05041B0140N
Resolution 800*480

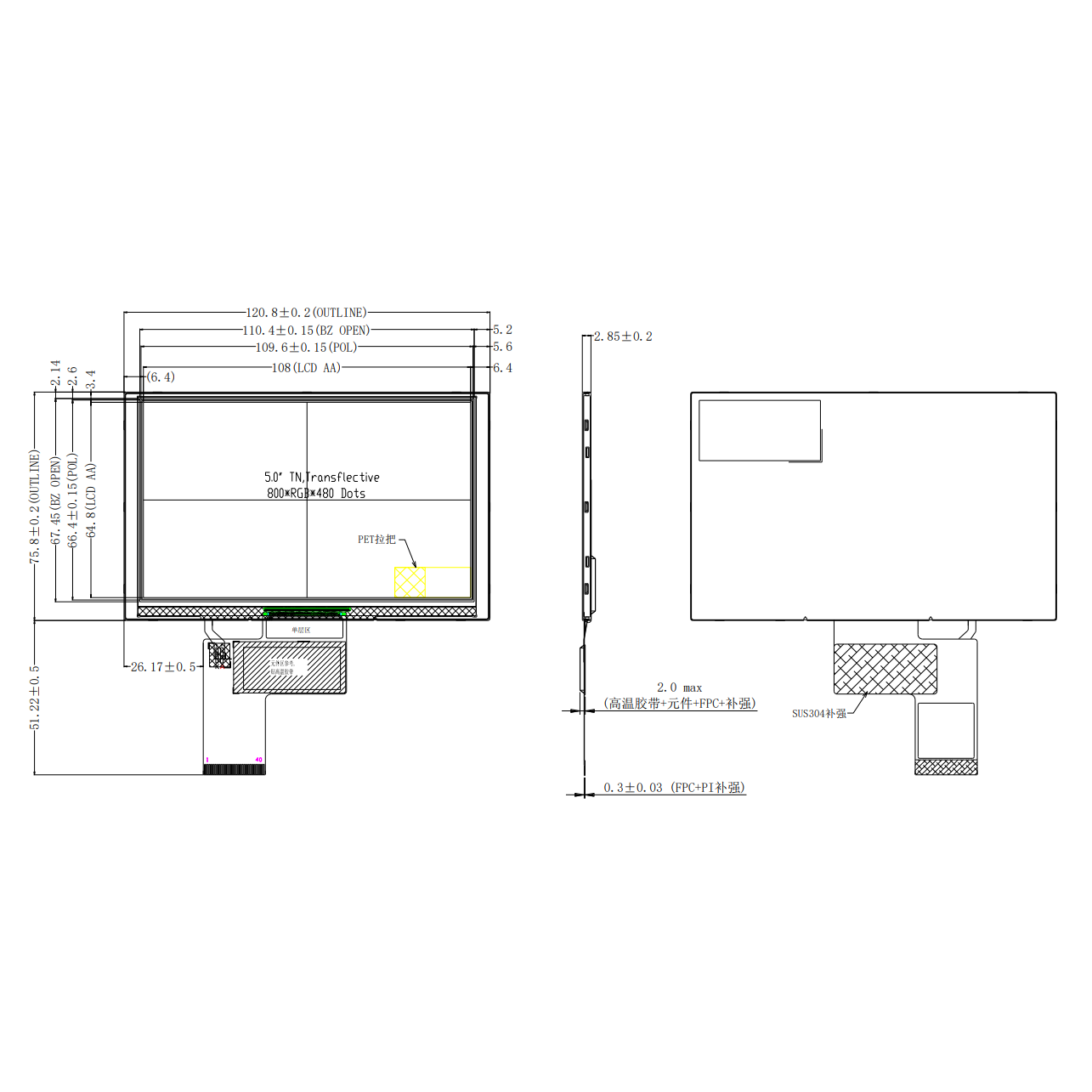

Outline Dimension (mm) 120.80*75.80*2.85
Active Area (mm) 108.00*64.80
Viewing Angle 6 O’clock
Brightness 200nits
Interface RGB
Backlight 6*3LEDs
Driving IC /
PIN No. 40
Operating Temperature -30~85C
Storage Temperature -30~85C
Touch screen Can custom resistive and capacitive touch screen
Application E-Bike, Medical, Medical, hand-held device,
industrial, Smart-home, outdoor, Elevator

For product pricing,customization,or other inquiries:

Share to:

  1. Stable supply
  2. WVGA / 800×480 resolution
  3. -30~85/Wide working temperature
  4. Can custom resistive touch and capacitive touch
  5. Medical, hand-held device, industrial
  6. Transflective / Outdoor/Sunlight readable/200nits

800x480 WVGA 5.0" screen E-bike lcd display 800x480 WVGA 5.0" screen E-bike lcd display

800x480 WVGA 5.0" screen E-bike lcd display

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
