5 inch WVGA LCD module using an TN technology with 800×480 resolution 1000nits brightness
| Item | 5.0inch 800×480 high brightness LCD screen |
| Model No. | PV05014Y0150R |
| Resolution | 800*480 |

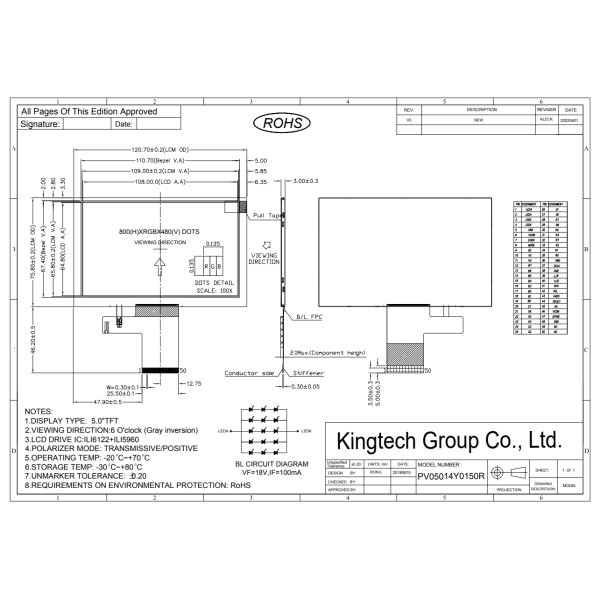

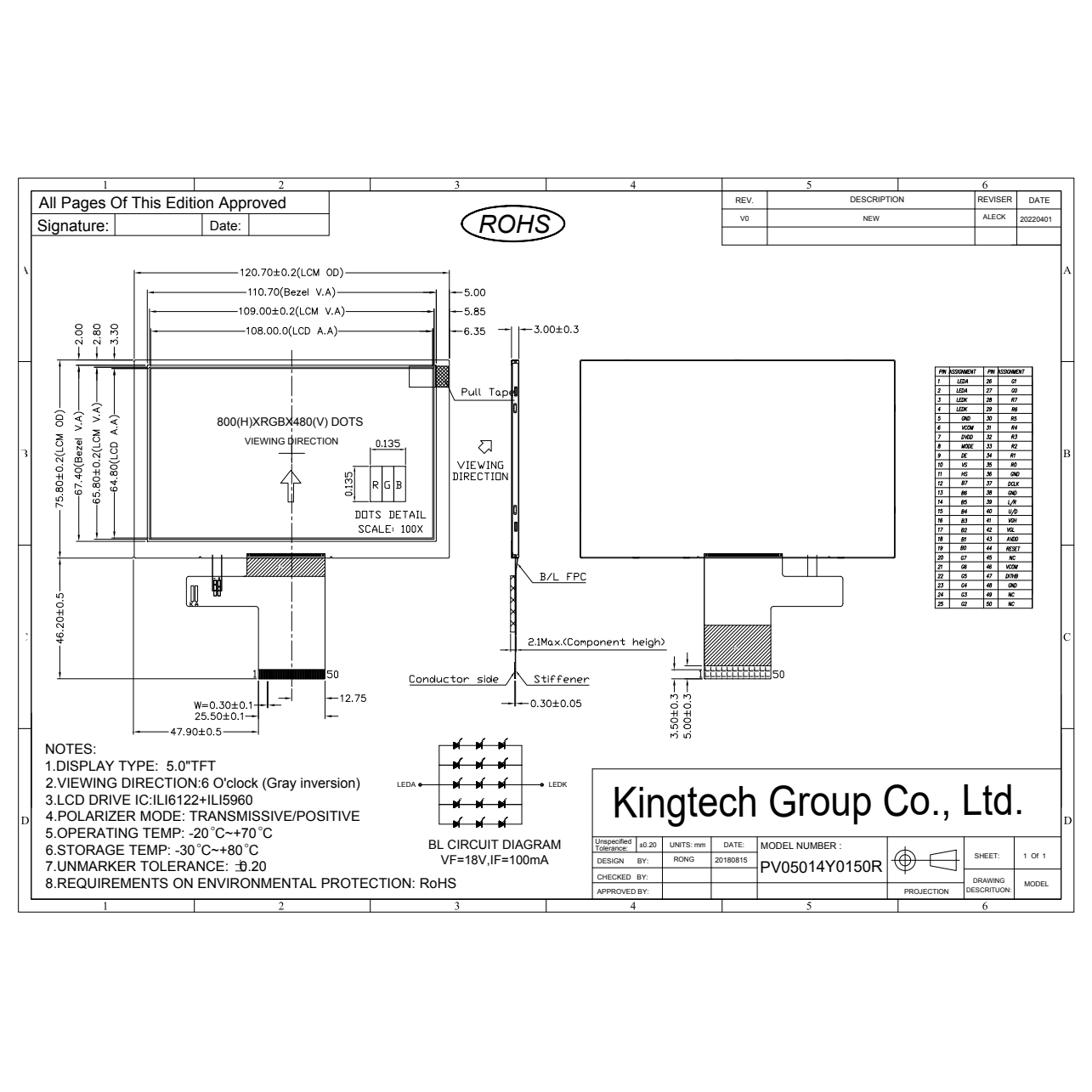

| Outline Dimension (mm) | 120.7*75.80*3.00 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | 12 O’clock |
| Brightness | 1000nits |
| Interface | 24bit RGB |
| Backlight | 3*5LED |
| Driving IC | ILI6122+ILI5960 |
| PIN No. | 50 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Motor, Industrial HMI, Outdoor device, Farming machine etc |
For product pricing,customization,or other inquiries:
Share to:
- 5.0 inch 800×480/WVGA display
- 1000nits/High brightness/Sunlight readable/Outdoor
- Stable supply
- Viewing angle:12 o’clock
- RGB/MIPI/LVDS interfaces
- Resistive touch and capacitive touch optional
