HX8678 24 bit RGB 800×480 7 inch tft lcd display

Item7 inch 800*480 LCD display
Model NoPV07019LZR40U
Resolution800×480
Outline Dimension164.9(W)×100(H)×5.7(T)
Active Area(mm)154.08(W)×85.92(H)
Interface24-bit Parallel RGB Interface
Viewing Angle12 O’clock
Driving ICHX8678
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 resolution RGB 1000nits brightbness LCD display
1.PV07019LZR40U mainly application for outdoor device ,Industrial ,medical equipment .
2.It with800x480 resolution , 1000nit brightness ,RGB interface ,HX8664-B+HX8264-E driver IC .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

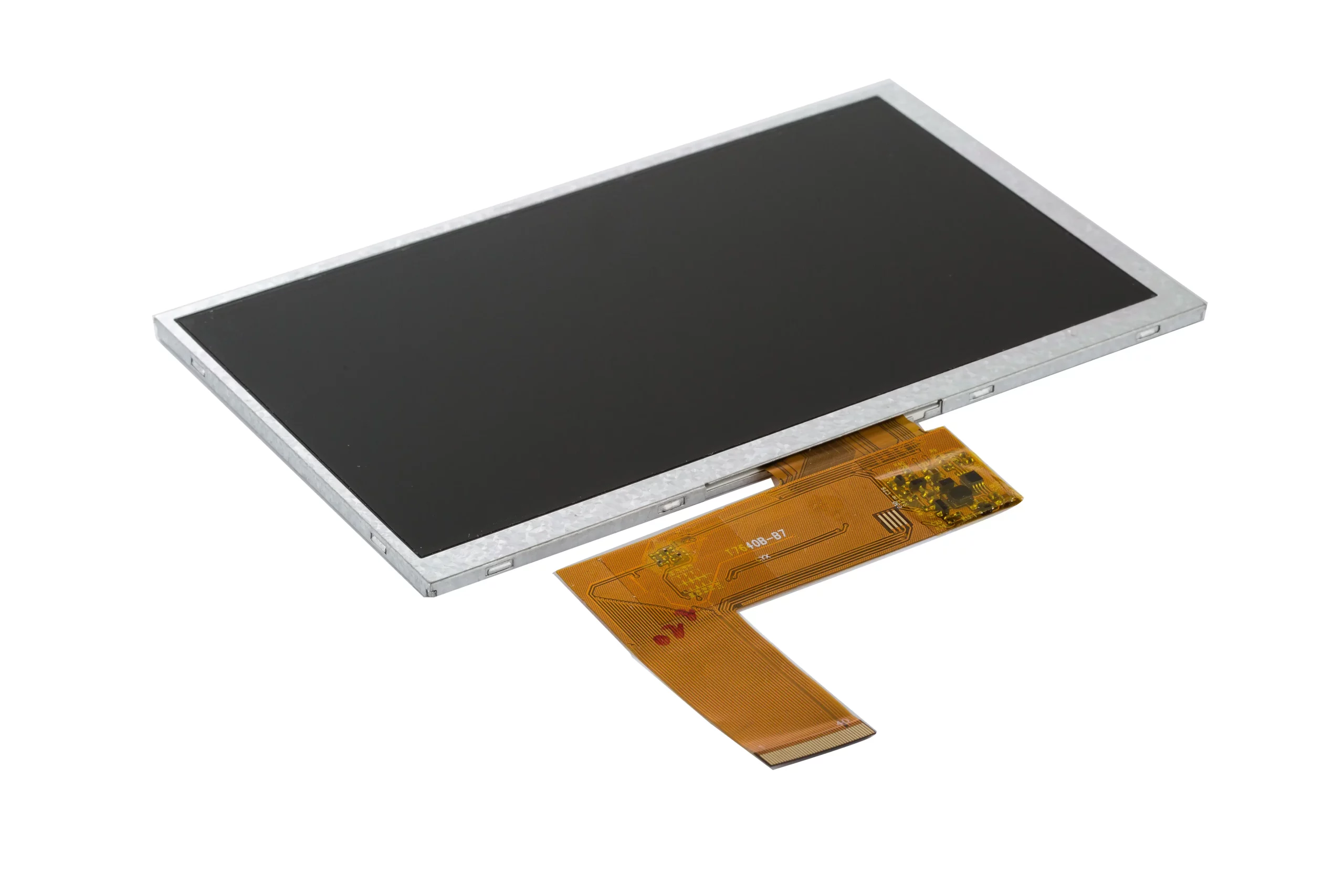

800×480 resolution 7 inch lcd display Front View

7 inch 800*480 LCD display

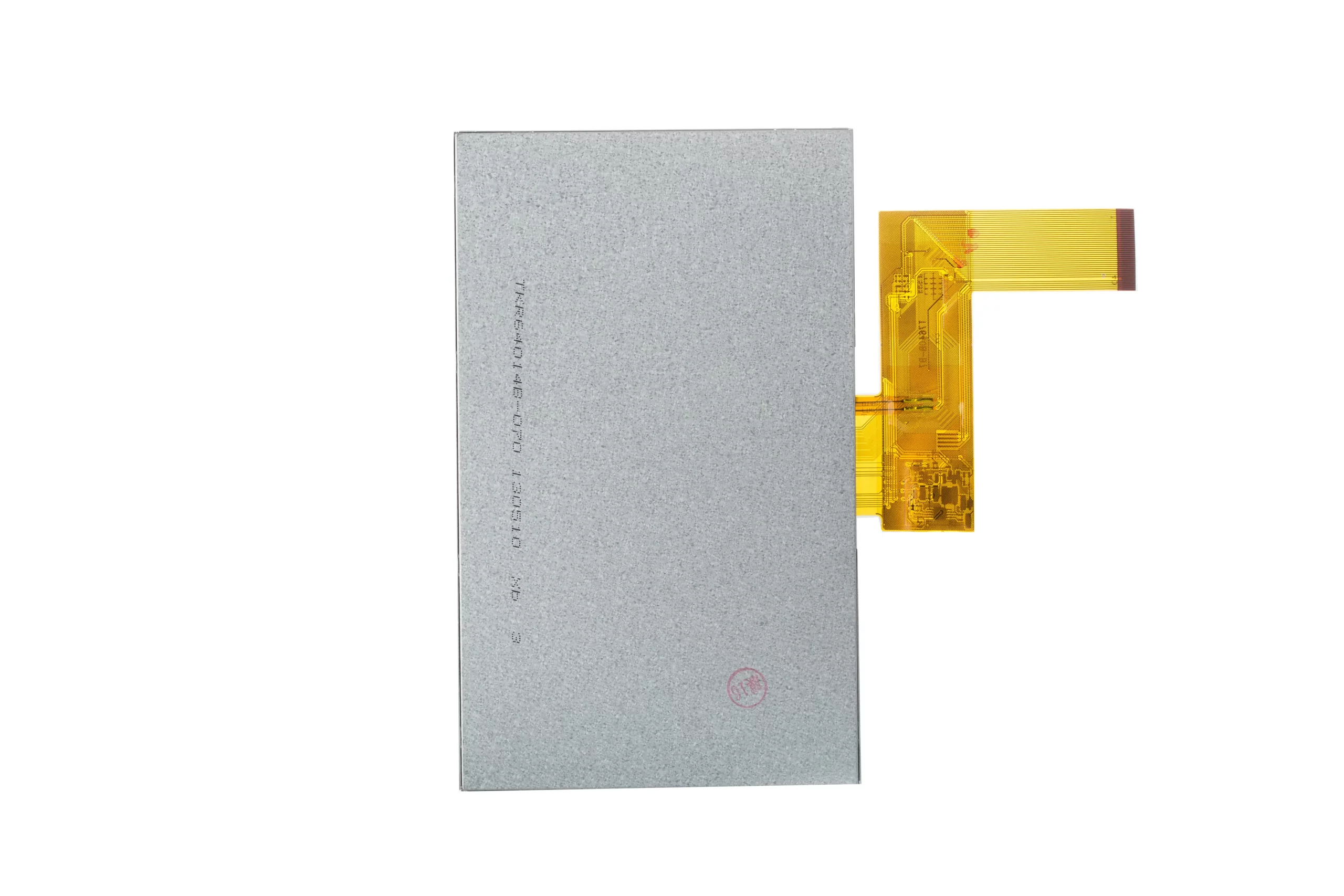

800×480 resolution 7 inch lcd display Back View

7 inch 800*480 LCD display

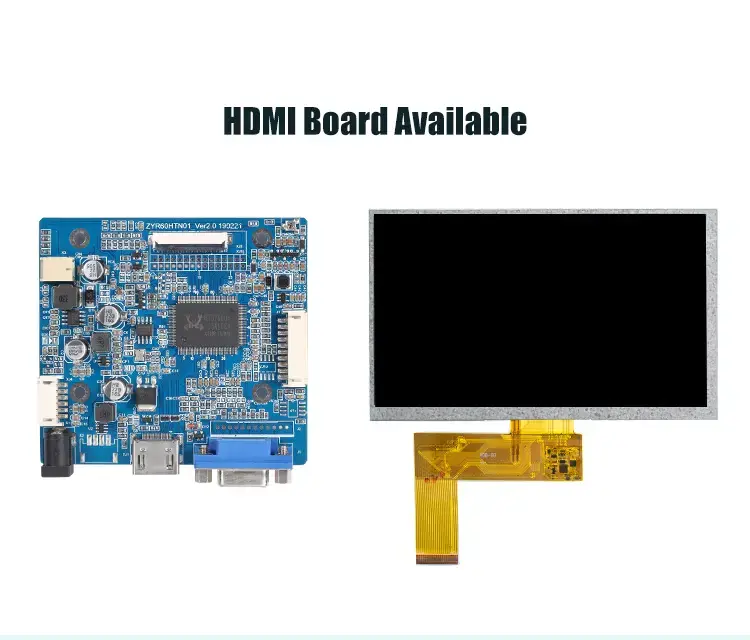

HDMI BOARD

7 inch 800*480 LCD display
