8 inch 800×1280 resolution 250nits MIPI interface IPS LCD module

Item 8inch 800×1280 MIPI interface IPS display
Model No PV08007H0131G
Resolution 800×1280
Outline Dimension 114.6*184.1*2.60
Active Area(mm) 107.64*172.22
Interface MIPI Interface
Viewing Angle All
LED life 30000h
Display Mode 30000h
Operating Temperature -10℃~50℃
Storage Temperature -20℃~60℃
Brightness 250nits

For product pricing,customization,or other inquiries:

Share to:

8 inch 800×1280 resolution 250nit MIPI interface TFT LCD display

1. PV08007H0131G mainly application for Industrial ,medical equipment .
2. It with 800×480 resolution , 250nits brightness , MIPI interface, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

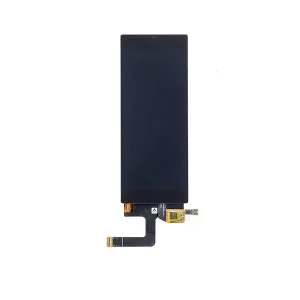

IPS view 8.0” TFT LCD front view
