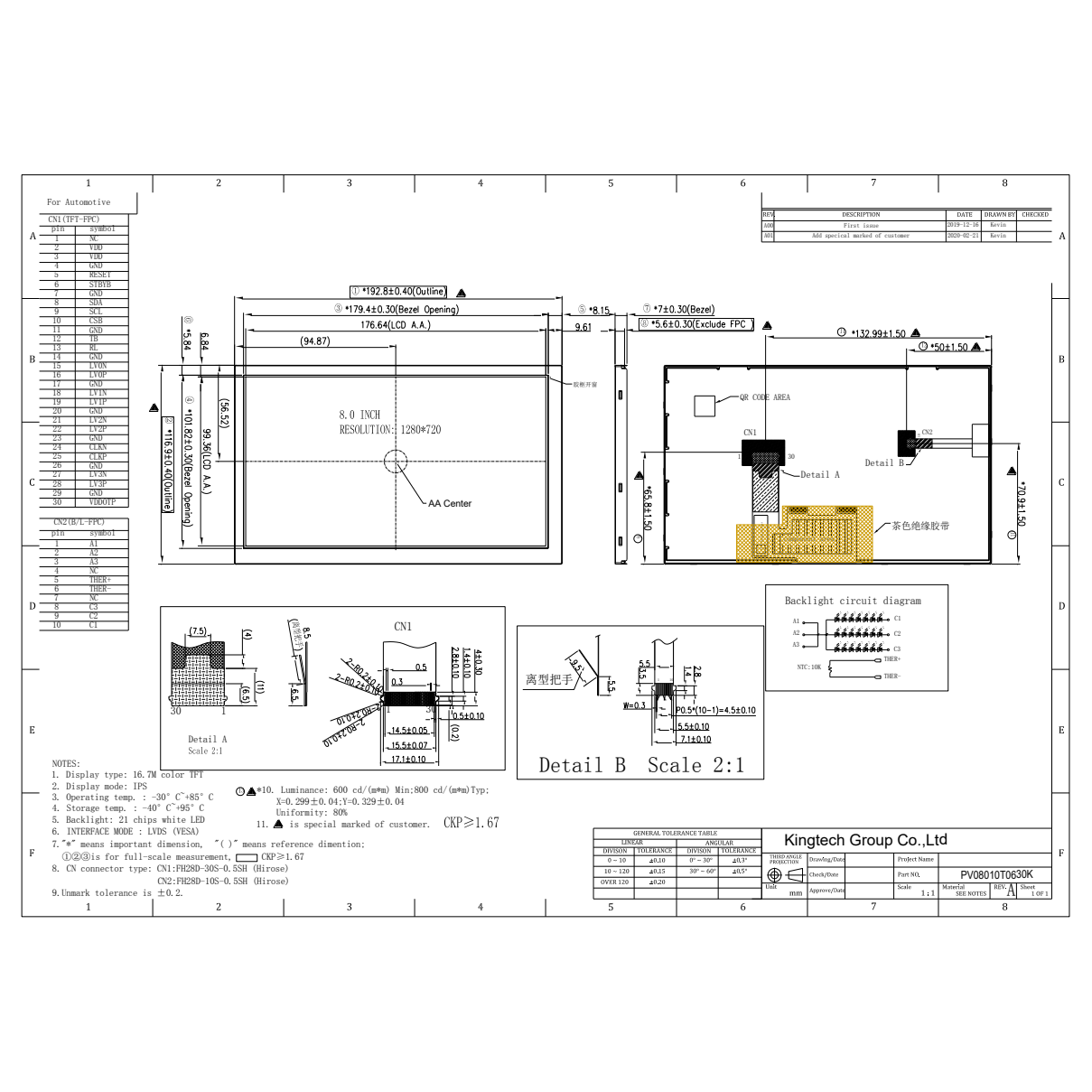

8.0 inch TFT LCD 1280×720 pixels transmissive type TFT-LCD Panel

Item 8.0 inch IPS 1280*720 LCD module
Model No. PV08010T0630K
Resolution 1280*720
Outline Dimension (mm) 192.8*116.9*7.0
Active Area (mm) 176.64 *99.36
Viewing Angle All
Brightness 1000nits
Interface LVDS
Backlight 7*3LED
Pin nums 30
Driving IC /
PIN No. 30
Operating Temperature -30~85C
Storage Temperature -40~95C
Touch screen Capcitive touch optional
Application Outdoor device, Medical, industrial, device in Harsh environment, Marine display, Automotive

For product pricing,customization,or other inquiries:

Share to:

  1. Ultra wide temperature,-30-85 working temp
  2. High brightness, 1000nits, Sunlight readable, Outdoor
  3. Capacitive touch screen can be customized
  4. Free/Full/Wide/All viewing angle
  5. Life-time 20000h

8.0 inch TFT LCD 1280x720 pixels

8.0 inch TFT LCD 1280x720 pixels
