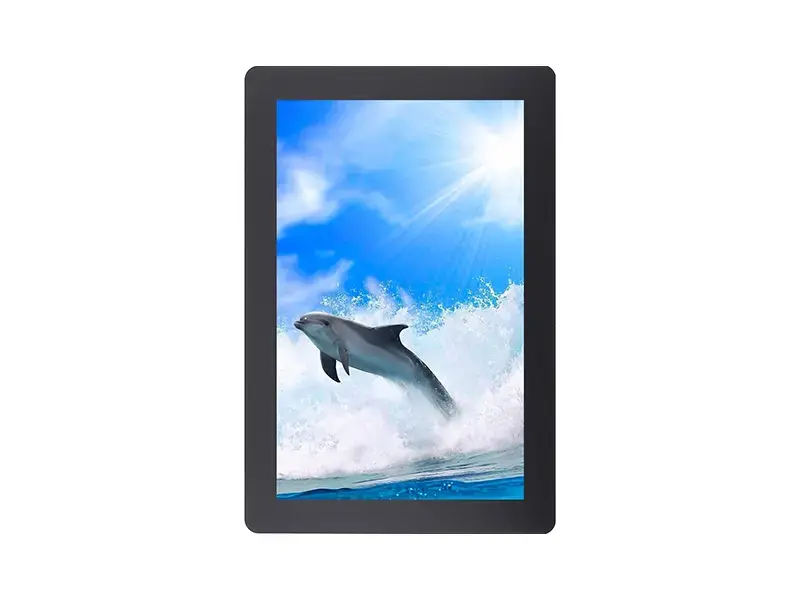

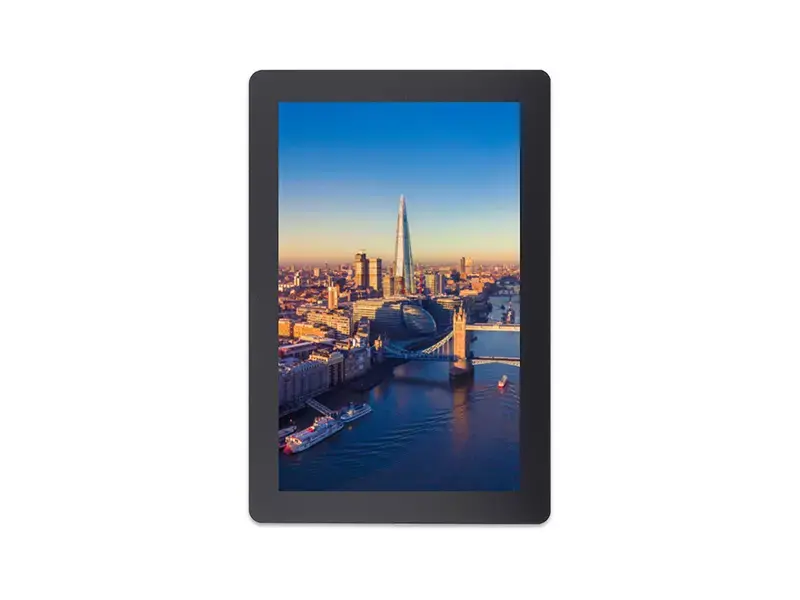

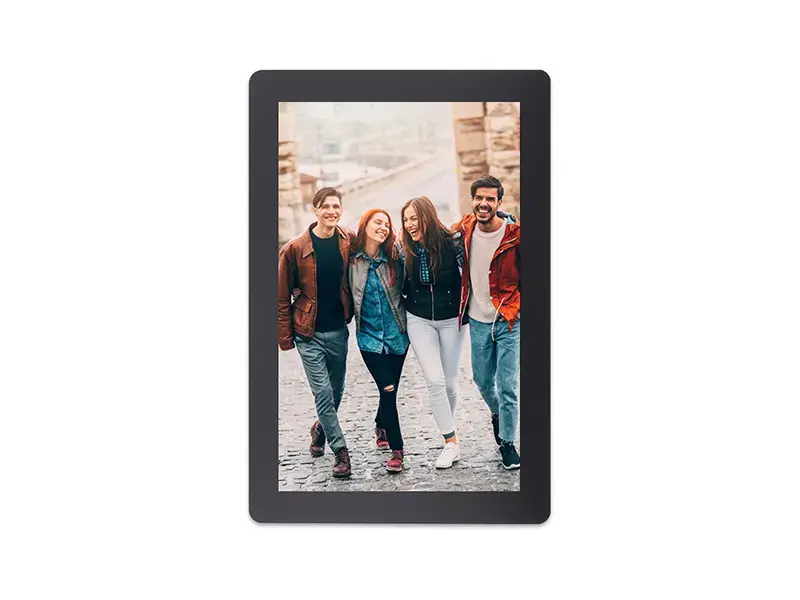

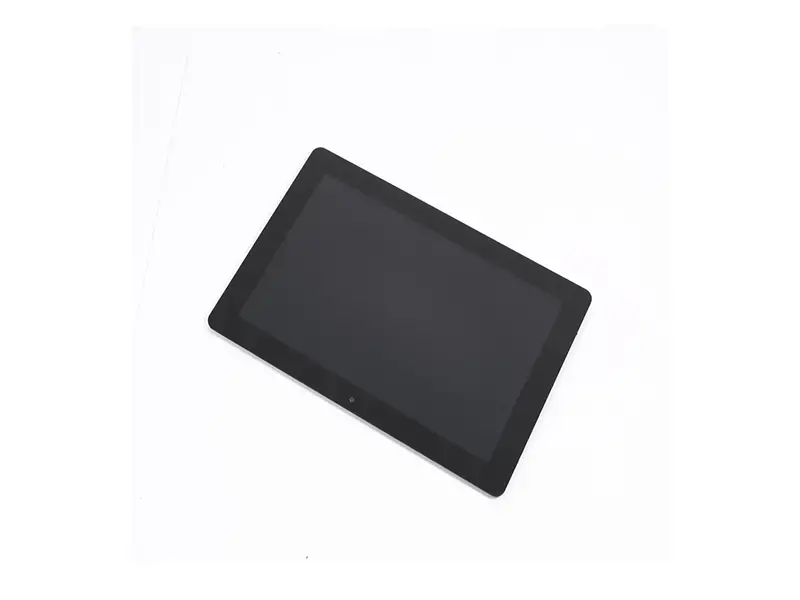

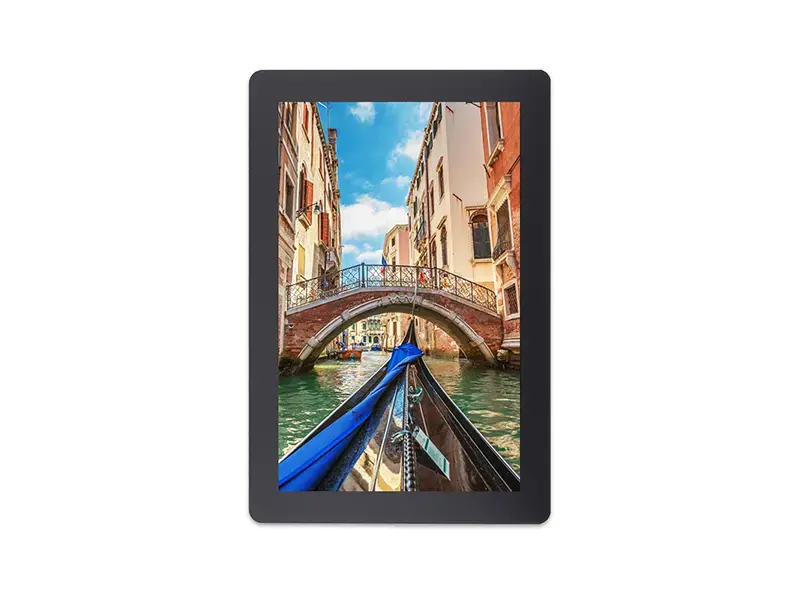

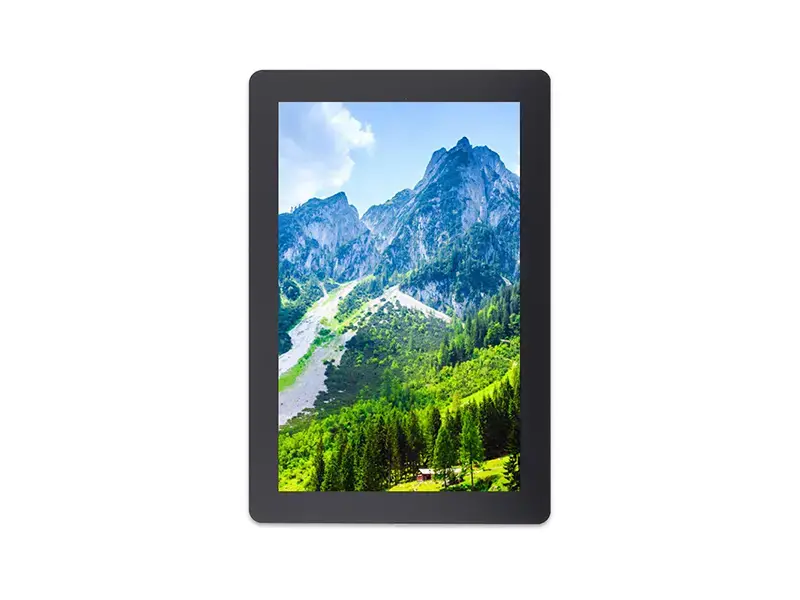

8 inch 1200×1920 MIPI interface IPS capacitive touch LCD display

Item8 inch 1200×1920 MIPI IPS display
Model NoPV08004TD31C-CO
Resolution1200*1920

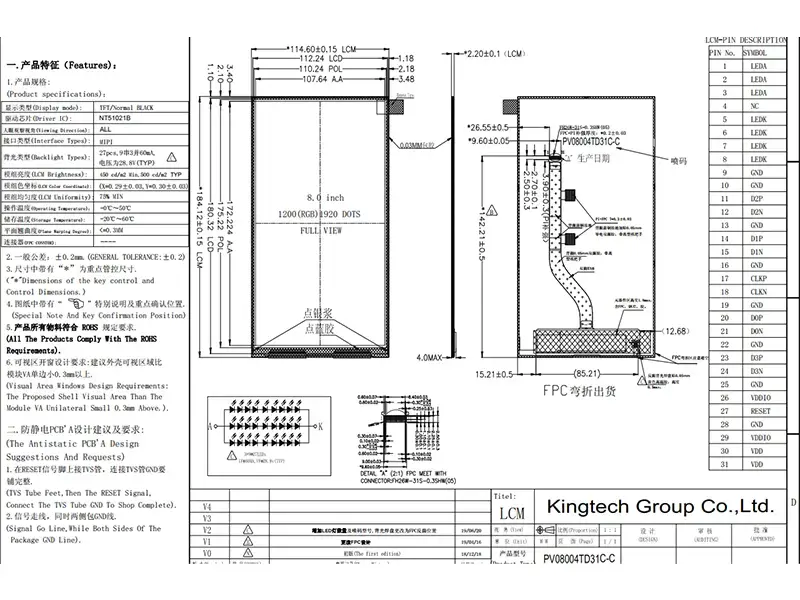

Outline Dimension128.84*205.93*3.50
Active Area(mm)107.64*172.224
Brightness450 nits
Viewing AngleAll
InterfaceMIPI
Driving ICHX8279-D01
PIN31
Operating Temperature-0 to +50℃
Storage Temperature-20 to +60℃
TouchCapacitive touch

For product pricing,customization,or other inquiries:

Share to:

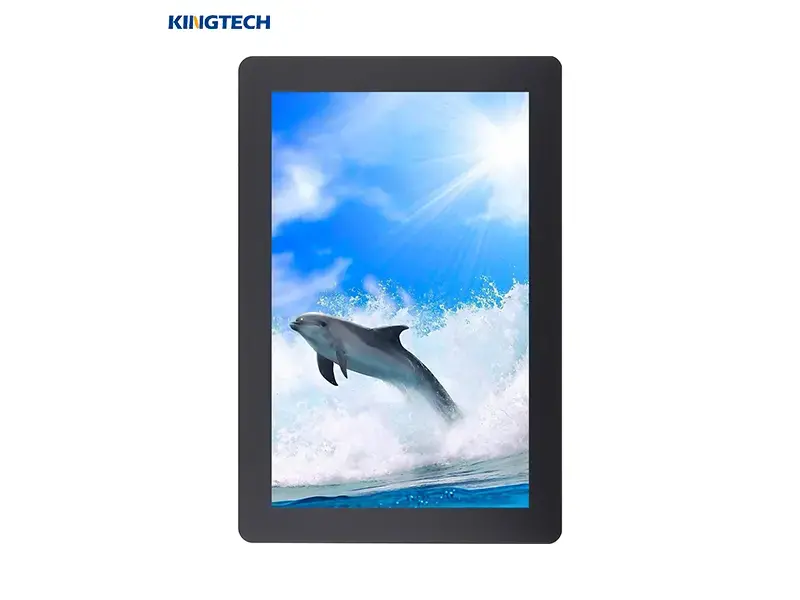

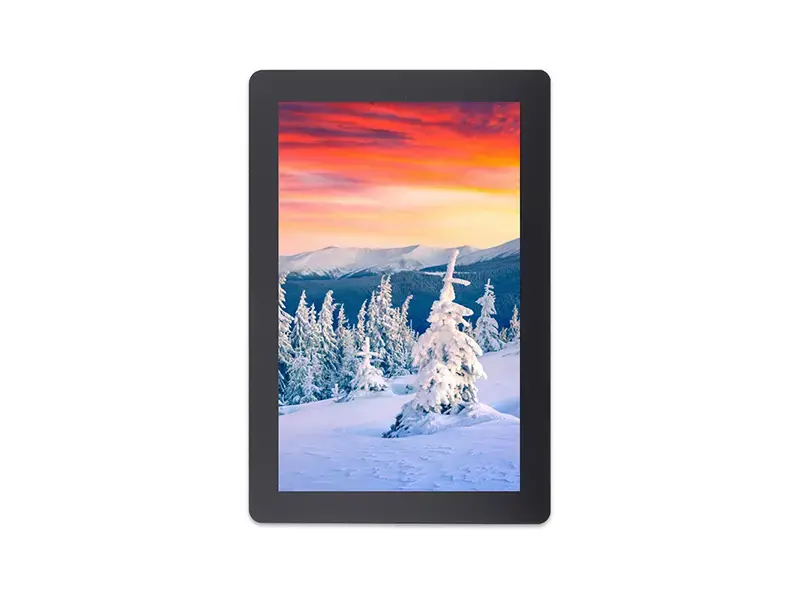

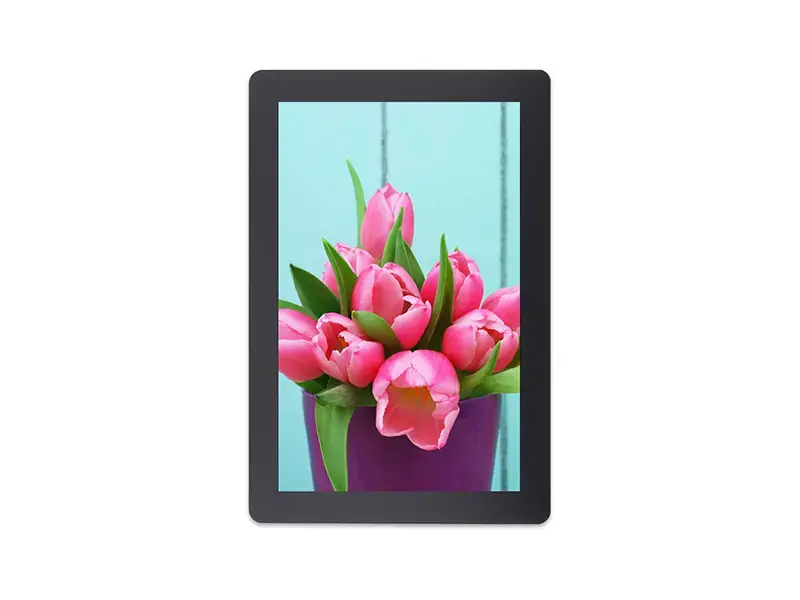

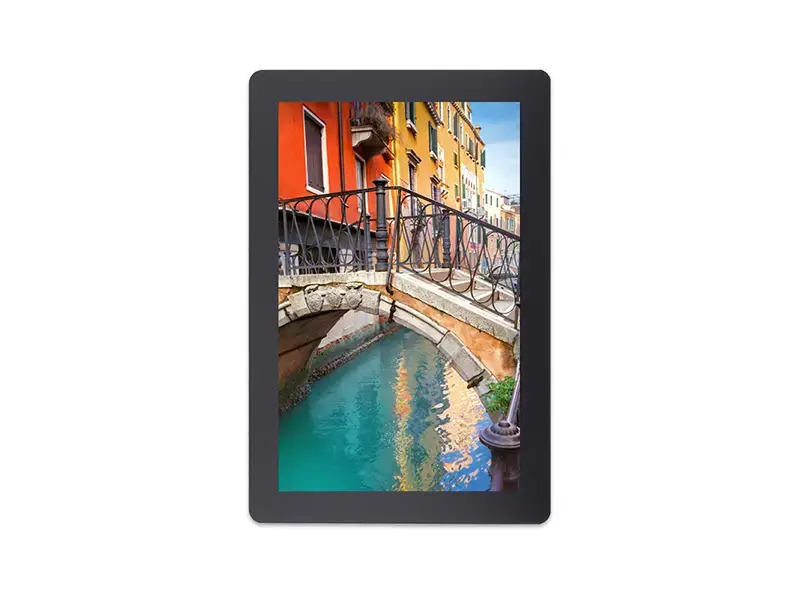

8.0 inch 1200×1920 high brightness IPS MIPI vertical  capacitive touch screen

1. PV08004TD31C-C mainly application for logistics device , handheld devices and industrial device .
2. It with all viewing (IPS)  , MIPI interface , HX8279-D01 driver IC, 450 nits brightness,existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for logistics device, Industrial, medical application .

8 inch 1200×1920 IPS capacitive touch screen
