8 inch 1200*1920 TFT module display
| Item | 8 inch 1200*1920 TFT module display |
| Model No | PV0800I8Z05 |
| Resolution | 1200*1920 |
| Outline Dimension | 139.1*185.4*6.03 |
| Active Area(mm) | 107.64*172.224 |
| Interface | 4-Lane MIPI |
| Viewing Angle | All |
| Driving IC | HX8279 |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | ‘-20℃~60℃ |
| Brightness | 2000nits |
| Touch screen | Resistive and capacitive touch screen |
For product pricing,customization,or other inquiries:
Share to:
8.0 inch 1200×1920 IPS MIPI interface 2000nit sunlight readable lcd display
1.PV0800I8Z05 mainly application for outdoor devide , Industrial device .
2.It with all viewing (IPS) , 4 lane MIPI interface , HX8279 driver IC .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .
8 inch 1200*1920 TFT module display Front View
8 inch 1200*1920 TFT module display Back View

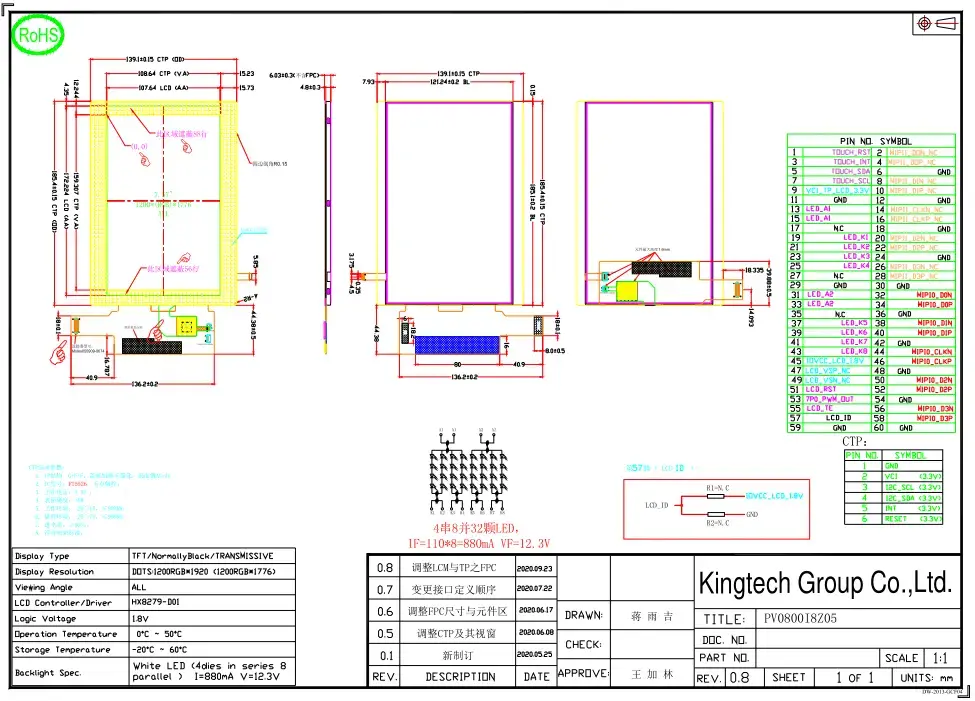

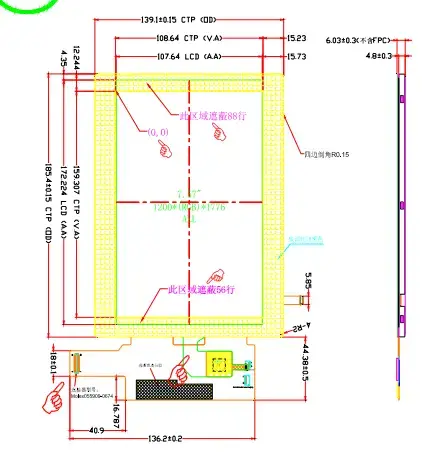

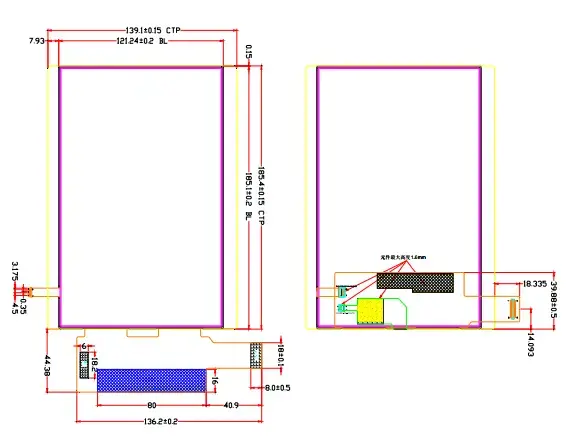

8 inch 1200*1920 TFT module display Machine Drawing
