8 inch 1280×800 display finished products with capacitive touch

Item 8 inch ips1280x800 finished product
Model No PVA918
Resolution 1280 x 800
Outline Dimension 199.0×123.9×29
Active Area(mm) 172.2×107.6
Interface 100M limited network port/1 USB input/232 Serial Port Communication
Viewing Angle All
Power 12V direct current
Operating Temperature 0 to +40℃
Storage Temperature -10 to +60℃
Brightness ≤300nits
Touch screen capacitive touch screen
Operation system Android and LINUX

For product pricing,customization,or other inquiries:

Share to:

8 inch 1280×800 finished product capacitive touch

1.PVA918 mainly application for  industrial equipment .
2.It with 1280×800 resolution ,IPS view angle ,support 100M limited network port/1 USB input/232 Serial Port Communication ,Android and LINUX operating systems, existing Capacitive touch
6.It is the A grade product , with good quality for the industrial application.

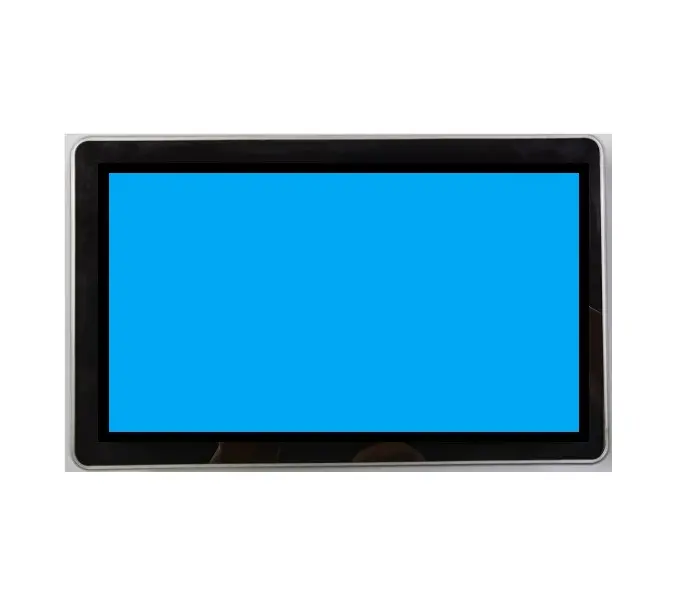

8 inch IPS finished product front view

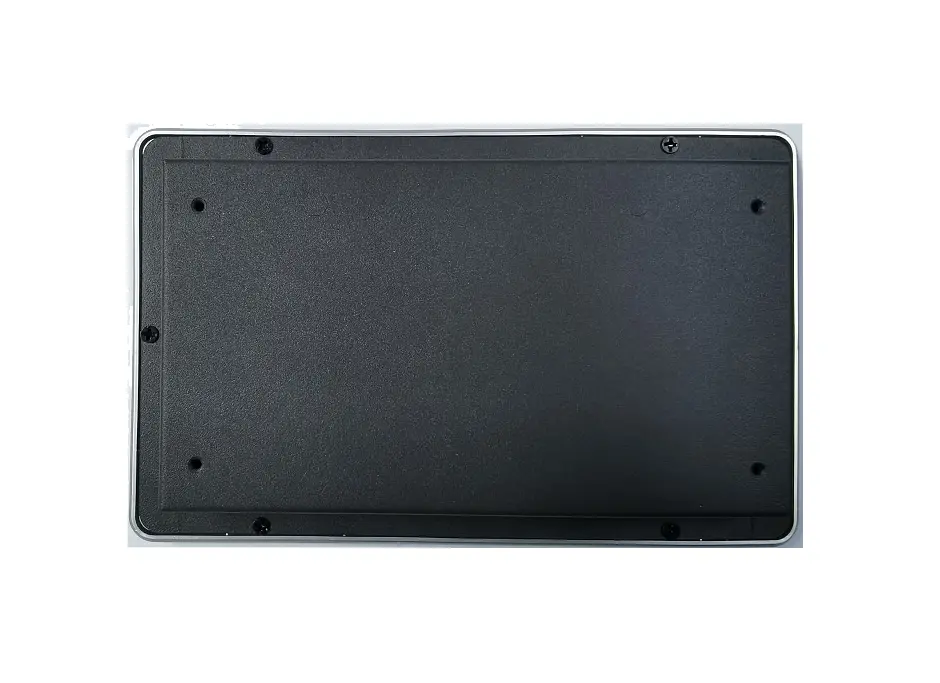

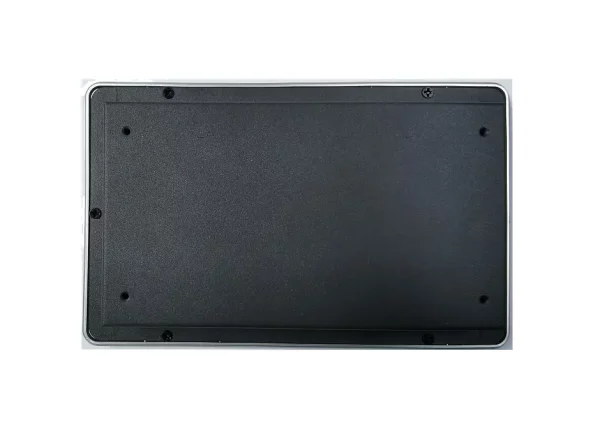

8 inch IPS finished product back view

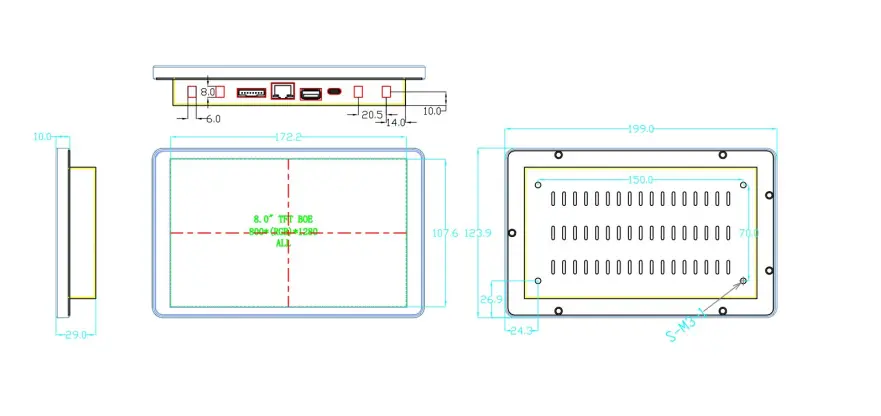

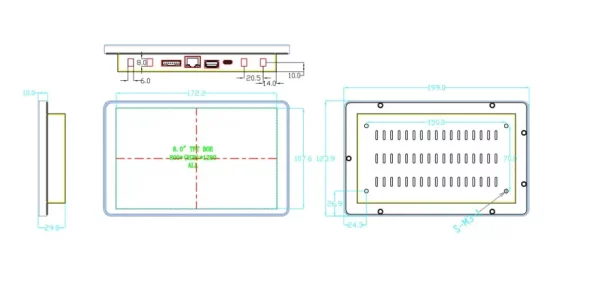

8 inch IPS finished product Machine Drawing
