9.45 inch 1540×1540 resolution round and large  TFT LCD display

Item9.45inch 1540×1540 round TFT Display
Model NoPV94500QXT40A
Resolution1540×1540
Outline Dimension258.2(W)×258.2(H)×6.57(T)
Active Area(mm)φ240
InterfaceLVDS Interface
Viewing AngleAll
Display ModeTFT/TRANSMISSIVE
Operating Temperature-30 to +80℃
Storage Temperature-40 to +90℃
Brightness1000nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

9.45 inch 1540×1540 resolution round and large  TFT LCD display
1.PV94500QXT40A mainly application for Industrial  device.
2.It with 1540×1540 resolution , LVDS interface , 40PINS .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

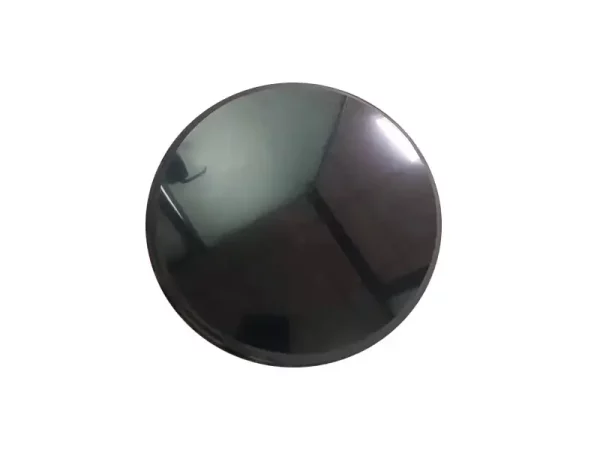

IPS 9.45 inch 1540×1540 round TFT Display Front view



PV94500QXT40A

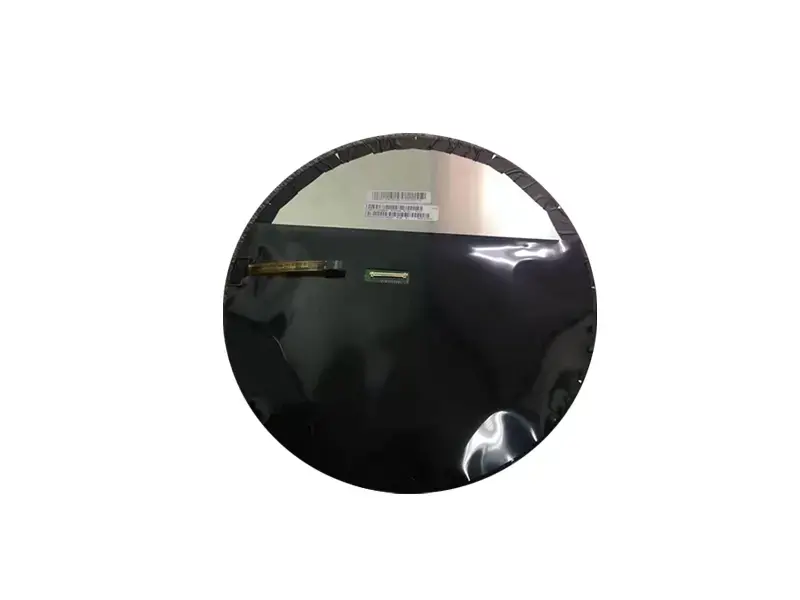

IPS 9.45 inch 1540×1540 round TFT Display back view

PV94500QXT40A

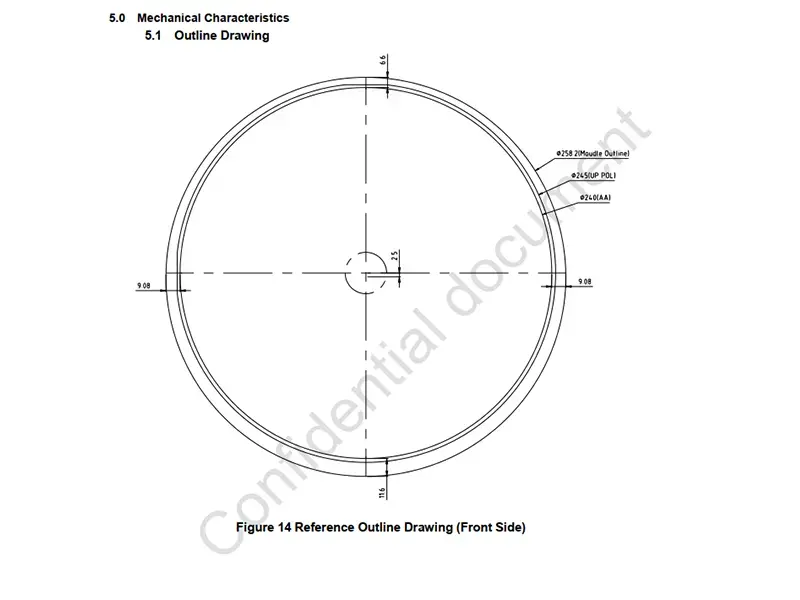

IPS 9.45 inch round TFT Display Machine drawing

PV94500QXT40A
