9.7 inch 1024×768 TFT LCD module

Item9.7 inch TFT LCD module
Model NoPV09704TX30D
Resolution1024×768
Outline Dimension210.10(W) ×164.25(H) ×4.8(D) mm
Active Area(mm)196.608(W) ×147.456(H) mm
InterfaceLVDS
Viewing AngleIPS
Display ModeTFT/TRANSMISSIVE
Operating Temperature0~50
Storage Temperature-20~60
Brightness500NITS
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

9.7 inch 1024×768 resolution LVDS  IPS TFT LCD display
1.PV09704TX30D mainly for industrial application .
2.It with 1024×768 resolution , LVDS interface , IPS view angle , 500nit brightness .
3.And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4.It is the A grade product , with good quality for the industrial application .

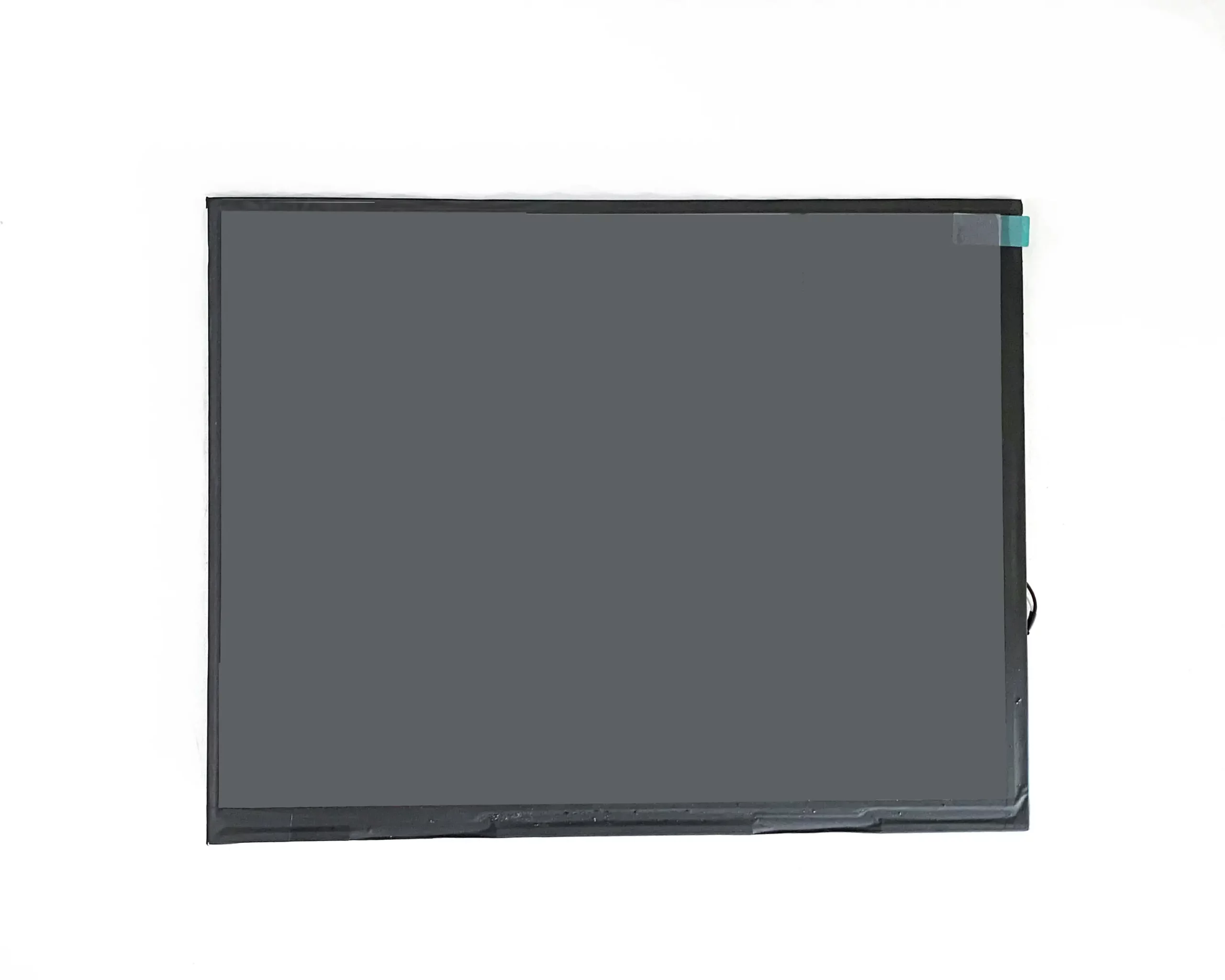

1024×768 resolution 9.7 inch LCD module Front View



9.7 inch 1024x768 TFT LCD module

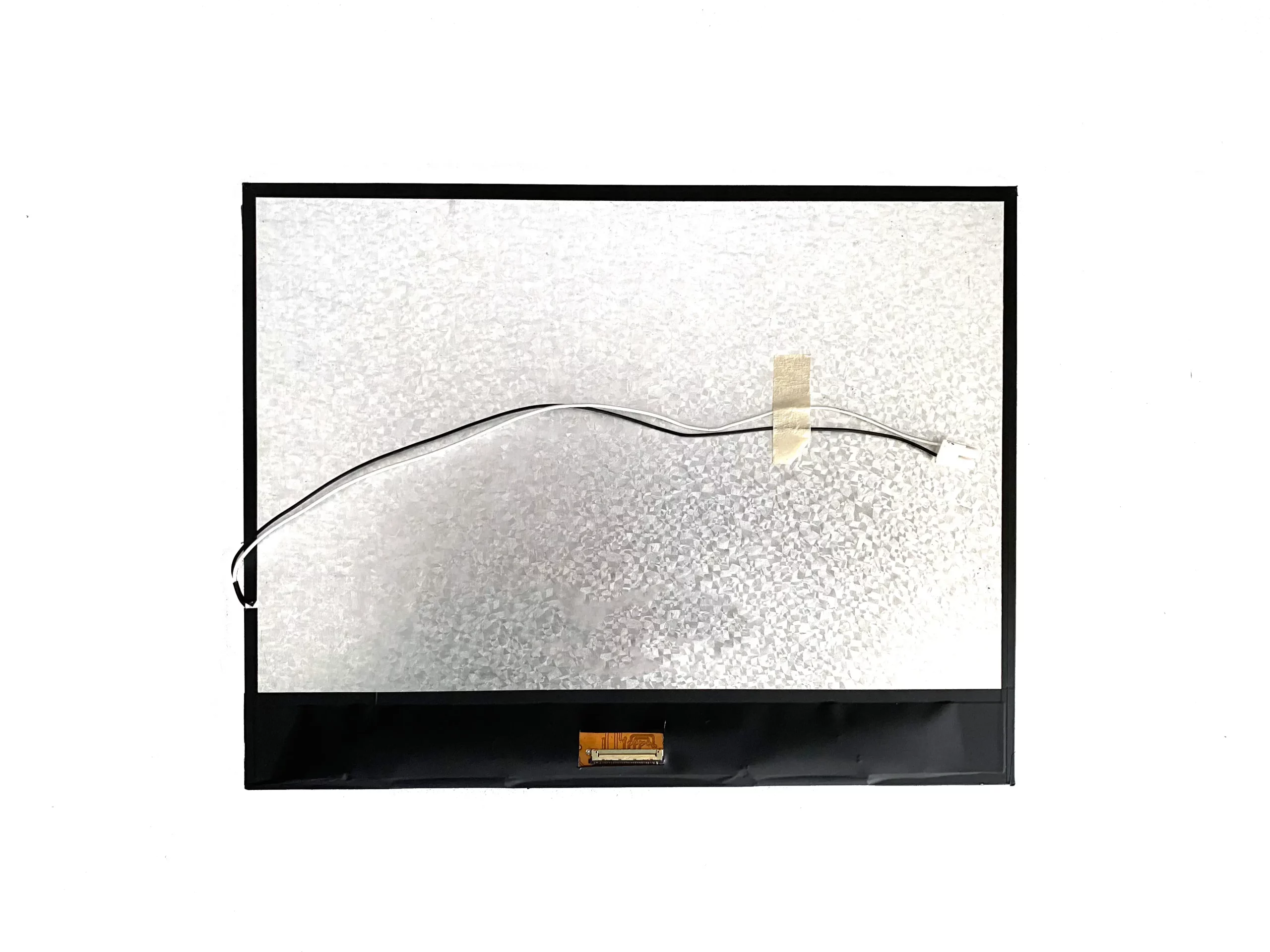

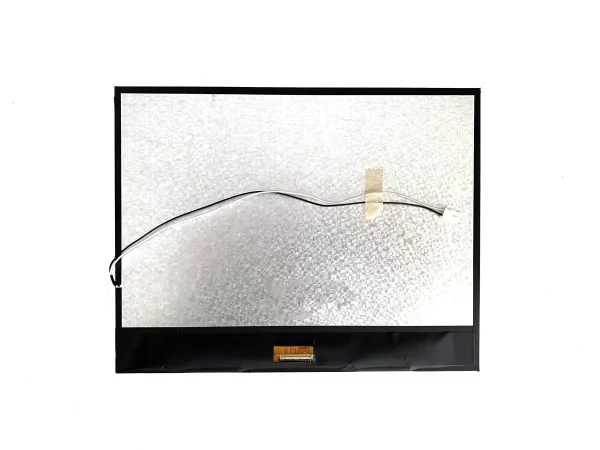

1024×768 resolution 9.7 inch LCD module Back View





9.7 inch 1024×768 TFT LCD module Machine Drawing



9.7 inch 1024x768 TFT LCD module
