All view 7inch 800×1280 MIPI interface IPS TFT display with ILI9881 IC

Item 7inch 800×1280 MIPI interface IPS display
Model No PV07035H0140L
Resolution 800×1280

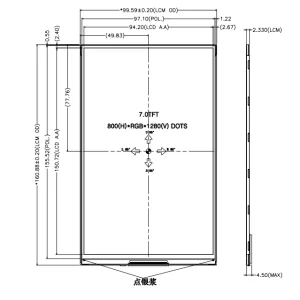

Outline Dimension 99.85*161.1*2.53
Active Area(mm) 94.2*150.72
Interface MIPI Interface
Viewing Angle All
Driver IC ILI9881
Display Mode Normally Black
Operating Temperature -20℃~70℃
Storage Temperature -30℃ to +80℃
LED life 30000h
Touchscreen Can custom capacitive touchscreen

For product pricing,customization,or other inquiries:

Share to:

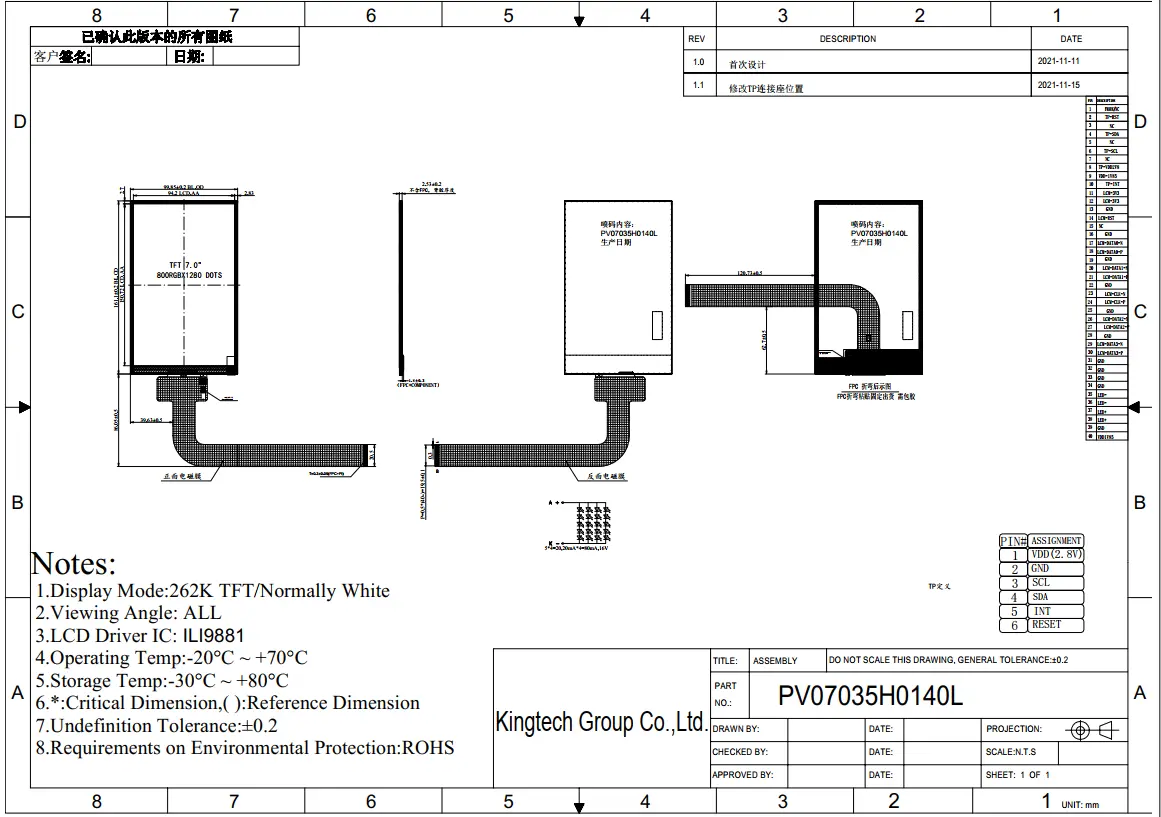

7 inch 800×1280 resolution IPS view angle MIPI interface TFT LCD display

1. PV07035H0140L mainly application for Industrial ,medical equipment .
2. It with 800×1280 resolution , MIPI interface, ILI9881 interface, IPS / Full / All / Free / Wide viewing angle, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

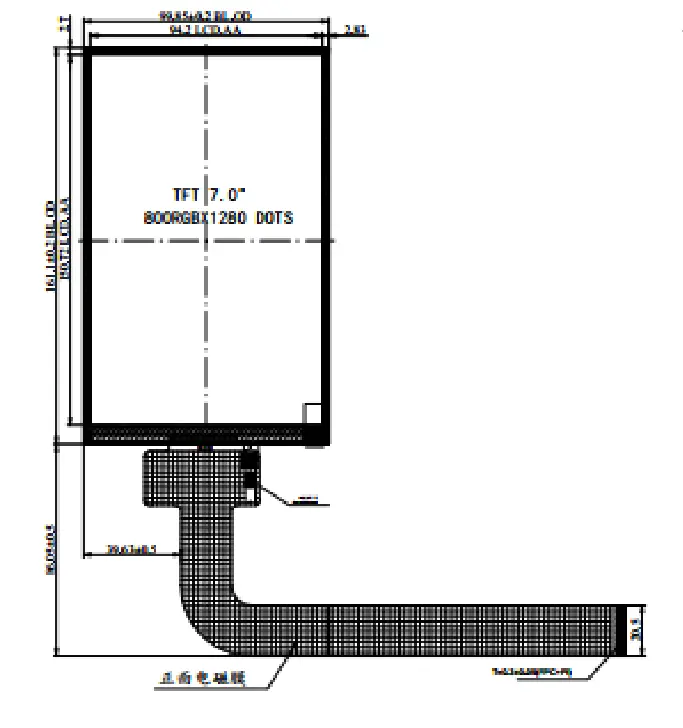

MIPI interface 7” 800×1280 LCD display front view

PV07035H0140L front

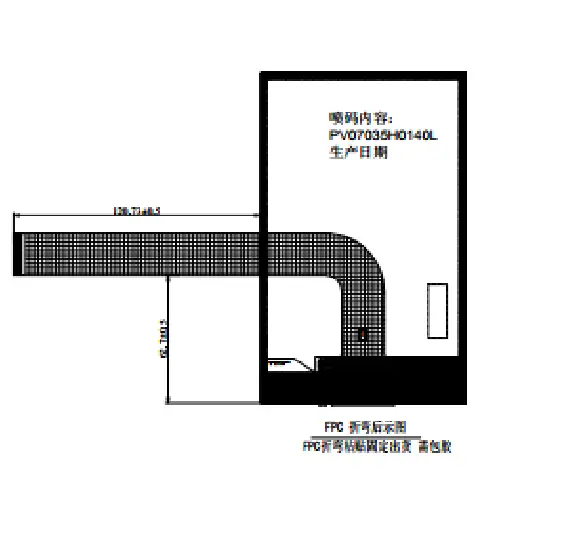

IPS 7” portrait screen LCD display back view

PV07035H0140L back
