Item | 3.5 inch 480×640 IPS TFT LCD |
Model No | PV03502LZR40D |
Resolution | 480×640 |
Outline Dimension | 63*85*2.9 |
Active Area(mm) | 53.57*71.42 |
Brightness | 120nits |
Viewing Angle | All |
Interface | 3-wire SPI + RGB interface |
Driving IC | HX8363A |
PIN | 40 |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Touch | capacitive touch |
3.5 inch 480×640 VGA SPI + RGB interface IPS transflective LCD module
1. PV03502LZR40D mainly application handheld device , Industrial ,medical equipment.
2. It with 480×640 resolution , all view angle , ILI9488/HX8363A driver IC , existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

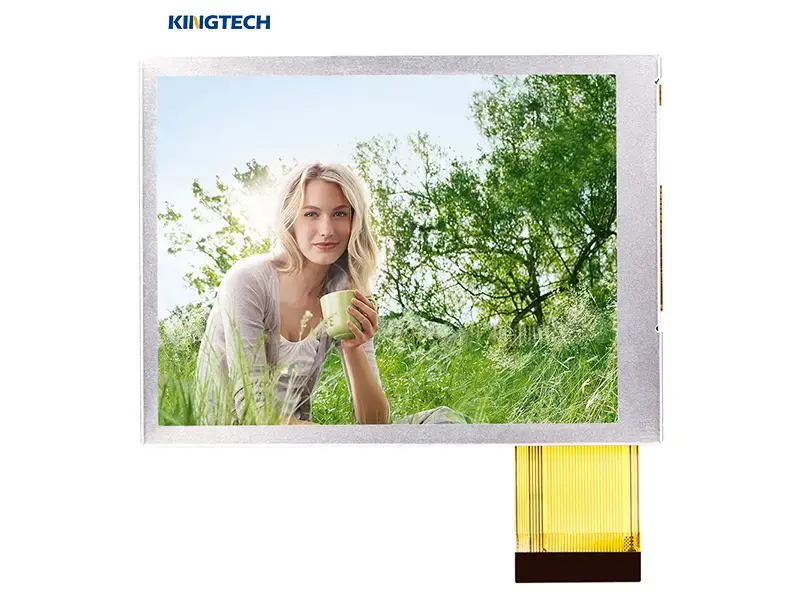

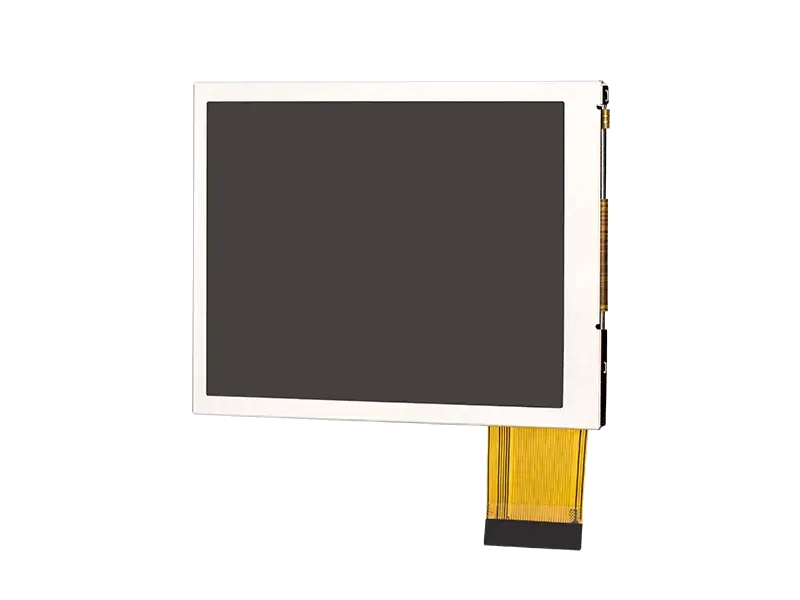

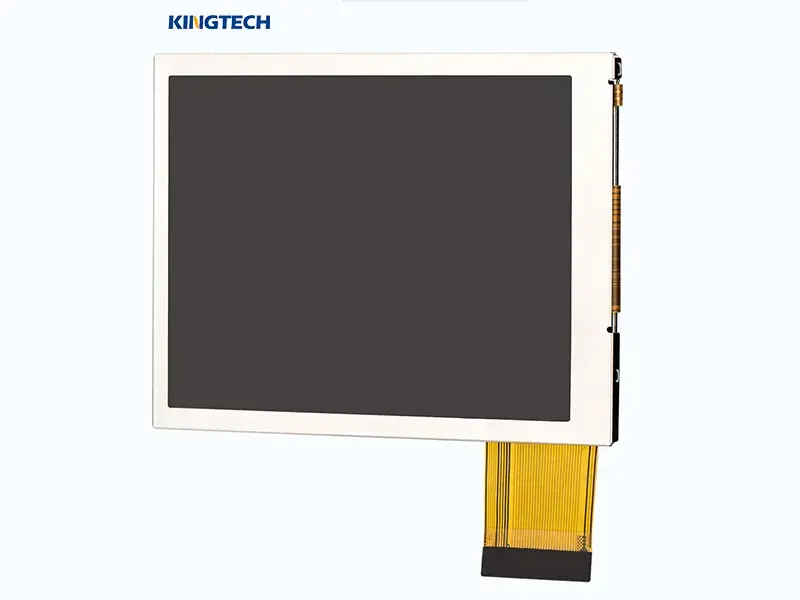

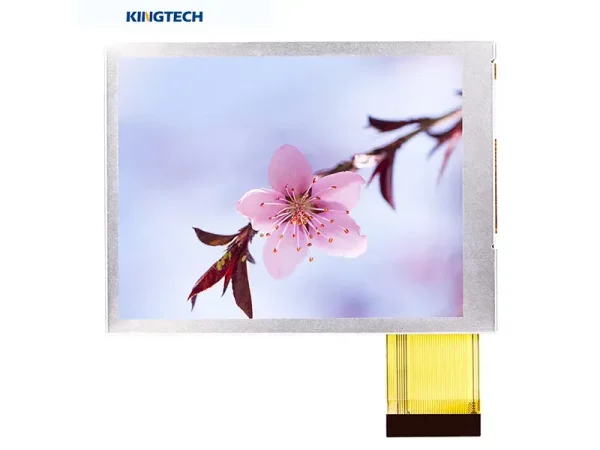

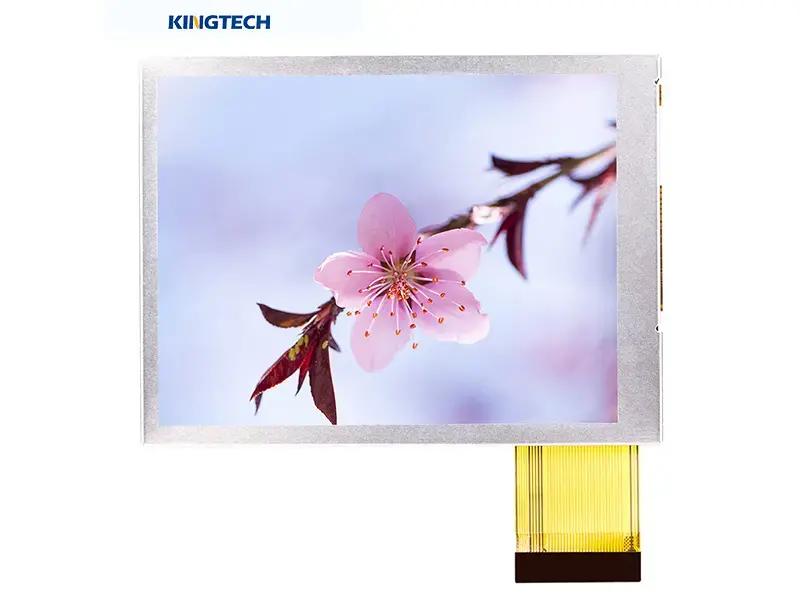

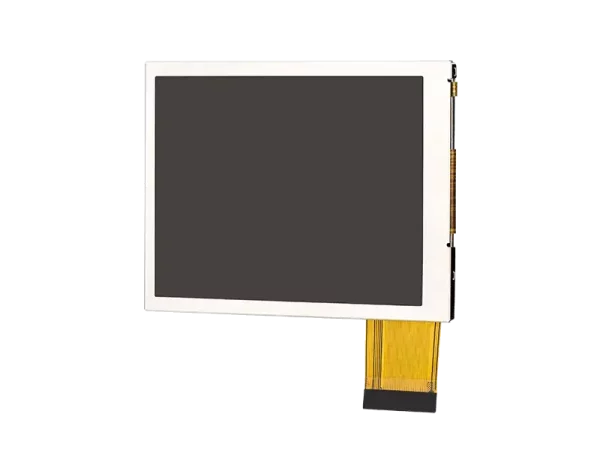

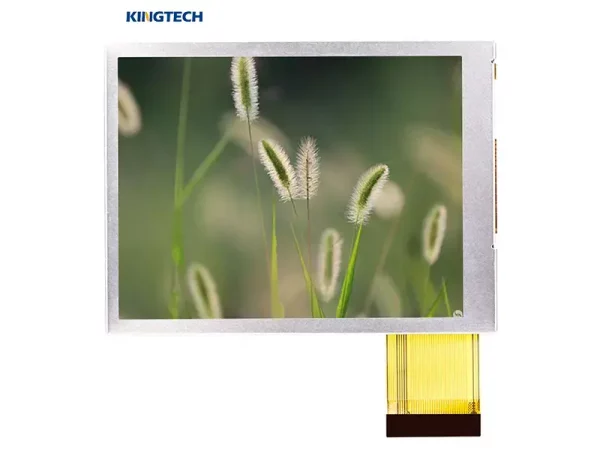

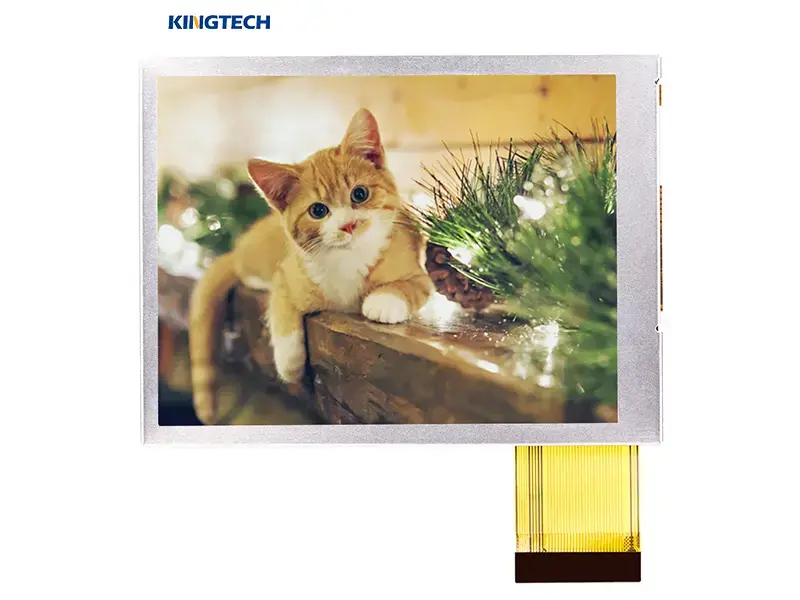

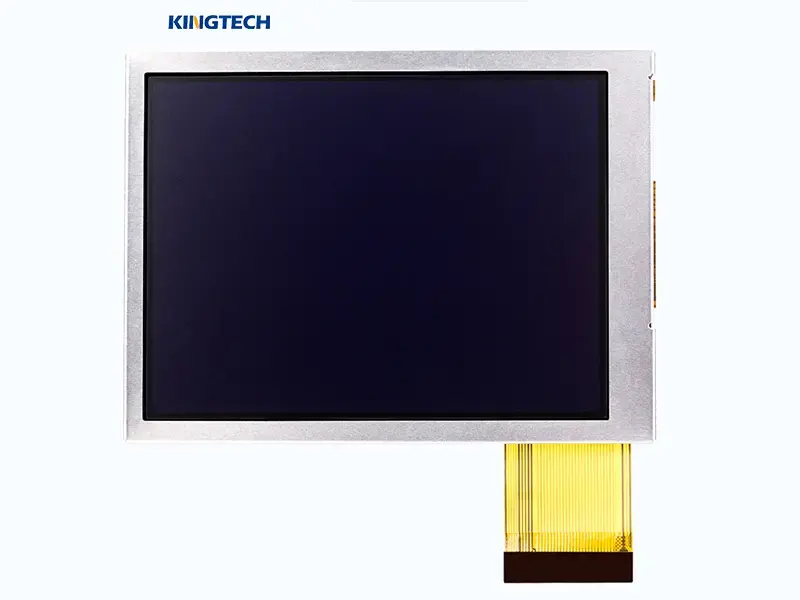

3.5 inch 480×640 SPI + RGB interface LCD display front view

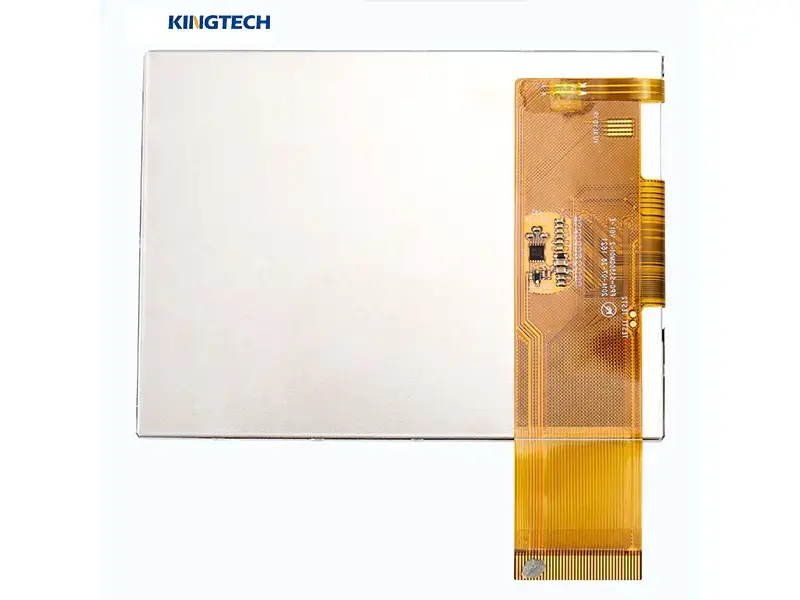

3.5 inch 480×640 SPI + RGB interface LCD display back view

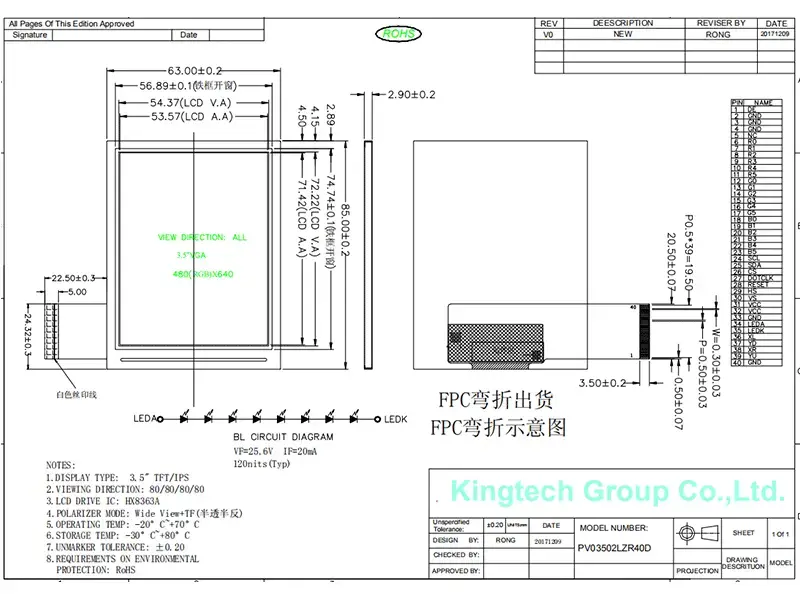

3.5 inch 480×640 SPI + RGB interface LCD display Machine Drawing
