Kingtech 10.1 inch 1920*1200 TFT display

Item10.1 inch  IPS 1920*1200 TFT display
Model No.PV101041W0245G-CT
Resolution1920*1200

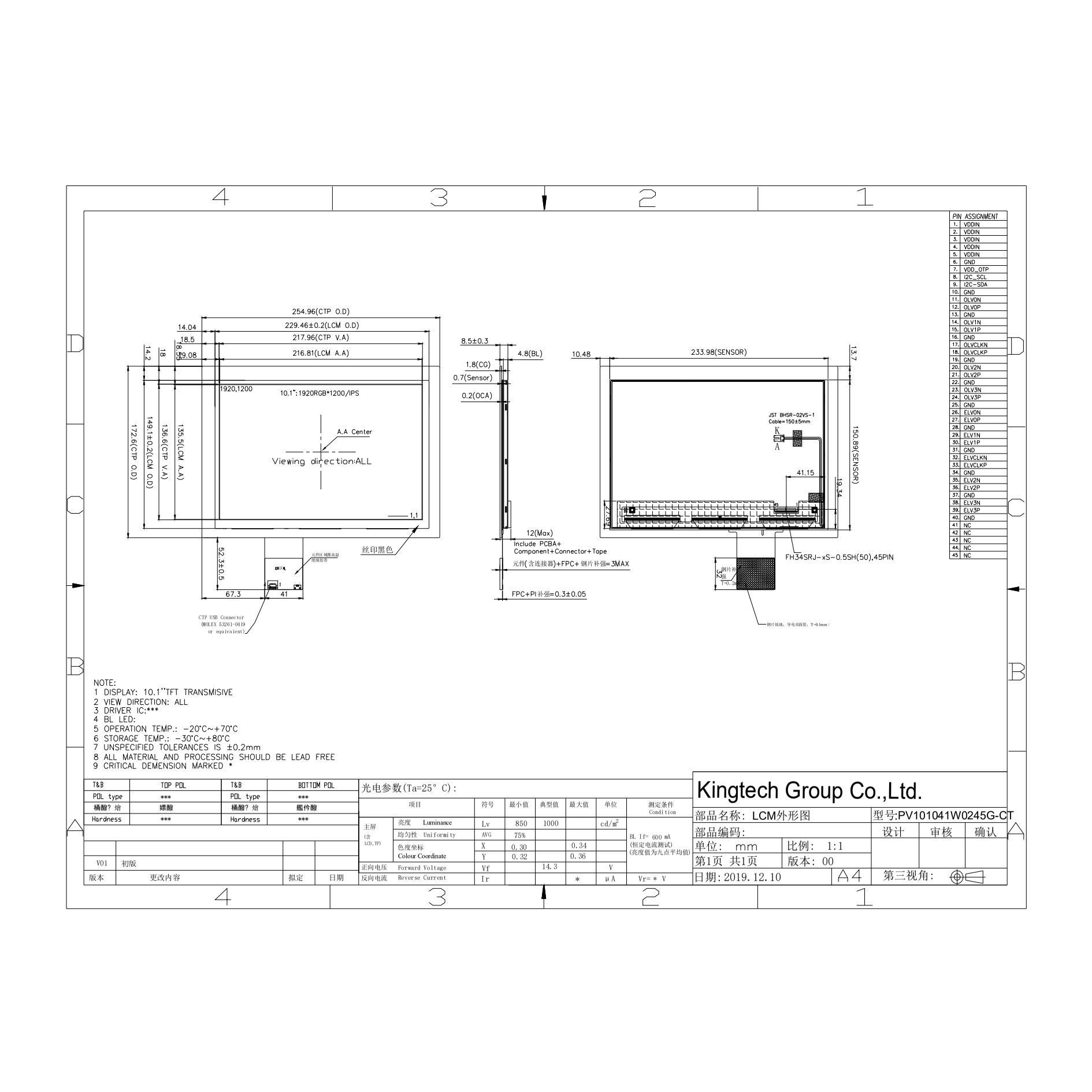

Outline Dimension (mm)254.96*172.6*8.5
Active Area (mm)216.8*135.50
Viewing AngleAll
Brightness1250nits
Interface8bit LVDS interface
Backlight/
Driving IC/
PIN No.45
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationMedical, hand-held device, industrial

For product pricing,customization,or other inquiries:

Share to:

  1. 10.1 inchTFTdisplay
  2. 1920*1200
  3. Stable supply
  4. IPS/Full/Wide/All viewing angle
  5. 8bit LVDS interfaceinterface
  6. 1250nits brightness/Sunlight readable/High brightness/Outdoor
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial

10.1 inch 1920*1200 TFT display
