Kingtech 10.1 inch 1920*1200 TFT LCD module display

Item 10.1 inch IPS 1920*1200 TFT display
Model No. PV101050Y0145R
Resolution 1920*1200

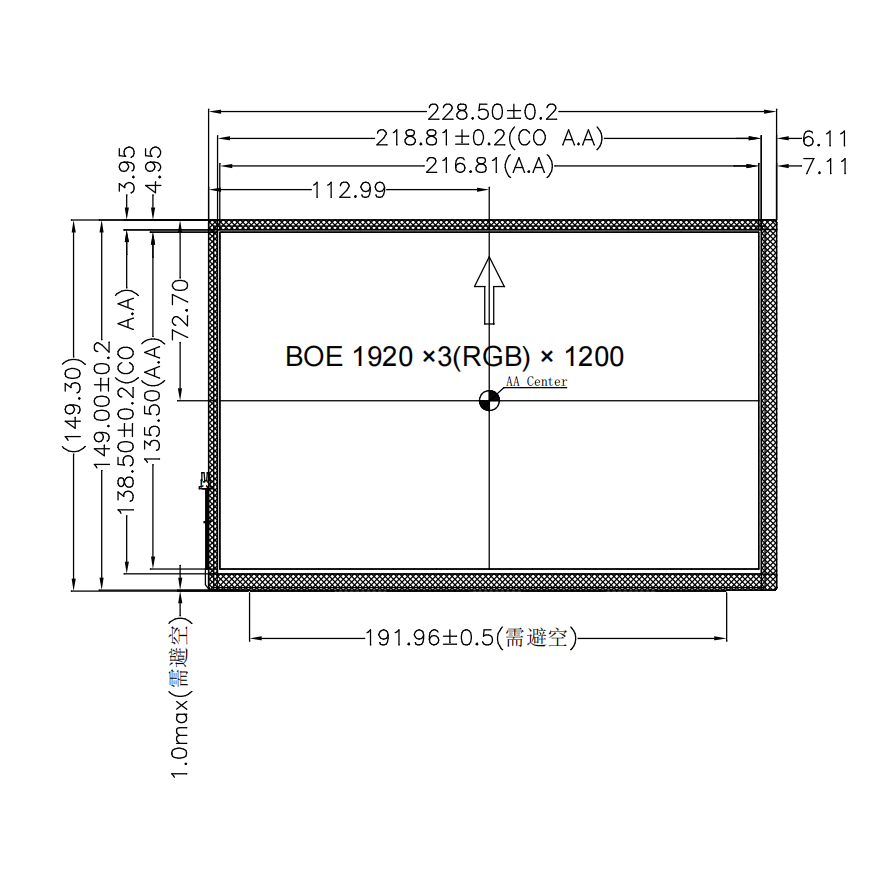

Outline Dimension (mm) 228.5*149.3*4.58
Active Area (mm) 216.81*135.50
Viewing Angle All
Brightness 1000nits
Interface MIPI
Backlight 9*4LED
Driving IC /
PIN No. 45
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial, E-bike

For product pricing,customization,or other inquiries:

Share to:

  1. 10.1 inchTFTdisplay
  2. 1920*1200
  3. Stable supply
  4. IPS/Full/Wide/All viewing angle
  5. MIPIinterface
  6. 1000nits brightness/Sunlight readable/High brightness/Outdoor
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial

Kingtech 10.1 inch 1920*1200 TFT LCD module display

Kingtech 10.1 inch 1920*1200 TFT LCD module display

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
