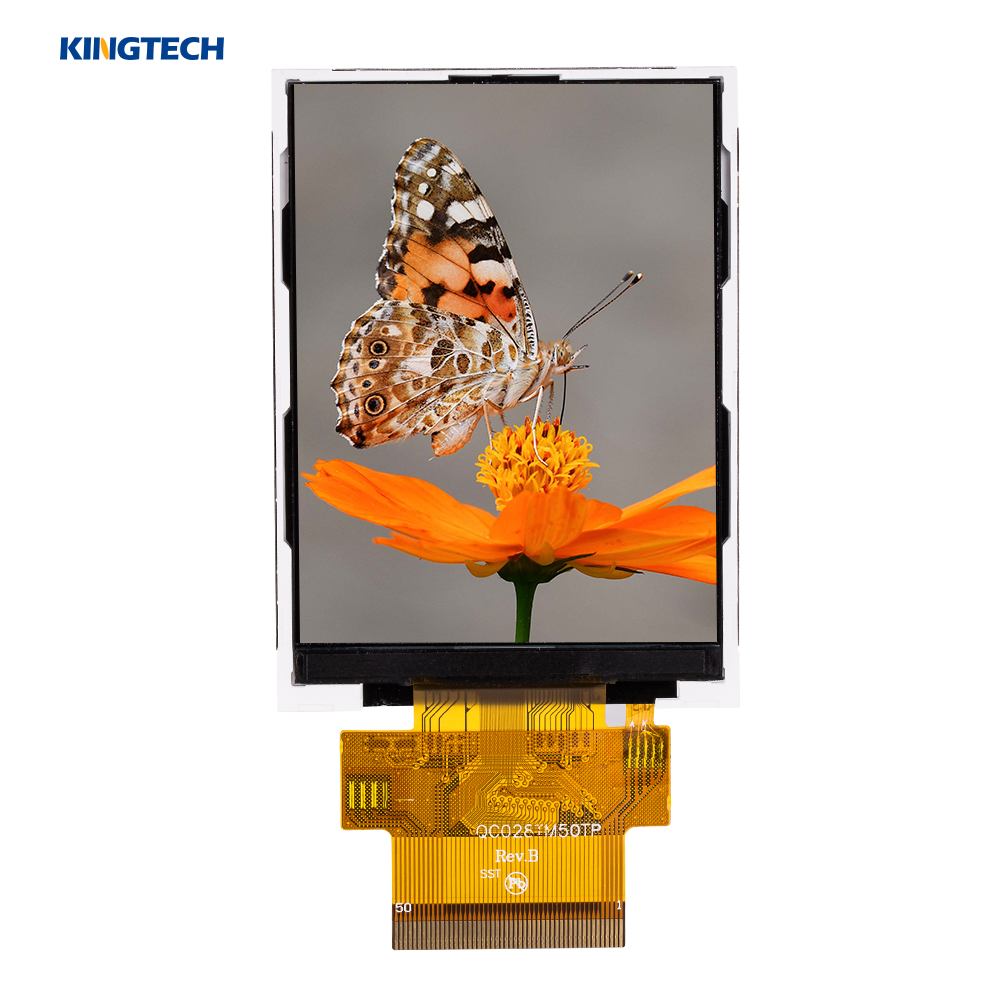

Kingtech 2.8 inch 480*640 TFT display supply very stable

Item2.8 inch IPS 480*640 TFT LCD display

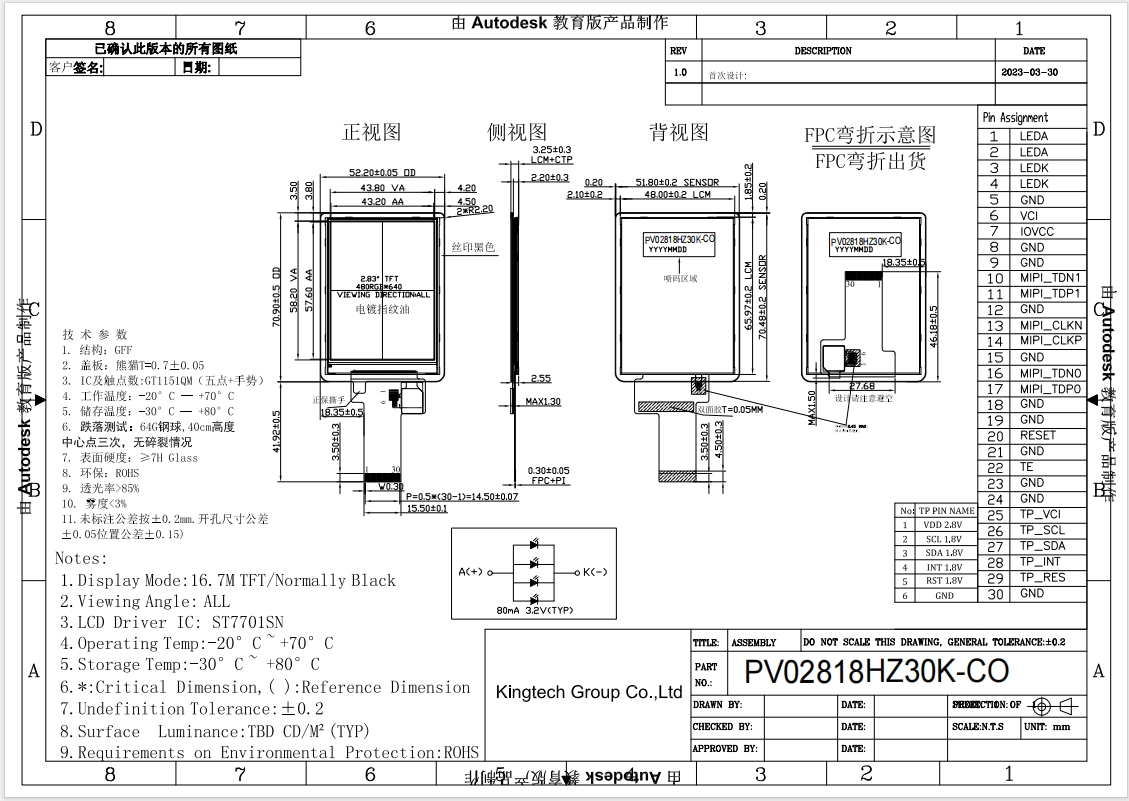

Model No.PV02818HZ30K-CO
Resolution480*640
Outline Dimension (mm)52.20*70.90*3.25
Active Area (mm)43.2*57.6
Viewing AngleAll
Brightness280nits
InterfaceMIPI
Backlight1*4LED
Driving ICST7701SN
PIN No.30
Operating Temperature-20~70
Storage Temperature-30~80
Touch screenCan custom resistive and capacitive touch screen
ApplicationE-Bike, Medical, hand-held device, industrial

For product pricing,customization,or other inquiries:

Share to:

  1. 8 inchTFT display
  2. 480*640
  3. Stable supply
  4. All
  5. MIPIinterface
  6. 280nits brightness
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial
