Kingtech 4.0″ inch 720*720 TFT module display

Resolution720*720

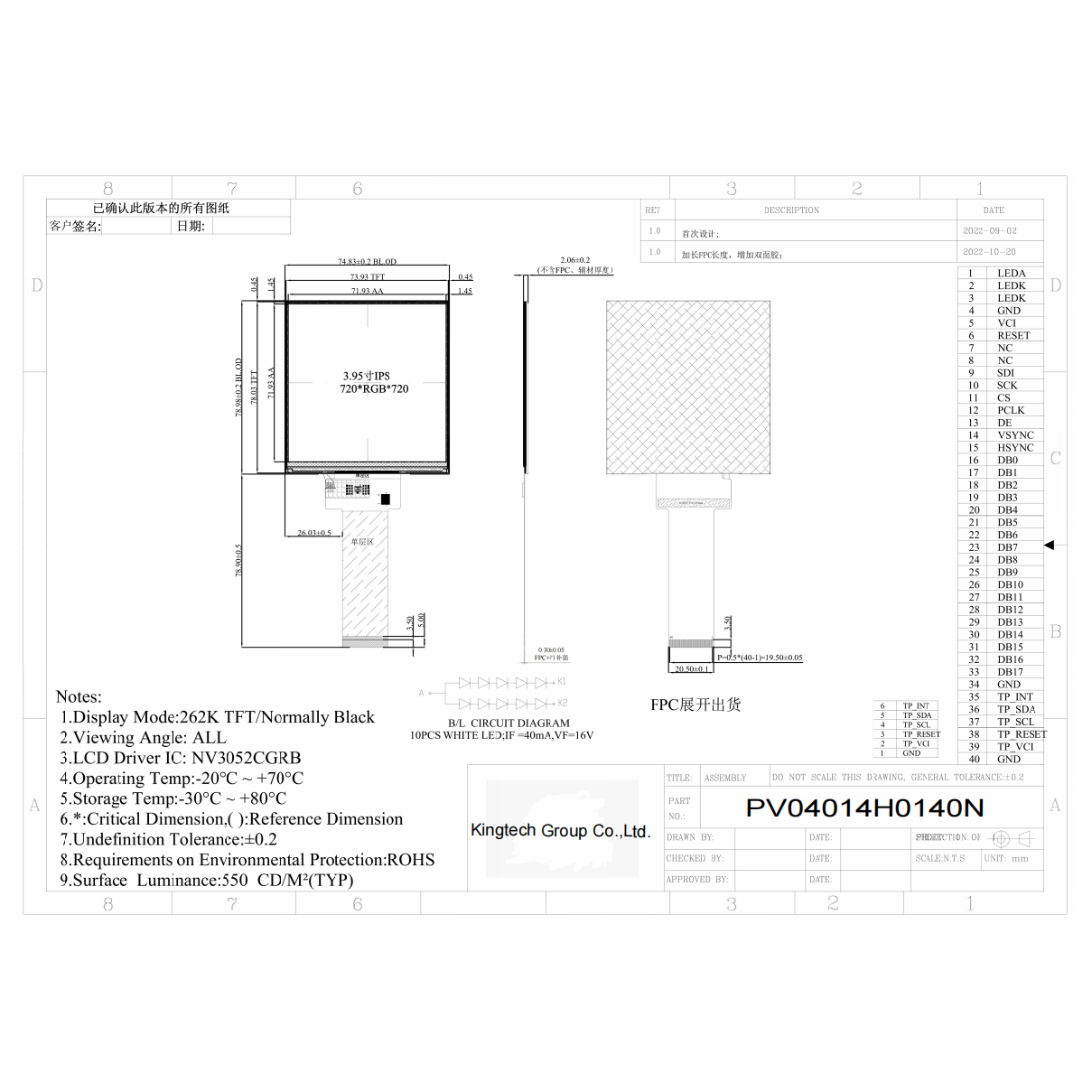

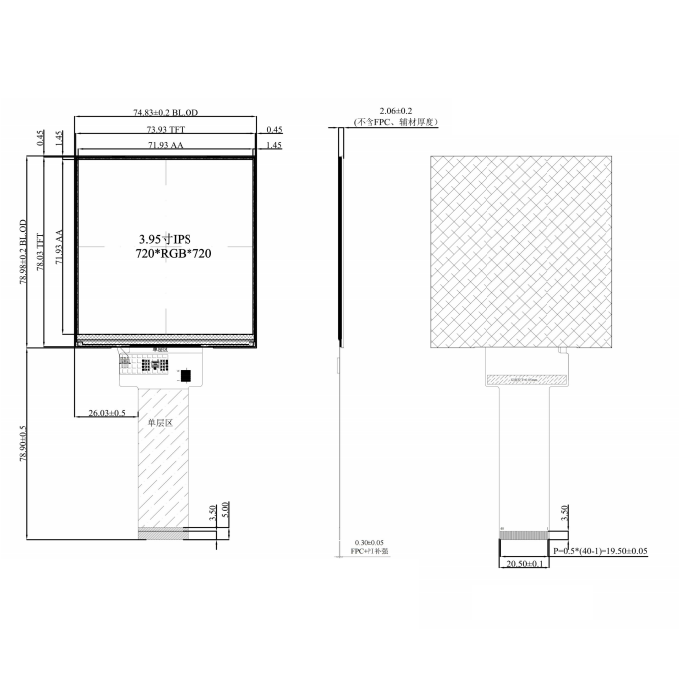

Outline Dimension (mm)74.83*78.98*2.06
Active Area (mm)71.93*71.93
Viewing AngleAll
Brightness550nits
InterfaceRGB
Backlight5*2LEDs
Driving ICNV3052CGRB
PIN No.40
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationE-Bike, Medical, hand-held device, industrial, smart-home

For product pricing,customization,or other inquiries:

Share to:

  1. Square display
  2. Stable supply
  3. 550nits brightness/Sunlight readable/High brightness/Outdoor
  4. Can custom resistive touch and capacitive touch

Kingtech 4.0" inch 720*720 TFT module display Kingtech 4.0" inch 720*720 TFT module display

Kingtech 4.0" inch 720*720 TFT module display Kingtech 4.0" inch 720*720 TFT module display
