Item 4.3 inch IPS 480*272TFT display
Model No. PV043034H0140E
Resolution 480*272

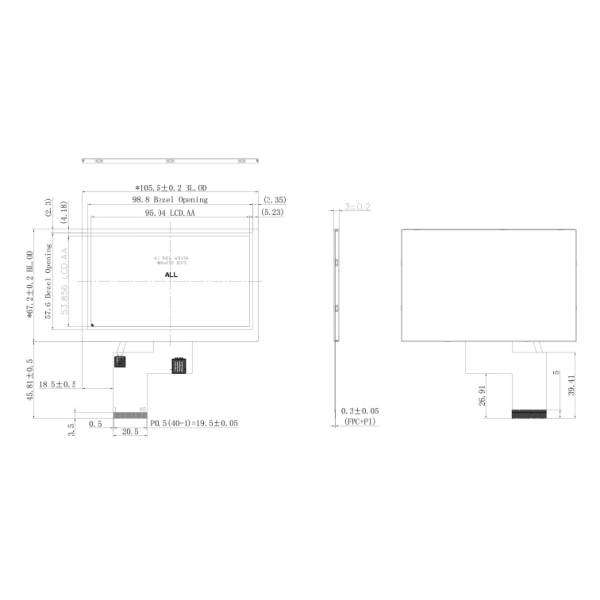

Outline Dimension (mm) 105.5*67.2*3.0
Active Area (mm) 95.04*53.86
Viewing Angle All
Brightness 260nits
Interface RGB
Backlight 7*1LED
Driving IC NV3047E
PIN No. 40
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application E-Bike, Medical, hand-held device, industrial

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. Stable supply
  2. Can custom resistive touch and capacitive touch
  3. Life-time 30000h
