Kingtech 5.0 inch 800*480 TFT module display

Item5.0inch IPS 800*480 TFT display
Model No.PV05032H0120D
Resolution800*480

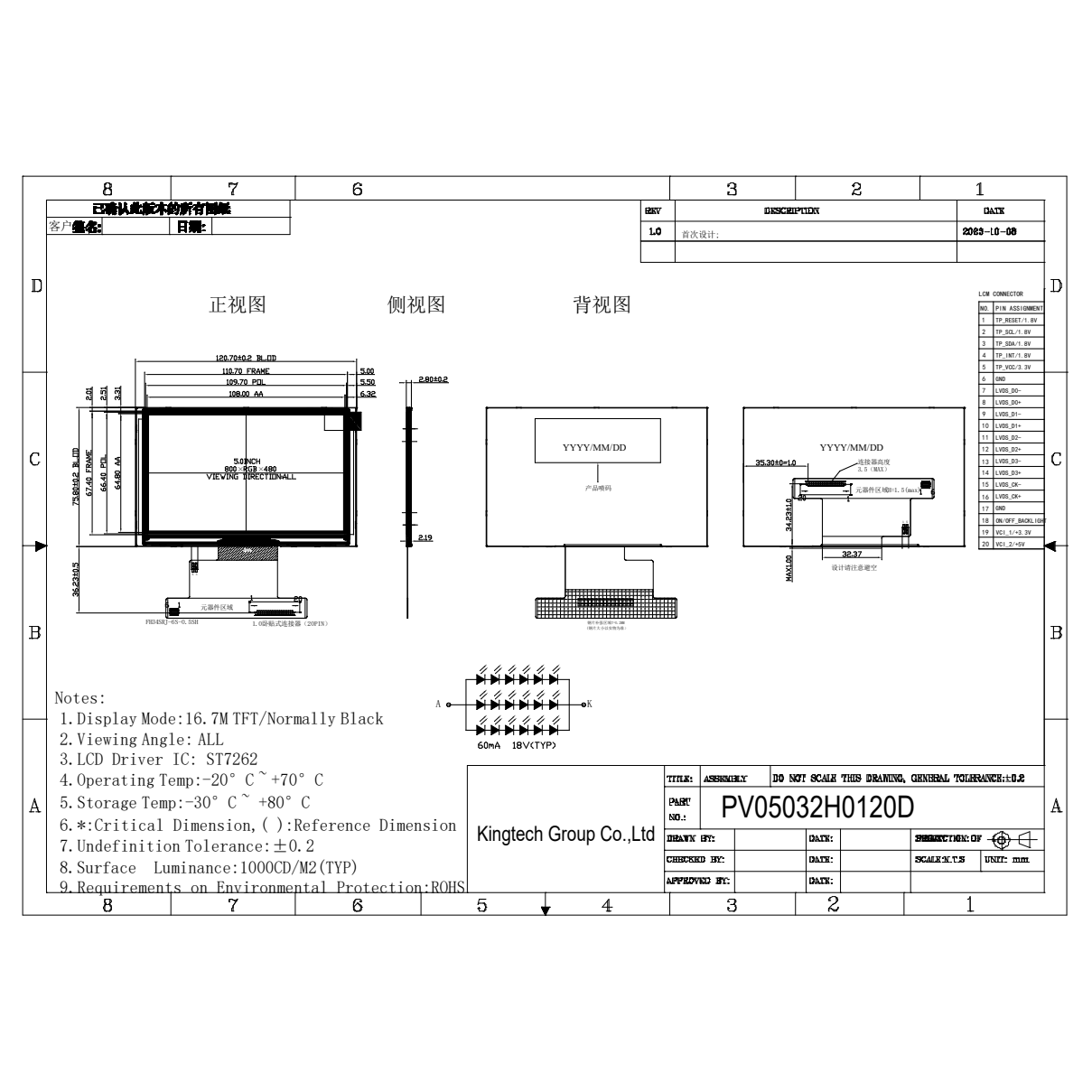

Outline Dimension (mm)120.7*75.80*2.8
Active Area (mm)108*64.8
Viewing AngleAll
Brightness1000
InterfaceLVDS
Backlight6*3LED
Driving ICST7262
PIN No.20
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationMedical, hand-held device, industrial, thermostat

For product pricing,customization,or other inquiries:

Share to:

  1. Stable supply
  2. WVGAresolution
  3. 1000nits brightness/Sunlight readable/High brightness/Outdoor
  4. Can custom resistive touch and capacitive touch
  5. Medical, hand-held device, industrial
