Kingtech 5.0inch Transflecitve TFT LCD module Sunlight readable

Item 5inch WVGA Transfletive LCD display for sunlight readable
Model No. PV05036B0140H
Resolution 800*480

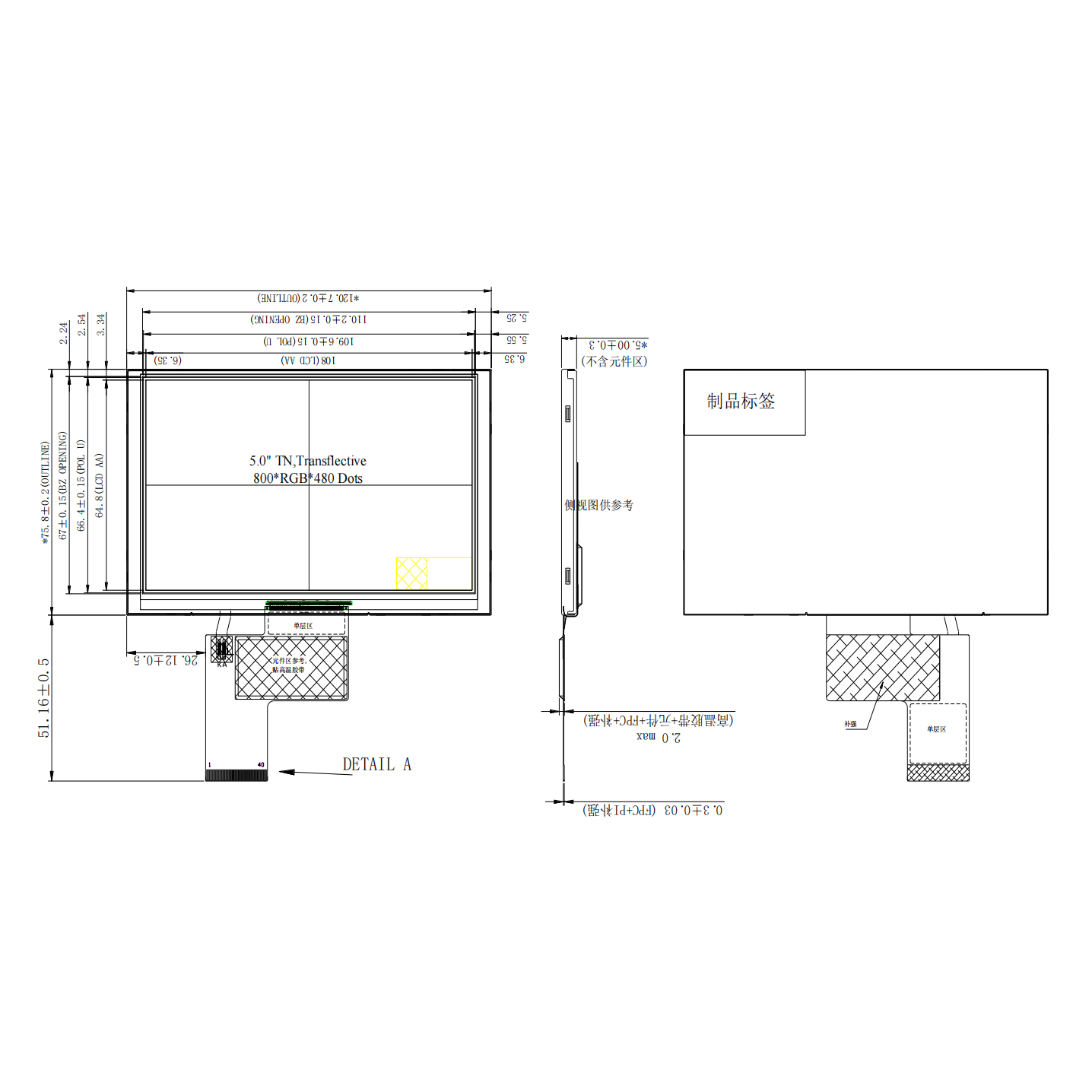

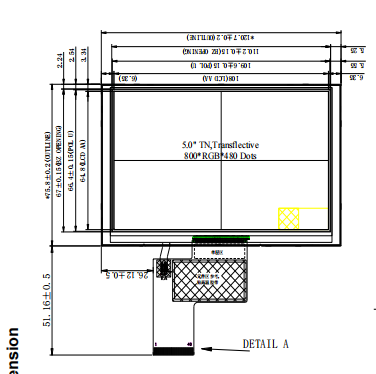

Outline Dimension (mm) 120.70*75.80*5.0
Active Area (mm) 108*64.8
Viewing Angle 6 O’clock
Brightness 200nits
Interface RGB
Backlight /
Driving IC /
PIN No. 40
Operating Temperature -30~85C
Storage Temperature -30~85C
Touch screen Resistive touch and capacitive touch for optional
Application Outdoor application, handheld device, E-bike, Industrial, Medical, Sunlight readable, EV-Chargers.

For product pricing,customization,or other inquiries:

Share to:

  1. Transflective, Sunlight readable, Outdoor device
  2. Wide working temperature, suitable for harsh environments, -30~+85C.
  3. Capacitive Touch or resistive touch optional
  4. Power saving
  5. Designed for outdoor use.

800x480 RGB interface wide temperature -30-85℃

5.0inch Transflecitve TFT LCD module Sunlight readable

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
