Kingtech 5.0inch transmissive TFT LCD module 1000nits outdoor

Item Wide Temperature high brightness 5.0IPS 800x480LCD with Capacitive touch

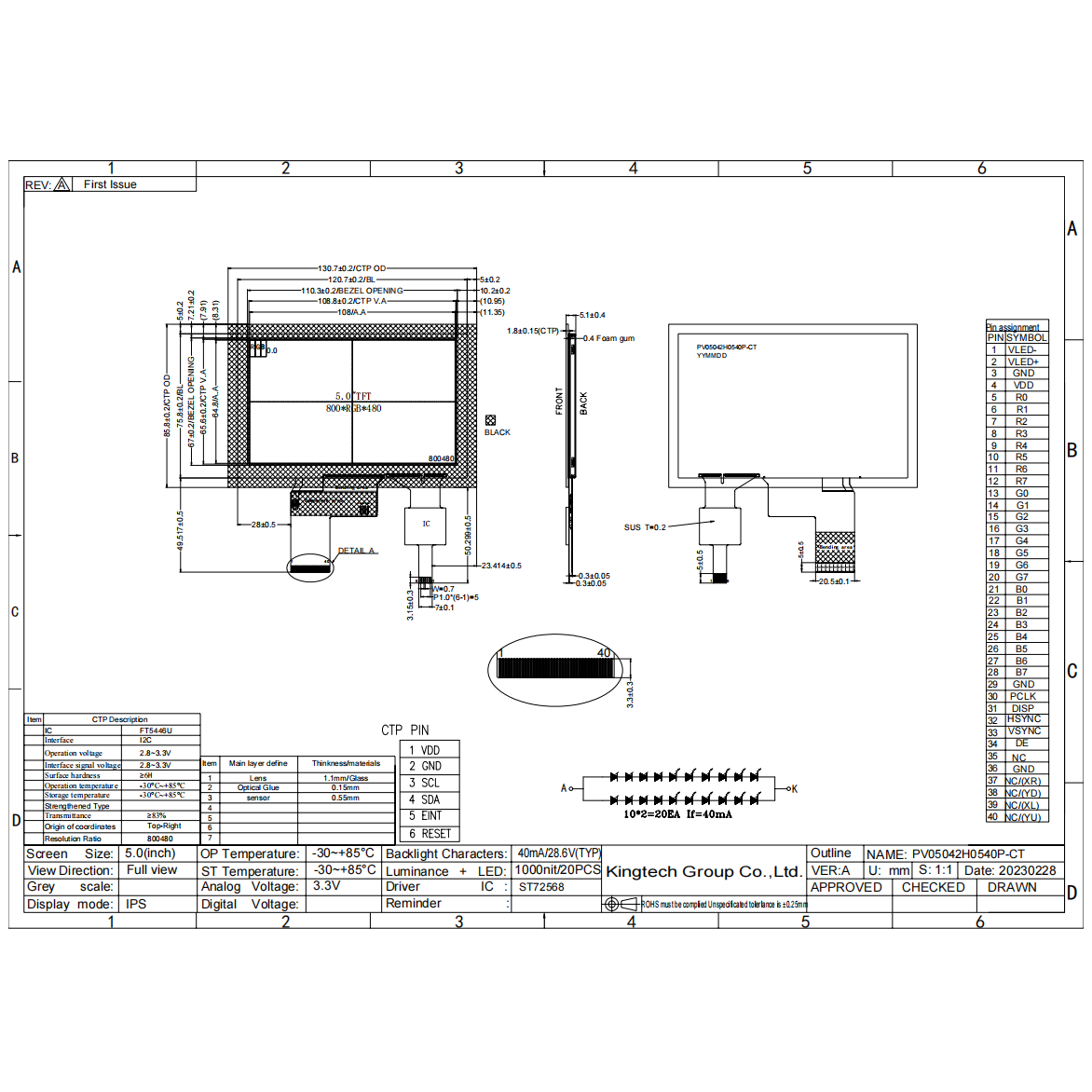

Model No. PV05042H0540P-CT
Resolution 800*480
Outline Dimension (mm) 130.7*85.8*5.1
Active Area (mm) 108.00*64.80
Viewing Angle All
Brightness 1000nits
Interface RGB24bits
Backlight 10*2 LEDs
Driving IC ST72568
PIN No. 40
Operating Temperature -30~85C
Storage Temperature -30~85C
Touch screen Capacitive touch with FT5446U,I2C interface
Application Outdoor application, handheld device, E-bike, Industrial PLC, Traffic camera, EV-chargers

For product pricing,customization,or other inquiries:

Share to:

  1. Sunlight Readable/ High brightness/ 1000nits/ Outdoor
  2. Wide working temperature / -30-85C
  3. Better compatibility with customer’s board, Standard RGB interface 40pins
  4. Resistive touch, Capacitive touch optional

800x480 1000nits outdoor

800x480 1000nits outdoor

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
