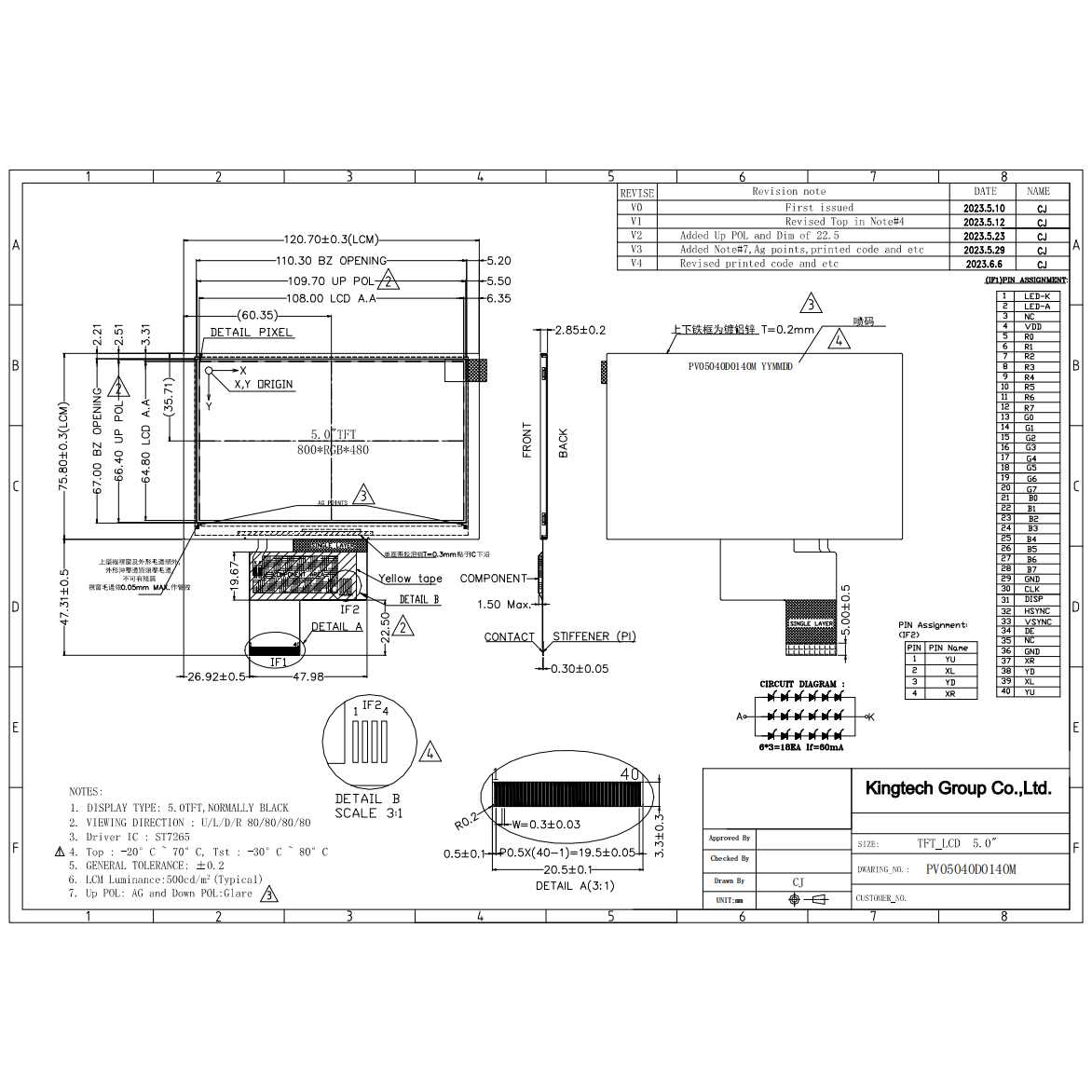

Kingtech 5.0inch transmissive TFT LCD module

Item5.0inch IPS 800×480 LCD RGB interface with 40pins standard
Model No.PV05040D0140M
Resolution800*480
Outline Dimension (mm)120.70*75.80*2.85
Active Area (mm)108.00*64.80
Viewing AngleIPS
Brightness500nits
InterfaceRGB
Backlight6S3P-LEDs (white)
Driving ICST7265
PIN No.40
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenResistive touch and capacitive touch for optional
ApplicationMedical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers etc

For product pricing,customization,or other inquiries:

Share to:

  1. 5inch IPS 800×480 / WVGA
  2. Better compatiblity with customer’s board, Standard RGB interface 40pins
  3. Resistive touch, Capacitive touch optional
