Kingtech 6.0inch AMOLED display module with capacitive touch
| Item | 6.0inch 1080×2160 Amoled display with Capacitive touch |
| Model No. | DW60QVSA11H1FQ |
| Resolution | 1080*2160 |

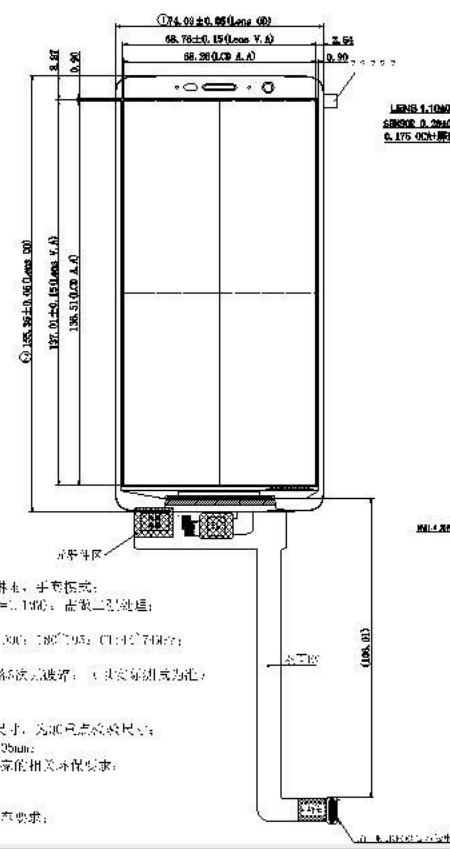

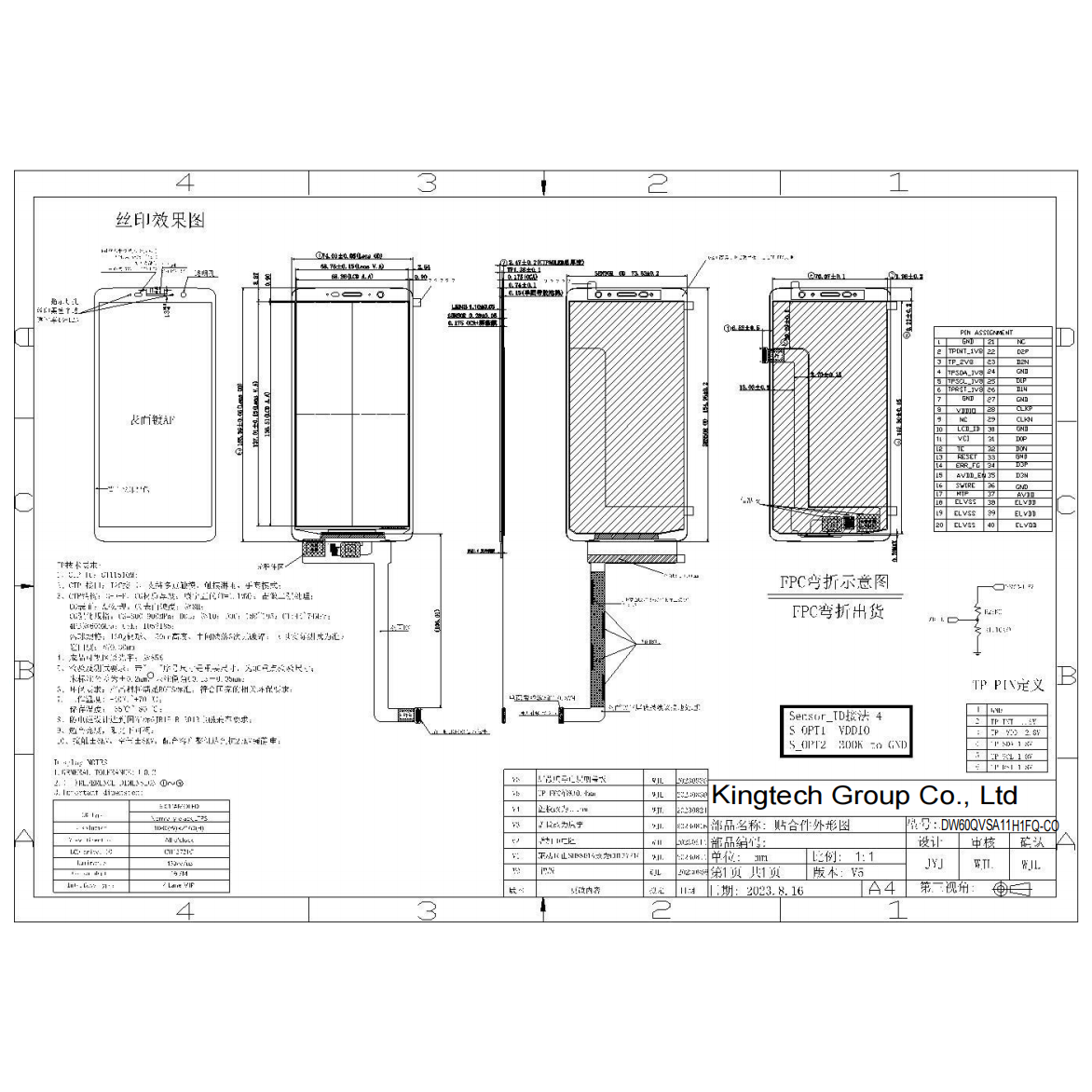

| Outline Dimension (mm) | 74.03*155.36*2.47 |
| Active Area (mm) | 68.256*136.512 |
| Viewing Angle | All |
| Brightness | 450nits |
| Interface | MIPI |
| Backlight | No backlight, Amoled exide light automatically |
| Driving IC | CH13721C |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive Touch IC GT1151QM (I2C interface), 10 points touch |
| Application | Pos machine, 3D Printer, ATM machine, Medical, Hand-held device, Industrial, vehicle |
For product pricing,customization,or other inquiries:
Share to:
- 0inch Amoled
- High resolution 1080×2160
- 2K resolution
- All /Free/Wide/ IPS viewing angle
- Capacitive Touch optional
Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.
To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.
As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
