Kingtech 7 inch TFT colorful LCD module all viewing angle IPS panel

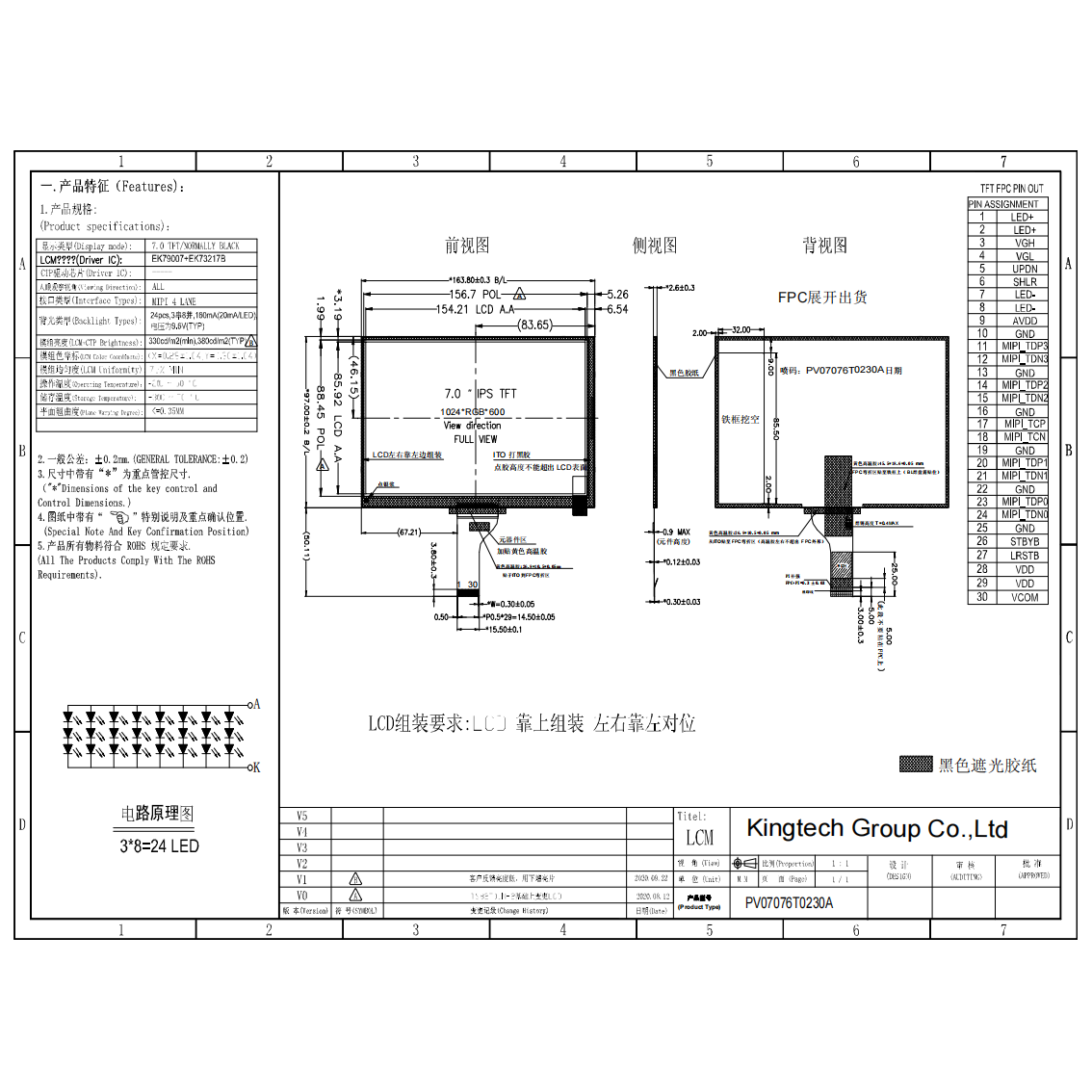

Item 7.0inch IPS 1024*600 LCD module
Model No. PV07076T0230A
Resolution 1024*600
Outline Dimension (mm) 163.8*97*2.6
Active Area (mm) 154.21*85.92
Viewing Angle All
Brightness 380nits
Interface MIPI
Backlight 3*8LEDs
Driving IC EK79007+EK73217B
PIN No. 30
Operating Temperature -20~50C
Storage Temperature -20~70C
Touch screen Optional
Application Medical, hand-held device, industrial, outdoor, advertising, ATM, E-bike.

For product pricing,customization,or other inquiries:

Share to:

  1. 7 inch IPS LCD
  2. MIPI
  3. Capacitive Touch or resistive touch optional

7" IPS panel MIPI interface LCD display

7" IPS panel MIPI interface LCD display

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
