800X1280 MIPI IPS universal 7 tft lcd touch screen

Item7inch 800×1280 MIPI LCD display
Model NoPV07040T0240R
Resolution800×1280
Outline Dimension99.59*160.88*2.33
Active Area(mm)94.2*150.72
InterfaceMIPI Interface
Viewing AngleAll
Driver ICJD9365DA-H3
Display ModeTransmissive / Normally Black
Operating Temperature-10℃~60℃
Storage Temperature-20℃~70℃
Brightness1100nits

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×1280 resolution MIPI interface 1100nits high brightness IPS LCD display vertical screen



1. PV07040T0240R mainly application for smart HOME,armarium,industrial device , logistics device.

2. It support MIPI 4 line interface. It with 800×1280 high resolution, 1100nits high brightness/sunlight readable, IPS / Full / All/ Wide viewing angle , JD9365DA-H3 Driver IC, 500 nits high brighness, gresat display effect .

3. It also can custom touch panel as customer ‘s requirement .

4. It is high brightness can be sunlight readable , can be well used for both indoor and outdoor .

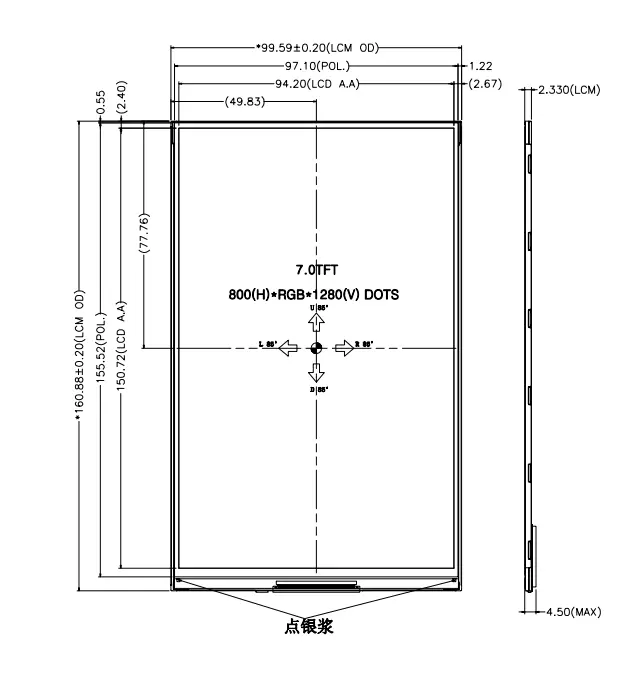

7 inch MIPI interface screen front view .

PV07040T0240R front

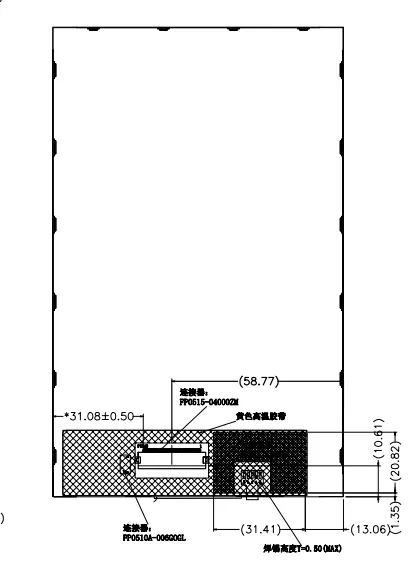

7 inch sunlight readable display module back view

PV07040T0240R back
