Kingtech 7inch WVGA TN LCD display module

Item7.0 inch TFT 800×480 module display
Model No.PV07043Y0140U
Resolution800*480

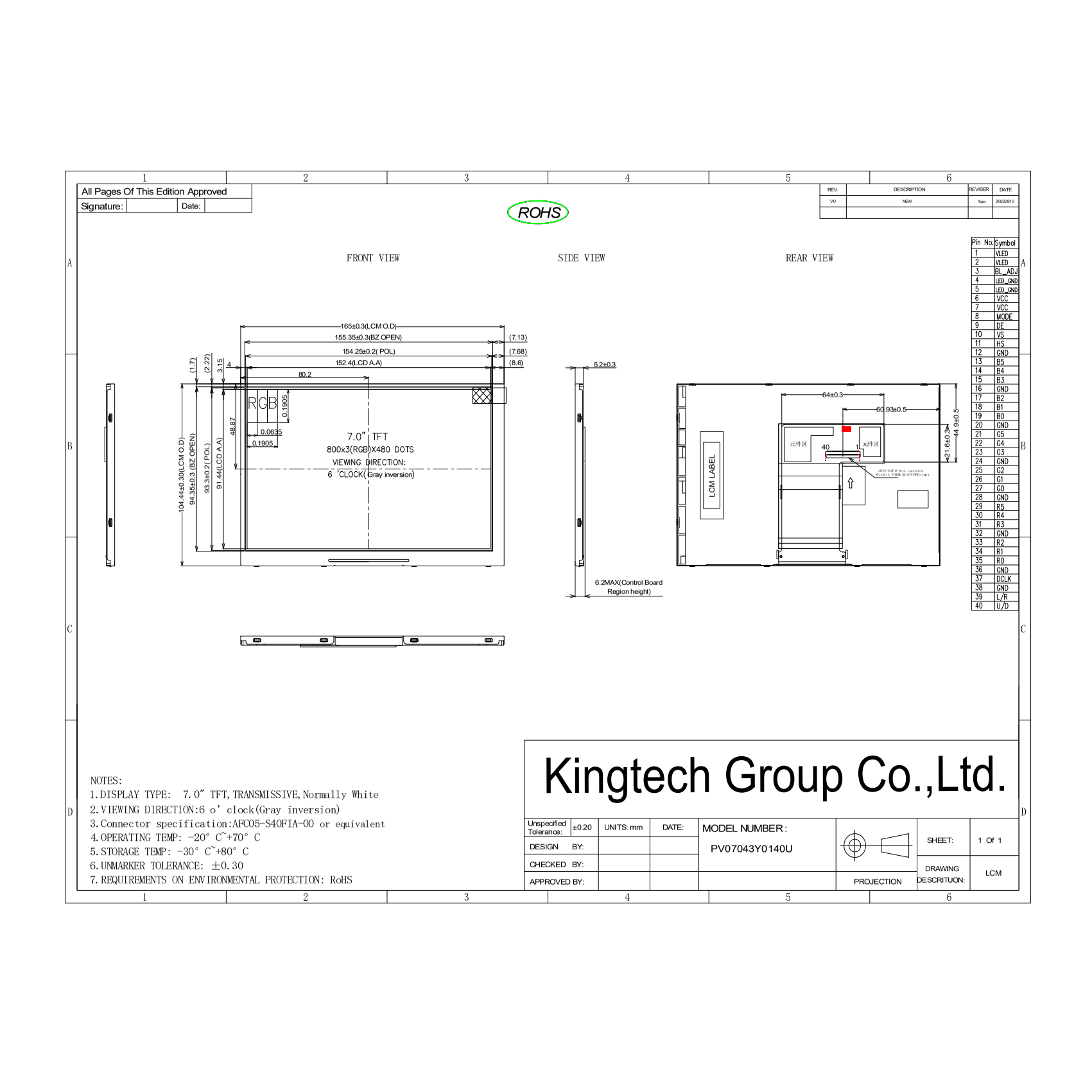

Outline Dimension (mm)165*104.44*5.20
Active Area (mm)152.40*91.44
Viewing Angle6 o’clock
Brightness550nits
Interface18bit RGB Interface
Backlight3*8LED
Driving IC/
PIN No.40
Operating Temperature-20~70
Storage Temperature-30~80
Touch screenSupport capative touch screen
ApplicationIndustrial equipment, small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator.

For product pricing,customization,or other inquiries:

Share to:

  1. Replacement for Innolux AT070TN83 V.1 and sharp LQ070Y3DG3B_(LD-21305A)
  2. 7inch TN LCD display module
  3. 800×480 /WVGA
  4. 550nits /high brightness/sunlight readable
  5. 18bit RGB interface
  6. Support capacitive touch
