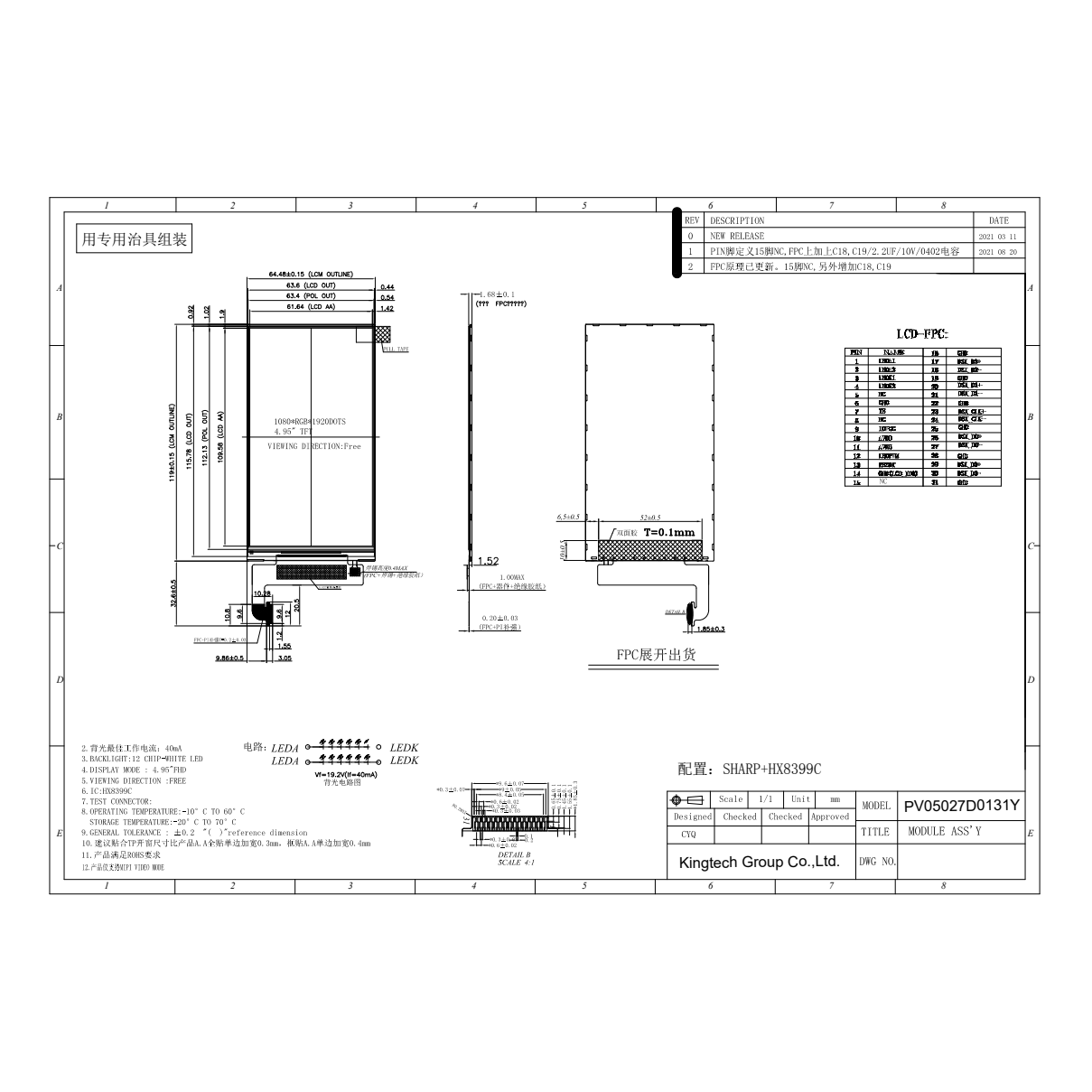

Item | 4.97inch IPS 1080×1920 module display |
Model No. | PV05027D0131Y |
Resolution | 1080*1920 |
Outline Dimension (mm) | 105.5*67.2*2.90 |
Active Area (mm) | 61.64*109.58 |
Viewing Angle | All |
Brightness | 500nits |
Interface | MIPI |
Backlight | 6*2LED |
Driving IC | HX8399C |
PIN No. | 31 |
Operating Temperature | -10~60C |
Storage Temperature | -20~70C |
Touch screen | Resistive touch and capacitive touch for optional |
Application | Mobile phone, telecom device, handheld device, E-bike |
