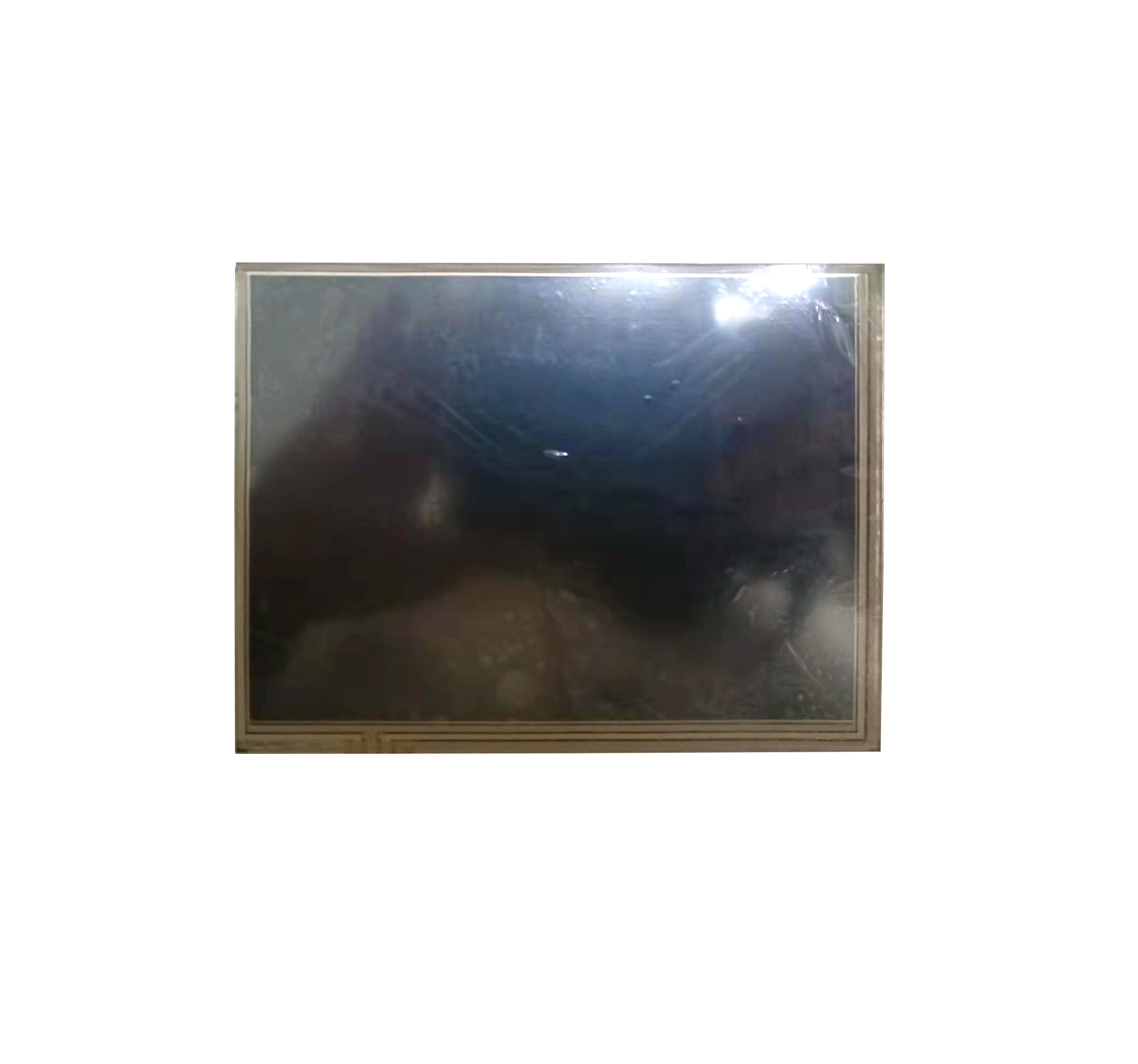

Kingtech PV05708D0140J-CT is a 5.7 inch 640×480 dots TFT LCD module

Item5.7inch 640×480 LCD with capacitive touch LCD module
Model No.PV05708D0140J-CT
Resolution640*480

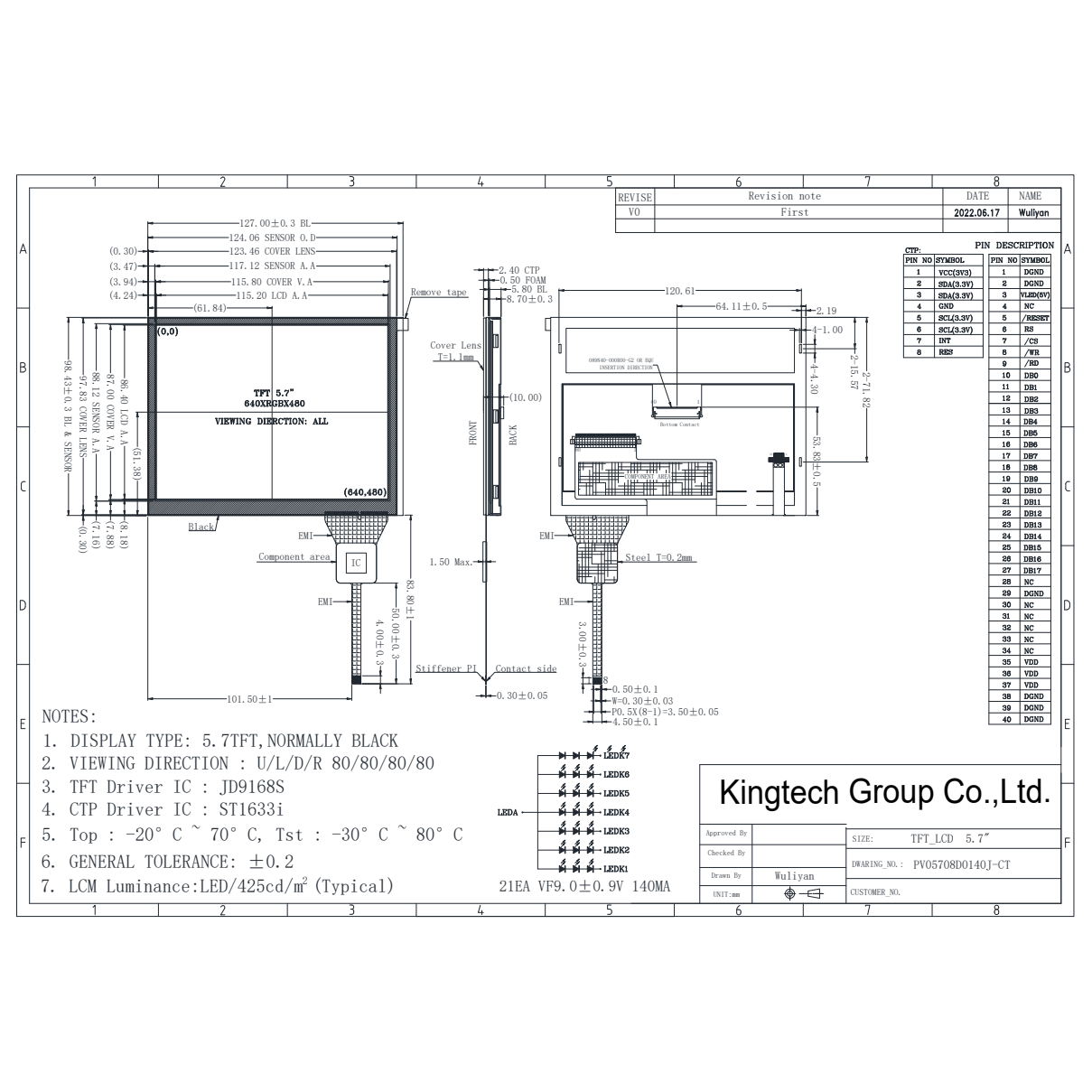

Outline Dimension (mm)127.00*98.43*8.7
Active Area (mm)115.20*86.40
Viewing AngleAll
Brightness425nits
InterfaceRGB
Backlight3*7LED
Pin nums40
Driving ICJD9168S+ST1633I
PIN No.40
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCapacitive touch optional
ApplicationIndustrial, Medical, Smart Home, Home appliance, Meter

For product pricing,customization,or other inquiries:

Share to:

  1. 5.7 inch 640×480 LCD with capacitive touch
  2. Full/All/Wide viewing angle
  3. Brightness is 425nits
  4. Capacitive Touch can be customized

5.7 inch 640x480 dots TFT LCD module
