Kingtech PV05709D0140K-R is 5.7inch TFT colorful LCD module 1000nits for outdoor

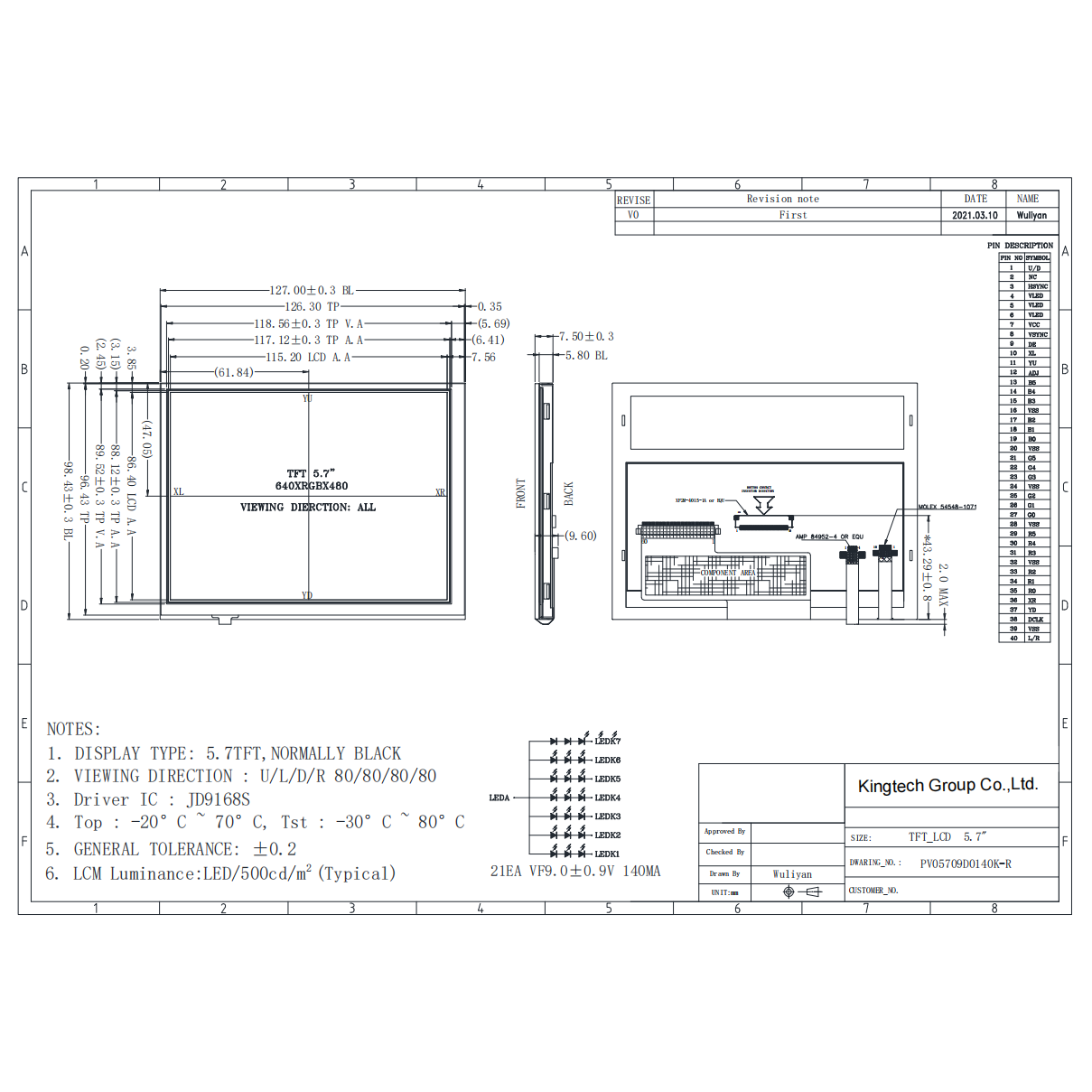

Item 5.7inch IPS 640×480 dots with resistive touch
Model No. PV05709D0140K-R
Resolution 640*480
Outline Dimension (mm) 127.0*98.43*7.5
Active Area (mm) 115.20*86.40
Viewing Angle IPS
Brightness 500nits
Interface RGB interface
Backlight 3*7 LEDs
Driving IC JD9168S
PIN No. 40
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen RTP optional
Application Industrial,Medical,Communication equipment

For product pricing,customization,or other inquiries:

Share to:

  1. 5.7inch IPS LCD More square
  2. 640x480dots
  3. resistive touch optional
  4. 500nits/ High brightness / Sunlight readable/ Outdoor

640x480 1000nits RGB interface LCD Display

640x480 1000nits RGB interface LCD Display

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
