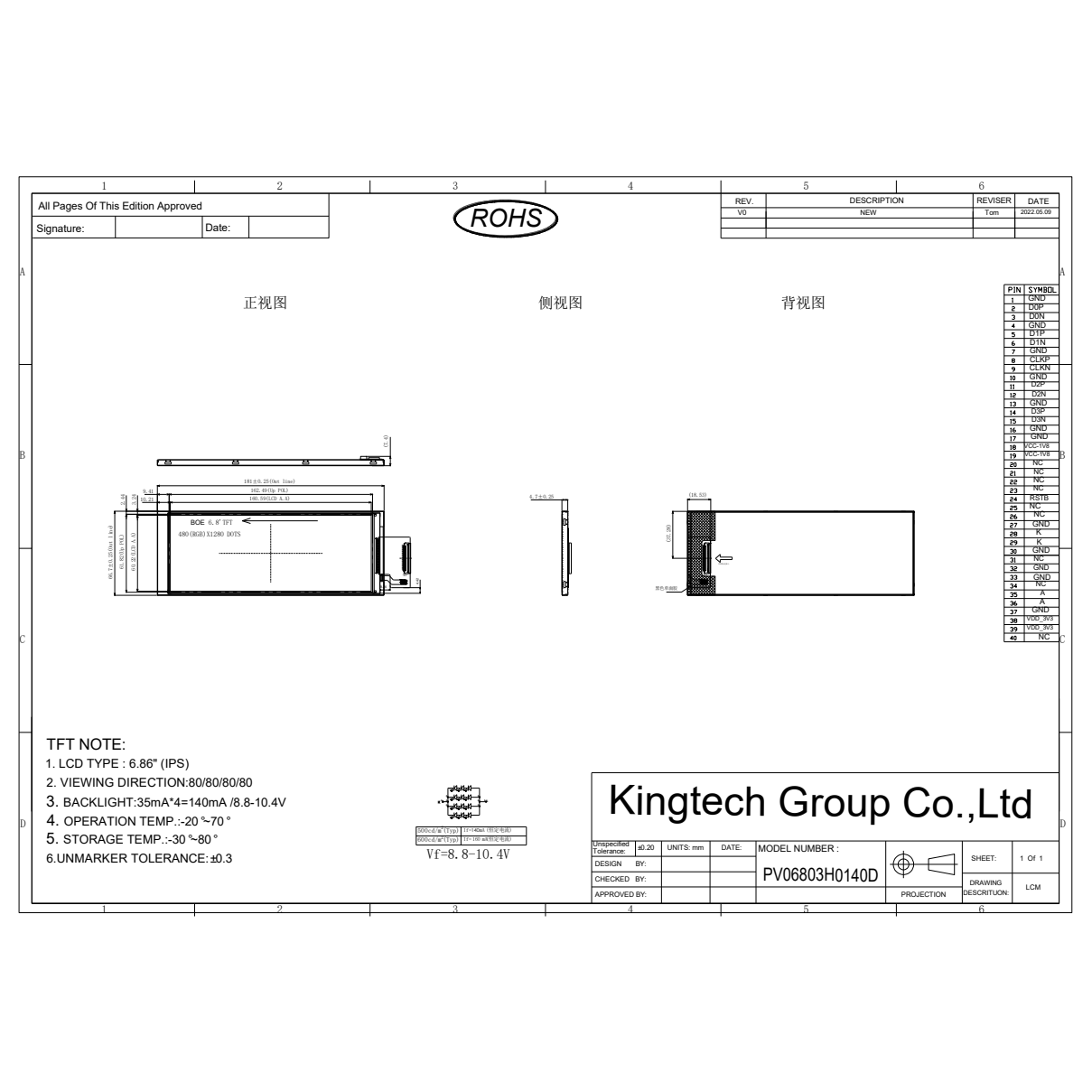

Kingtech PV06803H0140D is bar type TFT LCD display. It is 6.8 inch with a resolution of 480*1280.

Item6.8inch 480×1280 bar type LCD module
Model No.PV06803H0140D
Resolution480*1280
Outline Dimension (mm)66.7*181*4.7
Active Area (mm)60.22*160.59
Viewing AngleAll
Brightness500nits
InterfaceMIPI
Backlight3*4LED
Driving ICICN9707
PIN No.40
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCapacitive touch optional
ApplicationIndustrial, Medical, refrigerator, washing machine, electric vehicle dashboards, digital electronics, advertising, computer sub-screens, vehicle and other products

For product pricing,customization,or other inquiries:

Share to:

  1. Bar type, strip-shaped
  2. IPS, normally black, negative display type
  3. Full/Wide/All viewing angle
  4. Bar type,strip-shaped
  5. High brightness/Sunlight readable/Outdoor
  6. Support MIPI interface.
  7. Touch optional

6.8 inch with a resolution of 480*1280

6.8 inch with a resolution of 480*1280
