Kingtech PV07039T0240Q-CO is a 7 inch LCD module 1200×1920 resolution FHD

Item 7.0 inch IPS FHD LCD module with CTP
Model No. PV07039T0240Q-CO
Resolution 1200*1920

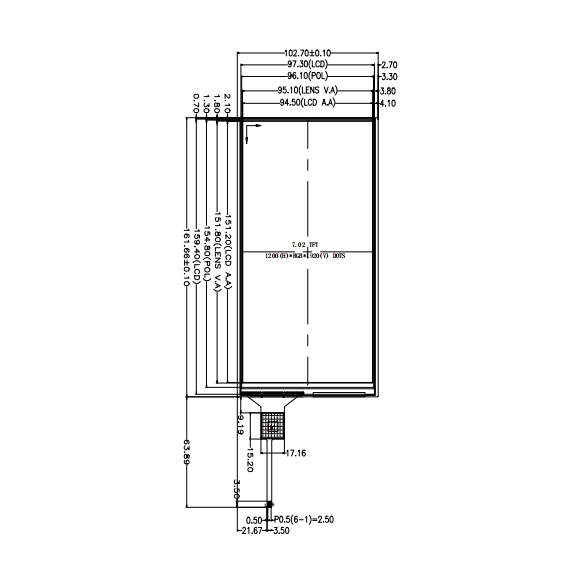

Outline Dimension (mm) 102.70*161.66*4.01
Active Area (mm) 94.50*151.20
Viewing Angle IPS
Brightness 300nits
Interface MIPI
Backlight 5*4LED
Driving IC HX8279
PIN No. 40
Operating Temperature -10~60C
Storage Temperature -30~70C
Touch screen Optional
Application Tablet PC, consumer Electronics, 5G device,Digital photo frame

For product pricing,customization,or other inquiries:

Share to:

  1. FHD resolution 1200×1920
  2. Portrait, vertical shaped
  3. Full/Wide/All viewing angle
  4. With CTP available

1200x1920 resolution FHD LCD Display

1200x1920 resolution FHD LCD Display 1200x1920 resolution FHD LCD Display

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
