Kingtech PV07066Y0140T is a 7-inch 1280×800 landscape LCD module using IPS TFT-LCD technology

Item 7.0 inch IPS 1280*800 LCD module
Model No. PV07066Y0140T
Resolution 1280*800

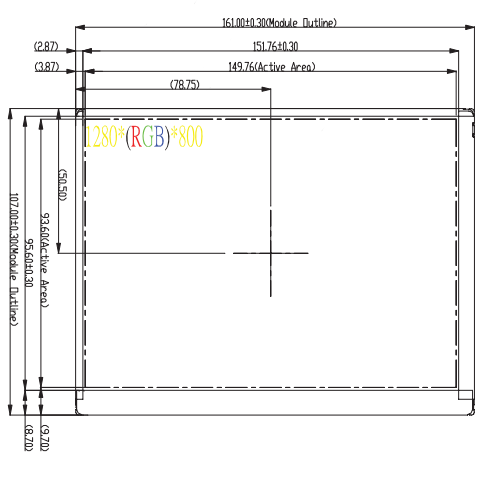

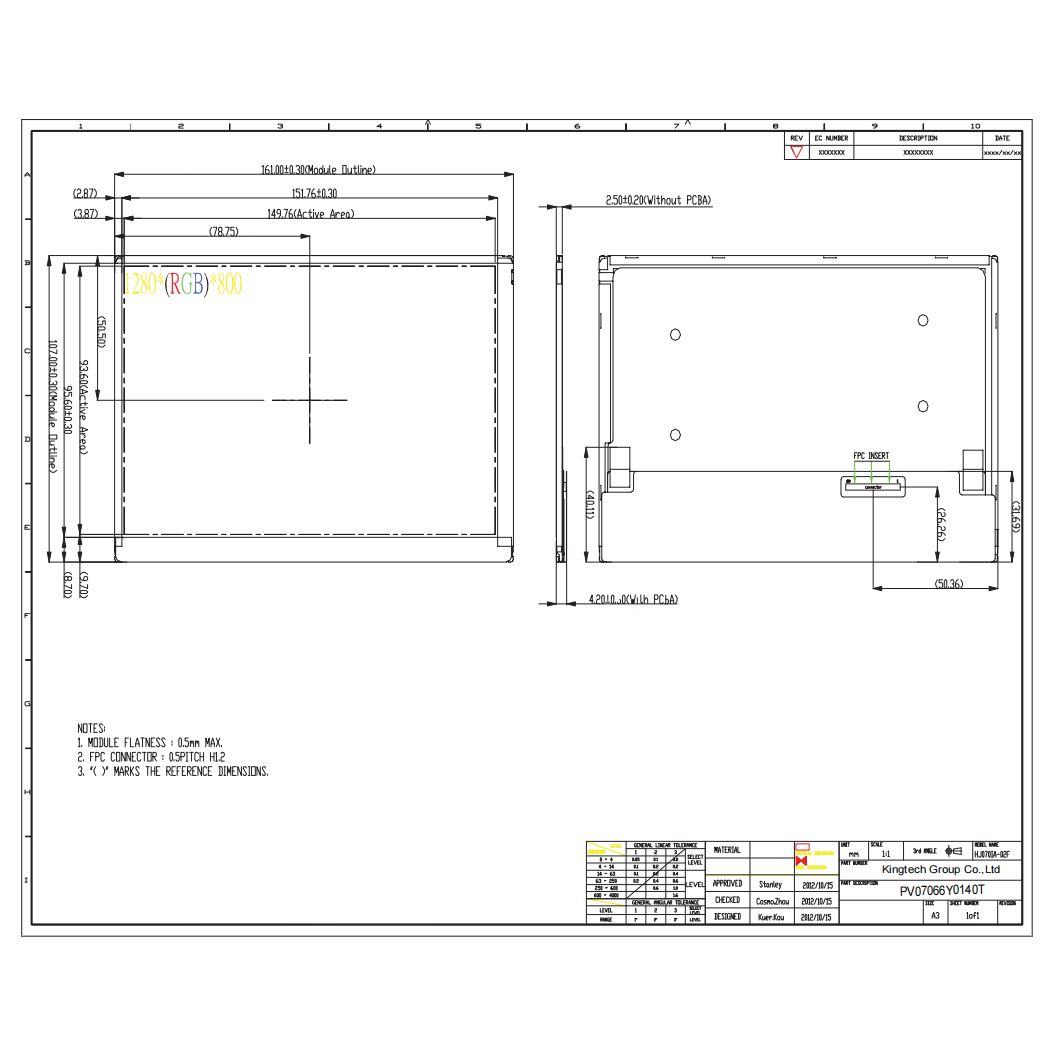

Outline Dimension (mm) 161.0*61.0*2.5
Active Area (mm) 149.76*93.6
Viewing Angle IPS
Brightness 350nits
Interface LVDS
Backlight 5*4LED
Pin nums 40
Driving IC /
PIN No. 40
Operating Temperature -10~50C
Storage Temperature -20C~60C
Touch screen Capacitive touch optional
Application Medical, hand-held device, industrial, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer.

For product pricing,customization,or other inquiries:

Share to:

  1. High resolution shows sharp clear image-1280×800
  2. WXGA resolution
  3. Landscape, Horizontal shaped
  4. Full/Free/All/Wide viewing angle
  5. Touch optional

1280x800 IPS TFT LCD WXGA resolution

1280x800 IPS TFT LCD WXGA resolution

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
