Kingtech PV08017H0140T 8 inch TFT colorful LCD module all viewing angle IPS panel

Item Portrait 8.0inch 800×1280 TFT LCD module
Model No. PV08017H0140T
Resolution 800*1280

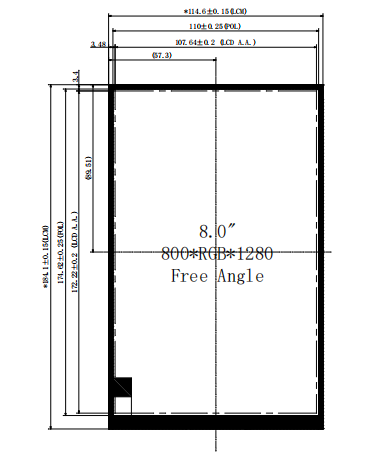

Outline Dimension (mm) 114.6*184.1*2.45
Active Area (mm) 107.64*172.22
Viewing Angle All,IPS technology
Brightness 600nits
Interface LVDS
Backlight /
Driving IC EK79029
PIN No. 40
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Resistive touch and capacitive touch for optional
Application Industrial, Medical, POS, ATM, Camera, Access Control device, Elevator

For product pricing,customization,or other inquiries:

Share to:

  1. 8 inch IPS LCD
  2. 800x1280dots
  3. LVDS interface 40pins
  4. Capacitive Touch or resistive touch optional

Kingtech 8 inch TFT colorful LCD module all viewing angle IPS panel

800x1280 8 inch IPS LCD display

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
