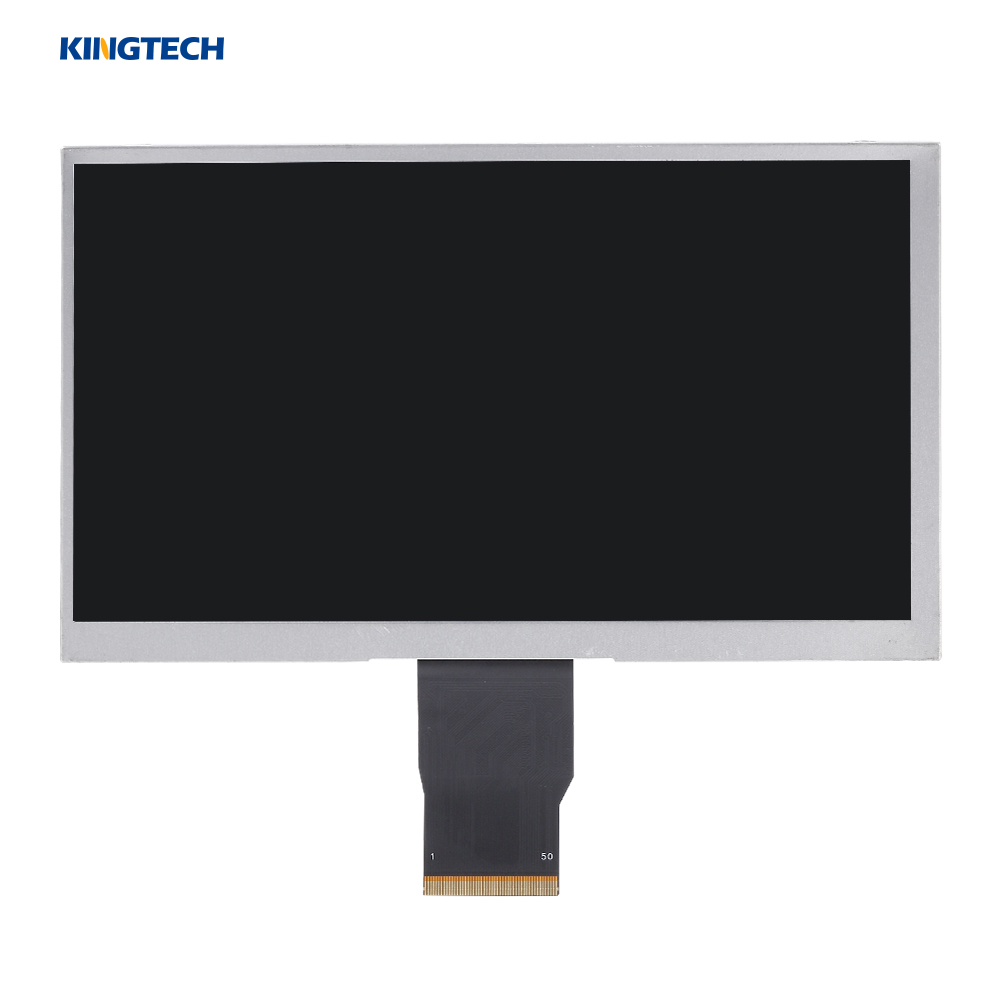

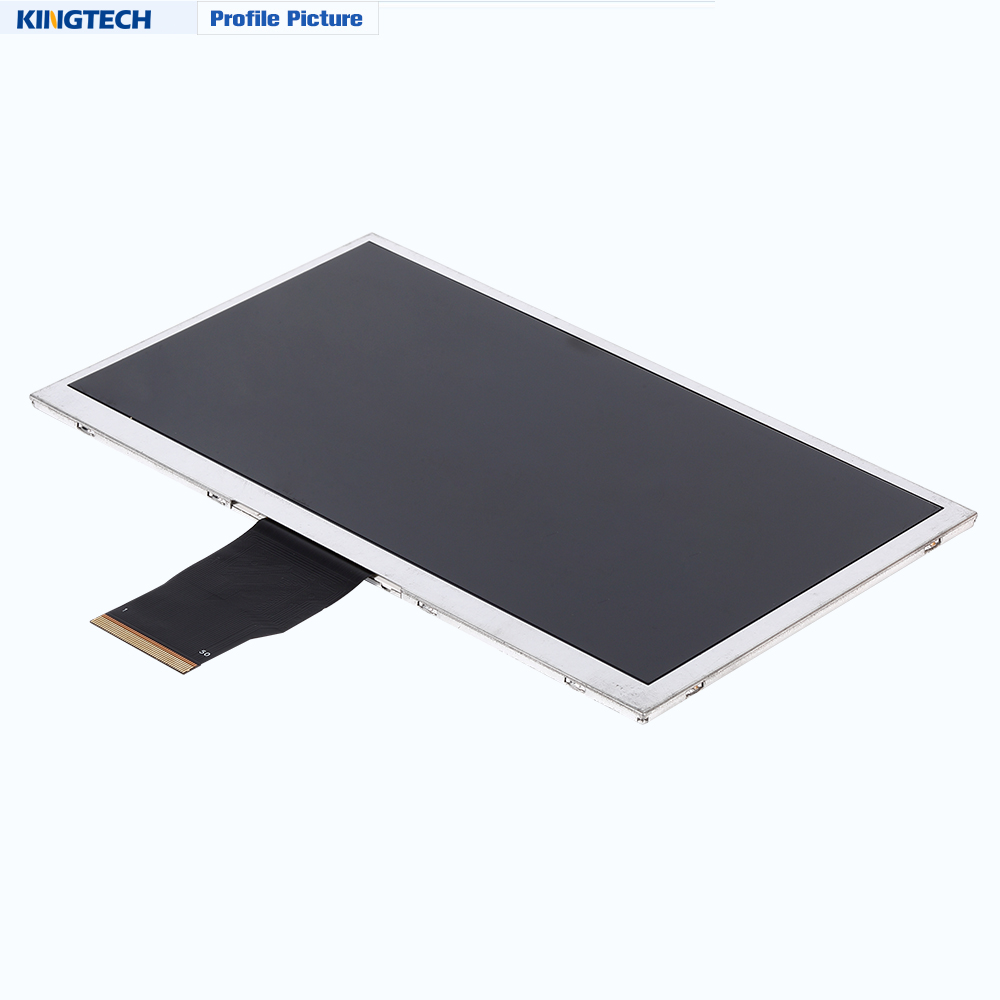

Kingtech ultra wide temperature 7.0 inch LCD module IPS TFT LCD

ItemUltra Wide temp 7.0 inch  1024×600 high brightness LCD module
Model No.PV07071H0550Y
Resolution1024*600

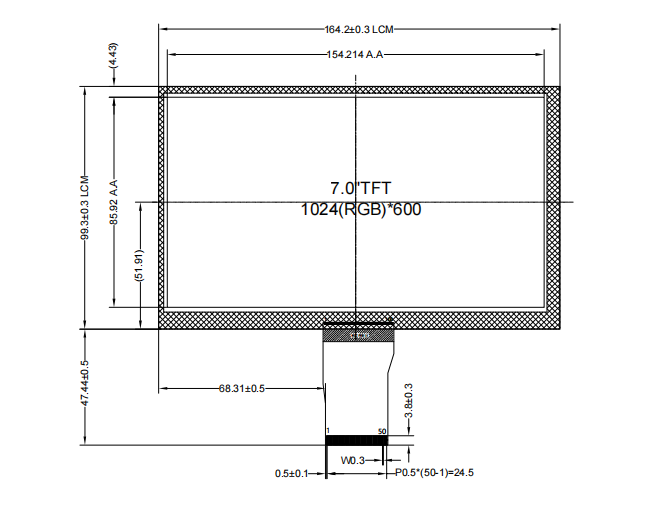

Outline Dimension (mm)164.2*99.3*5.3
Active Area (mm)154.214*85.92
Viewing AngleAll
Brightness1000nits
InterfaceRGB Interface
Backlight3*10LED
Driving ICEK79001+EK73215
PIN No.50
Operating Temperature-30~85C
Storage Temperature-30~85C
Touch screenResistive touch and capacitive touch optional
ApplicationOutdoor application, Surveillance video, Transportation Camera, Automotive, Advertising, E-bIke, Ship, Medical, Industrial device.

For product pricing,customization,or other inquiries:

Share to:

  1. Ultra Wide temperature LCD, -30~+85C
  2. High brightness 1000nits,Sunlight readable, Outdoor
  3. 7inch 1024×600 standard configuration
  4. RGB , TTL, Digital interface
  5. Full/All/Free/Wide/IPS Viewing angle
  6. Designed for outdoor application

wide temperature 7.0 inch LCD module IPS TFT LCD

wide temperature 7.0 inch LCD module IPS TFT LCD
