Kingtech wide temperature 8.4 inch LCD module IPS TFT LCD

Item8.4 inch 1024×768 IPS LCD module

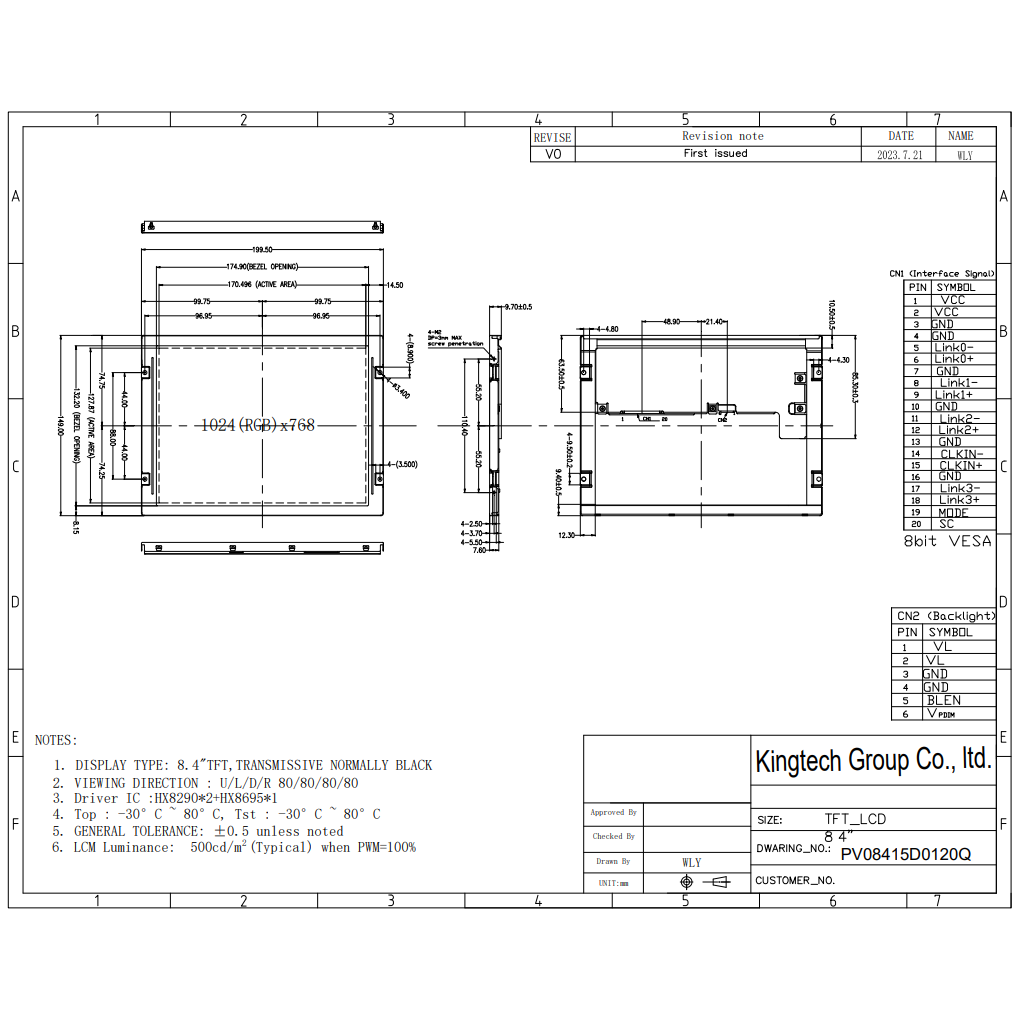

Model No.PV08415D0120Q
Resolution1024*768

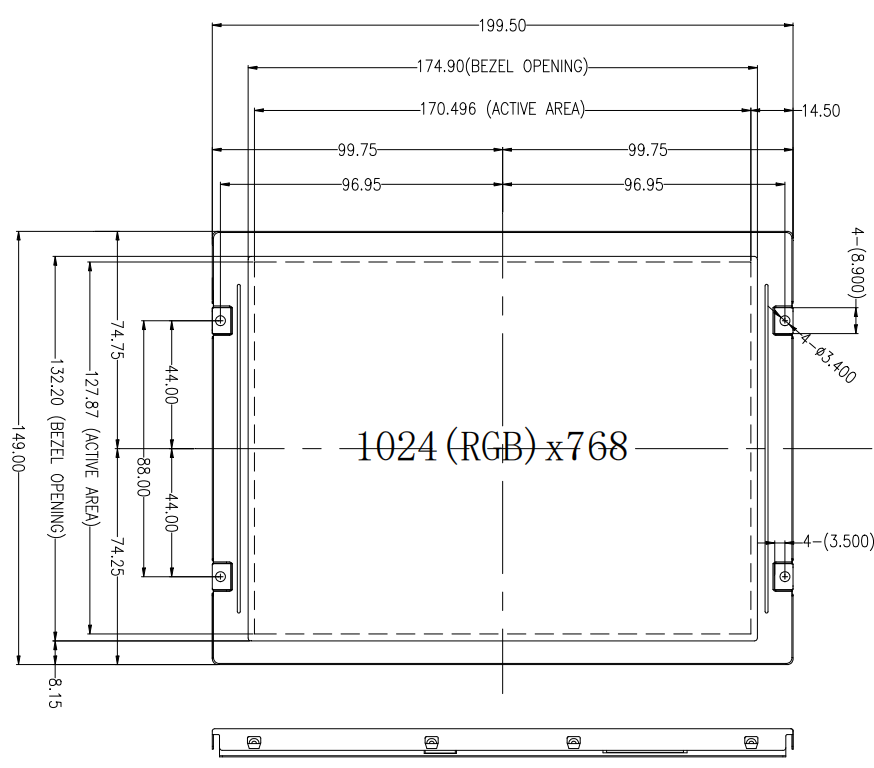

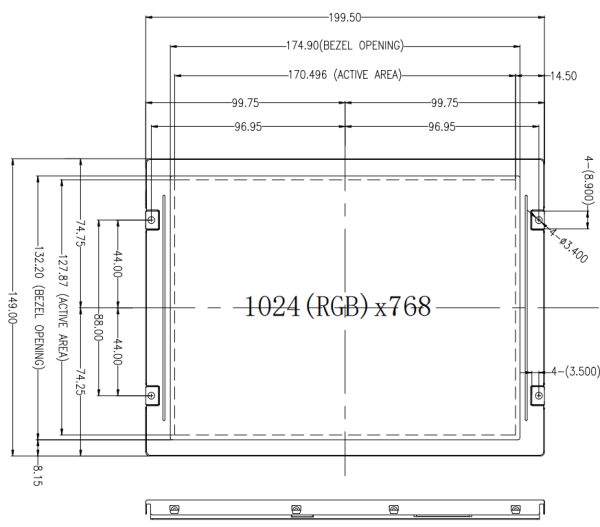

Outline Dimension (mm)199.50*149.00*9.7
Active Area (mm)170.49*127.87
Viewing AngleAll
Brightness500nits
Interface8bit LVDS
Backlight/
Driving ICHX8290*2+HX8695*1
PIN No.20
Operating Temperature-30~80C
Storage Temperature-30~80C
Touch screenResistive touch and capacitive touch optional
ApplicationOutdoor application, Surveillance video, Transportation Camera, Automotive.

For product pricing,customization,or other inquiries:

Share to:

  1. Wide working temperature, -30-80C
  2. Special Size-8.4inch
  3. Landscape, Horizontal
  4. LVDS interface
  5. Full/All/Free/Wide/IPS Viewing angle
  6. Designed for harsh environment
  7. High reliable
  8. Life-time 20000h
