50 pin 1000 nits 5 fwvga 5 inch tft touch display

Item Lanscape 5 inch IPS 800*480 display
Model NoPV05007HZ50J
Resolution 800×480
Outline Dimension 121*77.8*6.7 MM
Active Area(mm)108*64.8
Interface 24BIT RGB
Viewing AngleAll
Driving IC ST7262
Display Mode TFT/TRANSMISSIVE
Operating Temperature ‘-30°C ~ +80°C
Storage Temperature ‘-35°C ~ +85°C
Brightness1000nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

Sunlight readable 5 inch 800×480 resolution RGB interface IPS tft lcd display
1.PV05007HZ50J mainly application for outdoor device ,Industrial ,medical equipment .
2.It with 800×480 resolution ,1000nits brightness ,RGB interface ,ST7262 driver IC
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product and with wide work temperature feature  , the good quality well use for Electric motorcycles and e-bikes.

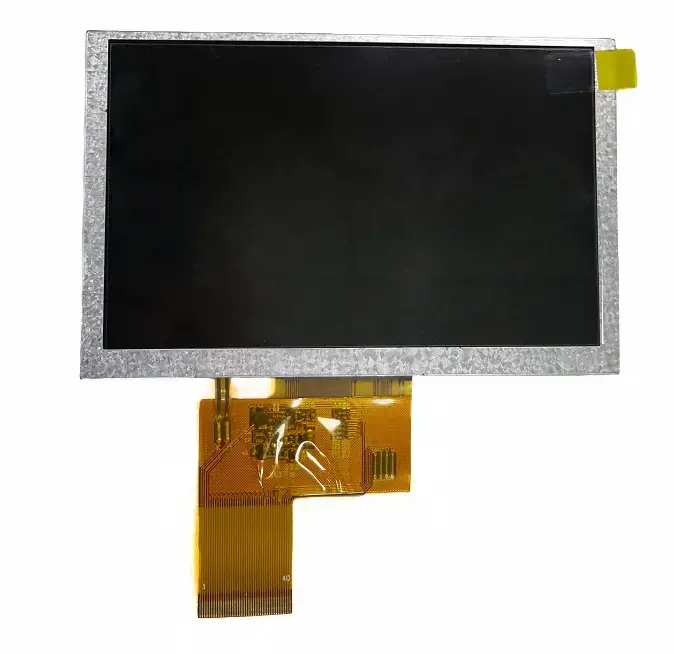

Lanscape 5 inch IPS 800*480 display Front View

Lanscape 5 inch IPS 800*480 display

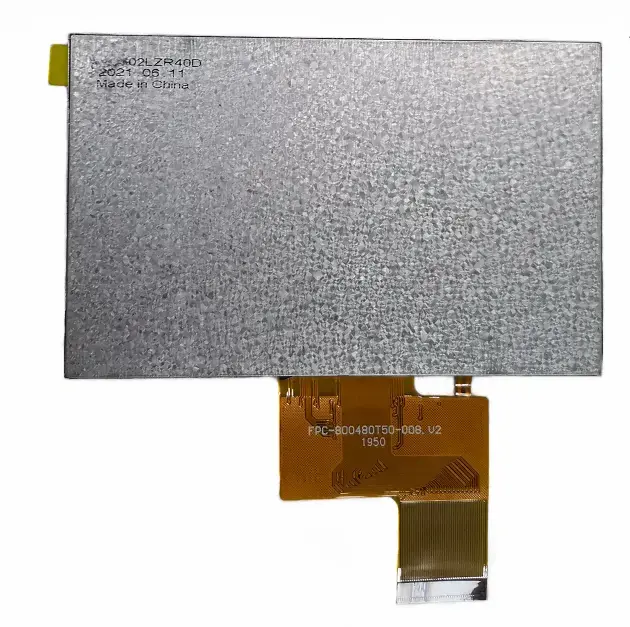

Lanscape 5 inch IPS 800*480 display Back View

Lanscape 5 inch IPS 800*480 display

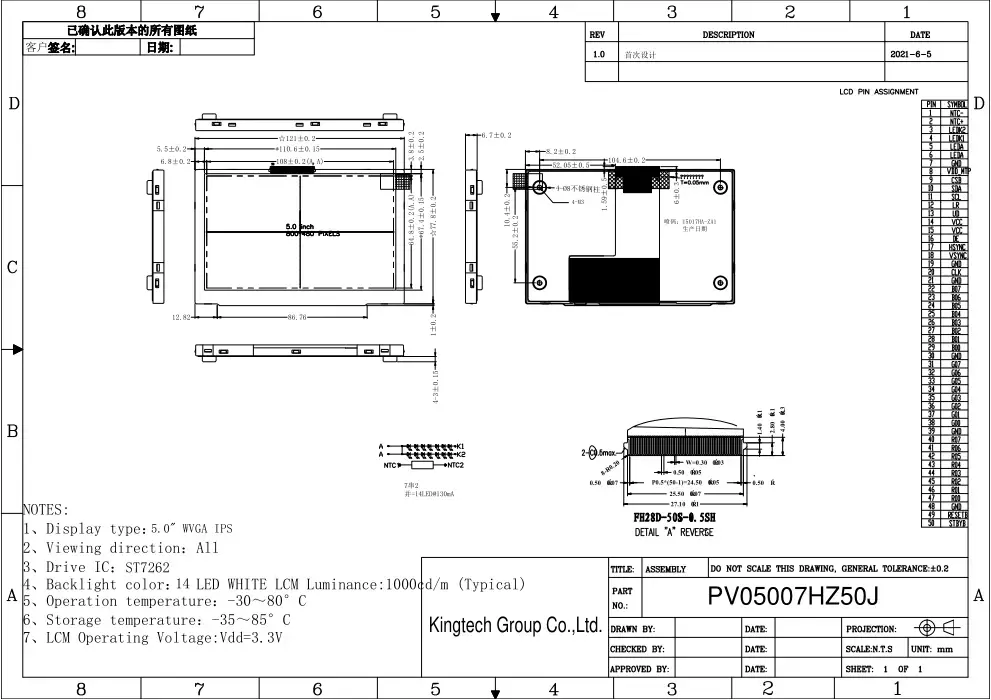

Lanscape 5 inch IPS 800*480 display Machine Drawing

Lanscape 5 inch IPS 800*480 display
